2005 SR1005EFM-NTF

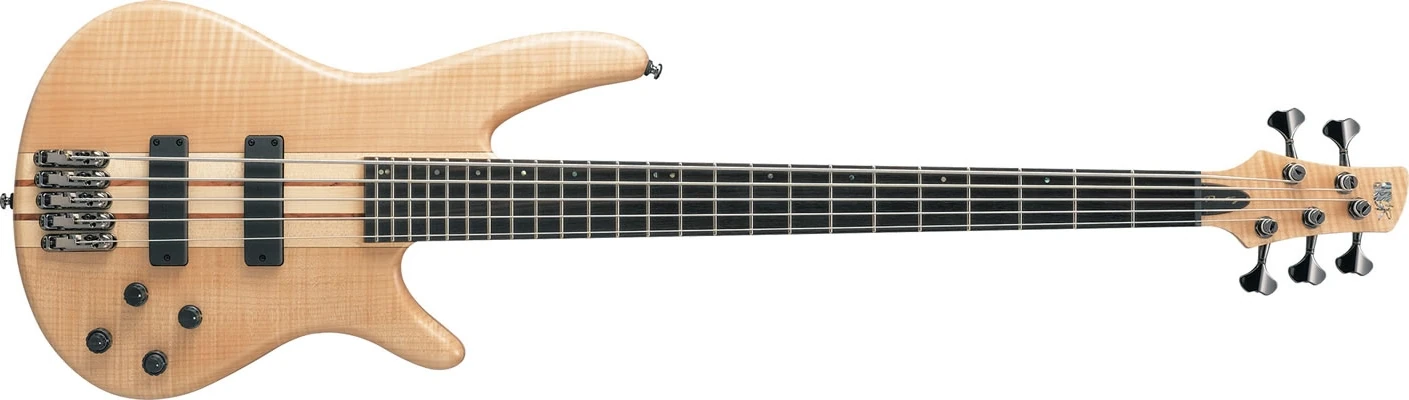

SR1005EFM Natural Flat (more images) Red copyright sprite

The SR1005EFM is a five string Soundgear series solid body electric bass model introduced by Ibanez for 2005. It was made in South Korea by Cor-Tek as part of the upscale Prestige line.

The SR1005EFM features neck-through-body construction on maple wings body with flamed maple top attached to a maple and bubinga neck with a 24-fret rosewood fingerboard with off-set dots position markers and a matching headstock. Components include a pair of Bartolini® Custom (passive) pickup's on the neck and bridge positions, a MR-4 fixed bridge with 10.8mm string spacing, a Vari-Mid III HQ 3-band EQ, a Graphtech Black TUSQ XL nut, Gotoh machine heads and cosmo black hardware.

The SR1000EFM and SR1006EFM are similar four and six string models. The SR1005EWN is a related model with walnut and mahogany wings body.

The SR1005EFM was discontinued after 2008.

Specifications[]

Related content: Prestige series | Soundgear series | Models-icon
Specifications for SR1005EFM
Model name: SR1005EFM
Year(s) offered: 2005-2008
Sold in: Asia & South America 2006-2007 / Europe 2006-2008 / North America 2006-2008 / USA
Made in: South Korea
Finish(es): Antique Violin Flat (ANF)2008 USA only / Natural Flat (NTF)
Body
Body type:
Solid body
Body material:
Maple wings w/ flamed maple top
Neck joint:
Neck-thru
Bridge:
Mono-rail IV fixed (16.5mm string spacing)
Knob style:
2005: Knurled metal dome (cosmo black)
2006-2008: Plastic black
Hardware color:
Cosmo black
Neck
Neck type:
SR5
Neck material:
5-piece maple/ bubinga
Scale length:
864mm / 34"
Fingerboard material:
Rosewood
Fingerboard inlays:
Off-set dot
Frets:
24 / medium
Nut:
GraphTech Black TUSQ XL (45mm)
Machine heads:
Gotoh
Electronics/ Strings
Pickup configuration:
HH
Bridge pickup:
Bartolini® Custom (bridge) passive
Neck pickup:
Bartolini® Custom (neck) passive
Electronics:
2005-2008: Vari-Mid III HQ 3-band EQ
2005: Vari-Mid Hi Fi 3-Band EQ (US market only)
Controls:
Volume, balance, treble boost/cut, bass boost/cut, mid range boost/cut, mid range frequency
Battery:
9V
Output jack:
¼" stereo barrel (angled face mount)
String gauge (factory):
.045/.065/.085/.105/.130
Factory tuning:
1G,2D,3A,4E,5B (E Standard)

Images[]

Other finishes and details

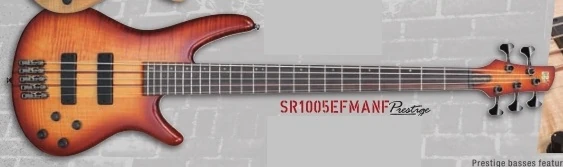

2008 SR1005EFM-ANF
Antique Violin Flat (2008 USA only)

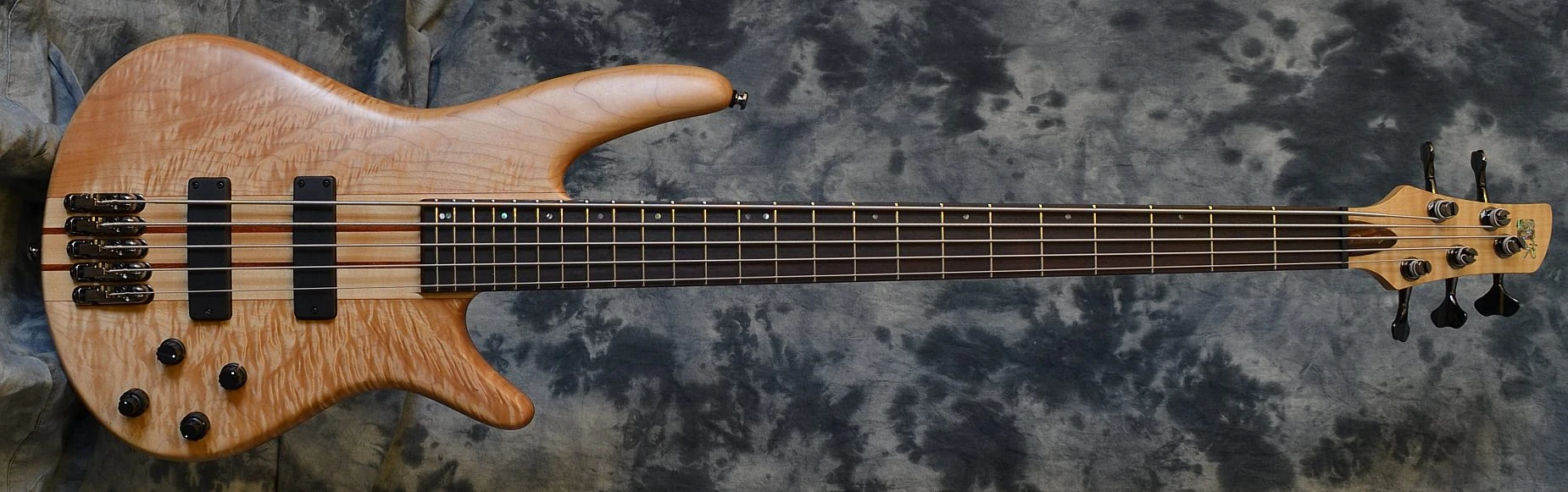

2006 SR1005EFM-NTF
Natural Flat (2006-2008)

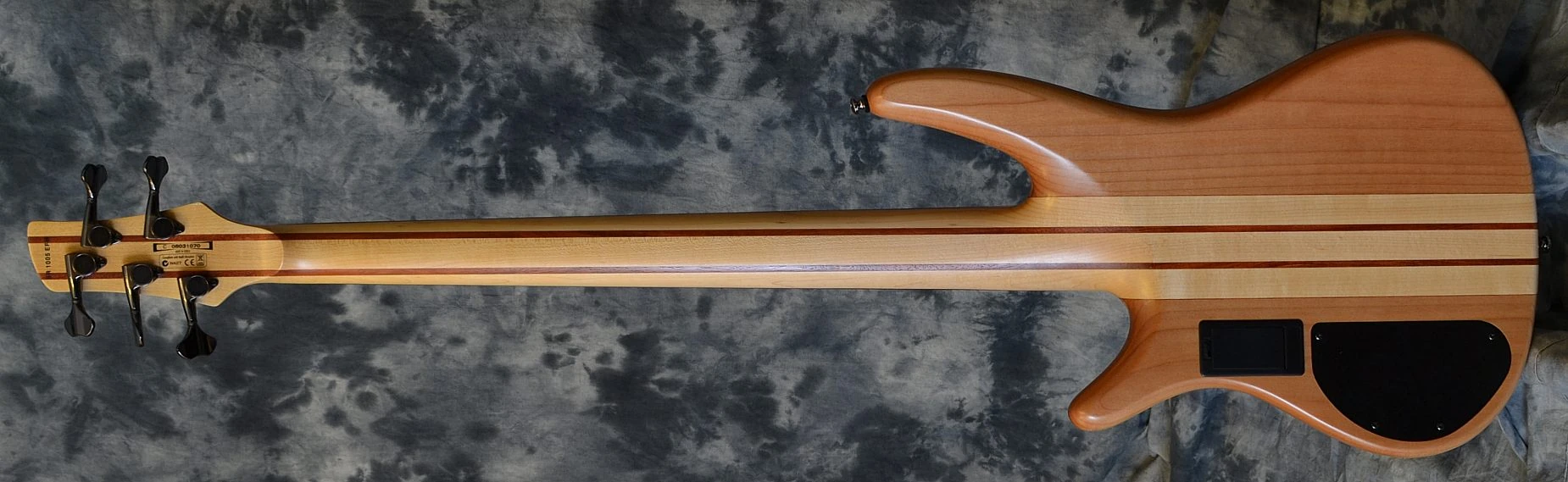

SR1005EFM-NTF back
Rear of body
Contol layout Vari-Mid III HQ
Controls layout
Vari-Mid III HQ freq resp chart
Frequency response chart
