The SR1000EZW is a limited edition Soundgear series solid body electric bass model introduced by Ibanez for 2005. It was produced in South Korea as part of the upscale Prestige line. It is a spot model which doesn't appear in any catalog.

The SR1000EZW features neck-through-body construction with a zebrawood top on mahogany body wings attached to a maple and bubinga neck, with a 24-fret rosewood fingerboard with wood diamond position markers, a special Scroll inlay at 12th fret, and a matching headstock. Components include a pair of USA Bartolini custom pickups, a Mono-Rail IV bridge, gold hardware and Gotoh machine heads. Controls consist of a balancer, a single volume, treble boost/cut, bass boost/cut, mid-range boost/cut, mid-range frequency control and a Vari-Mid III Hi-Fi 3-Band system equalizer.

The SR1000EBG is a similar model with a bubinga top.

The SR1000EZW was discontinued after one year of production.

Specifications[]

Related content: Prestige series | Soundgear series | Models-icon
Specifications for SR1000EZW
Model name: SR1000EZW
Year(s) offered: 2005
Made in: South Korea
Finish(es): Natural Flat (NTF)
Body
Body type:
Solid body
Body material:
Mahogany wings w/ zebrawood top
Neck joint:
Neck-thru Prestige
Bridge:
Mono-Rail IV (19mm string spacing)
Knob style:
2 knurled, 2 knurled concentric "Metal" (Gold)
Hardware color:
Gold
Neck
Neck type:
SR4
Neck material:
5-piece maple/ bubinga
Scale length:
864mm / 34"
Fingerboard material:
Rosewood
Fingerboard inlays:
Wood diamonds
12th fret: Scroll
Frets:
24 / medium
Nut:
Black plastic (43mm)
Machine heads:
Gotoh
Electronics/ Strings
Bridge pickup:
USA Bartolini custom
Neck pickup:
USA Bartolini custom
Electronics:
Vari-Mid III HQ 3-band
Controls:
Volume, Balance, Treble boost/cut, Bass boost/cut, Mid boost/cut, midrange freq
Output jack:
¼" mono (side mounted)
Factory tuning:
1G,2D,3A,4E (E standard)

Images[]

Additional details

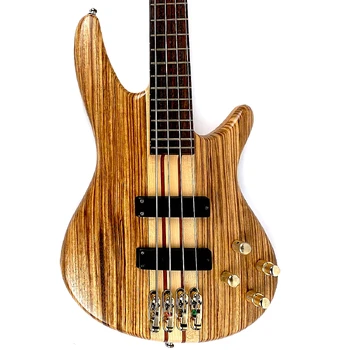

SR1000EZW front
Front of body

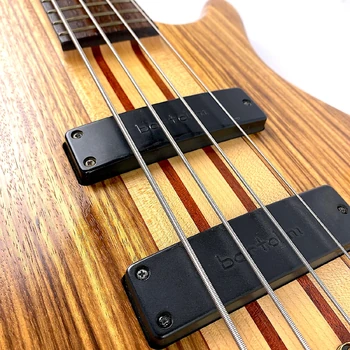

SR1000EZW PU
Bartolini pickups

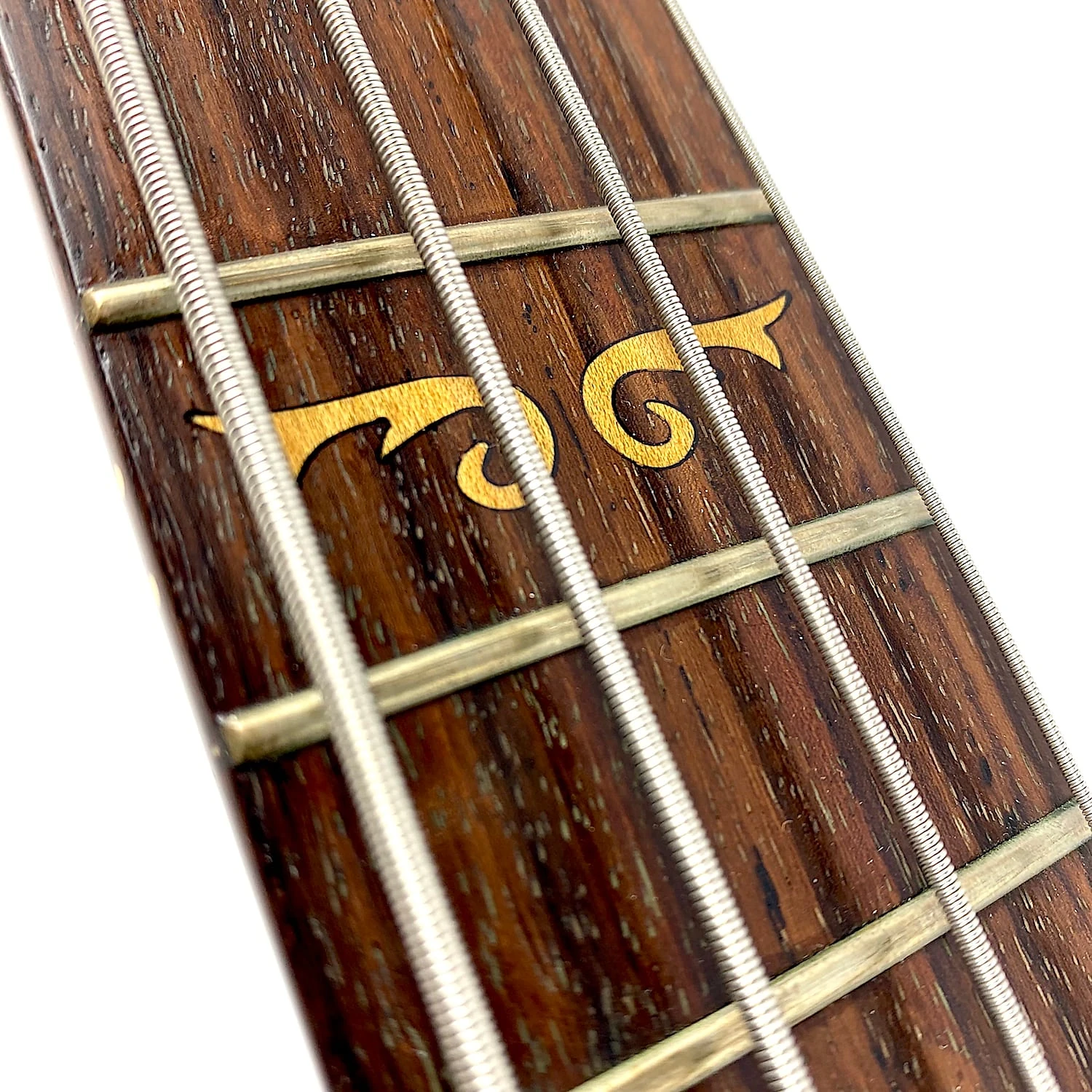

SR1000EZW inlay
12th fret: Scroll

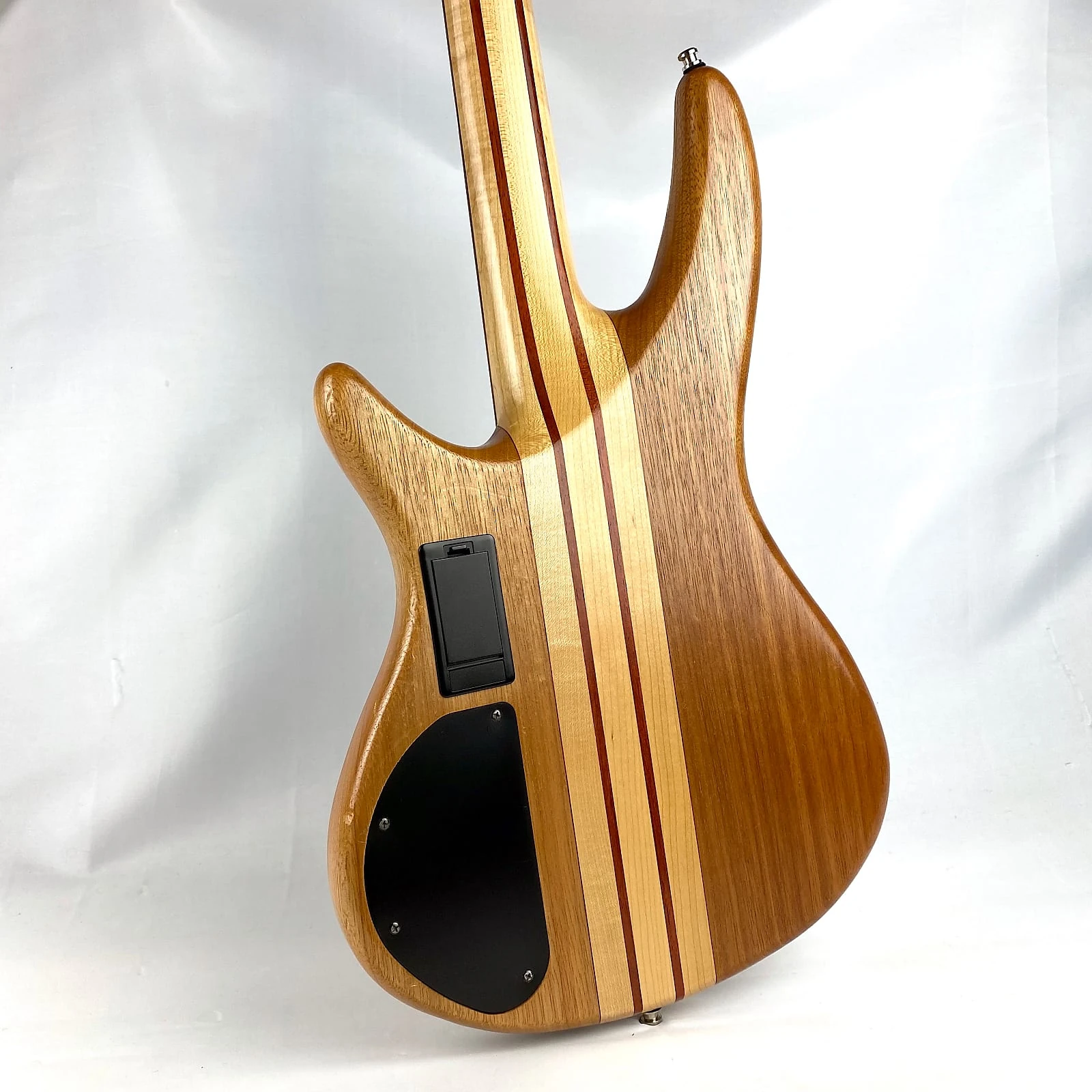

SR1000EZW rear
Rear of body

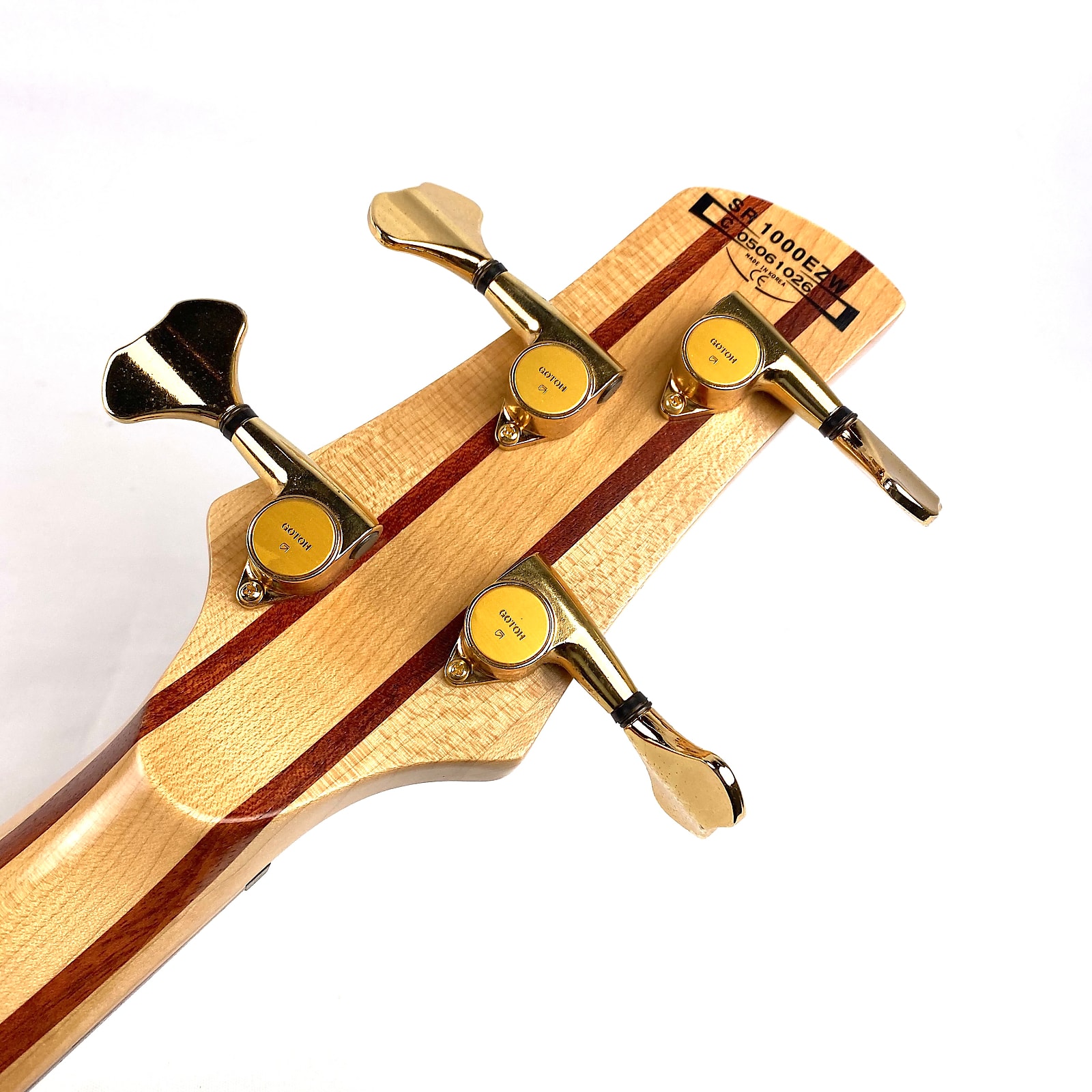

SR1000EZW tuners
Gotoh tuners

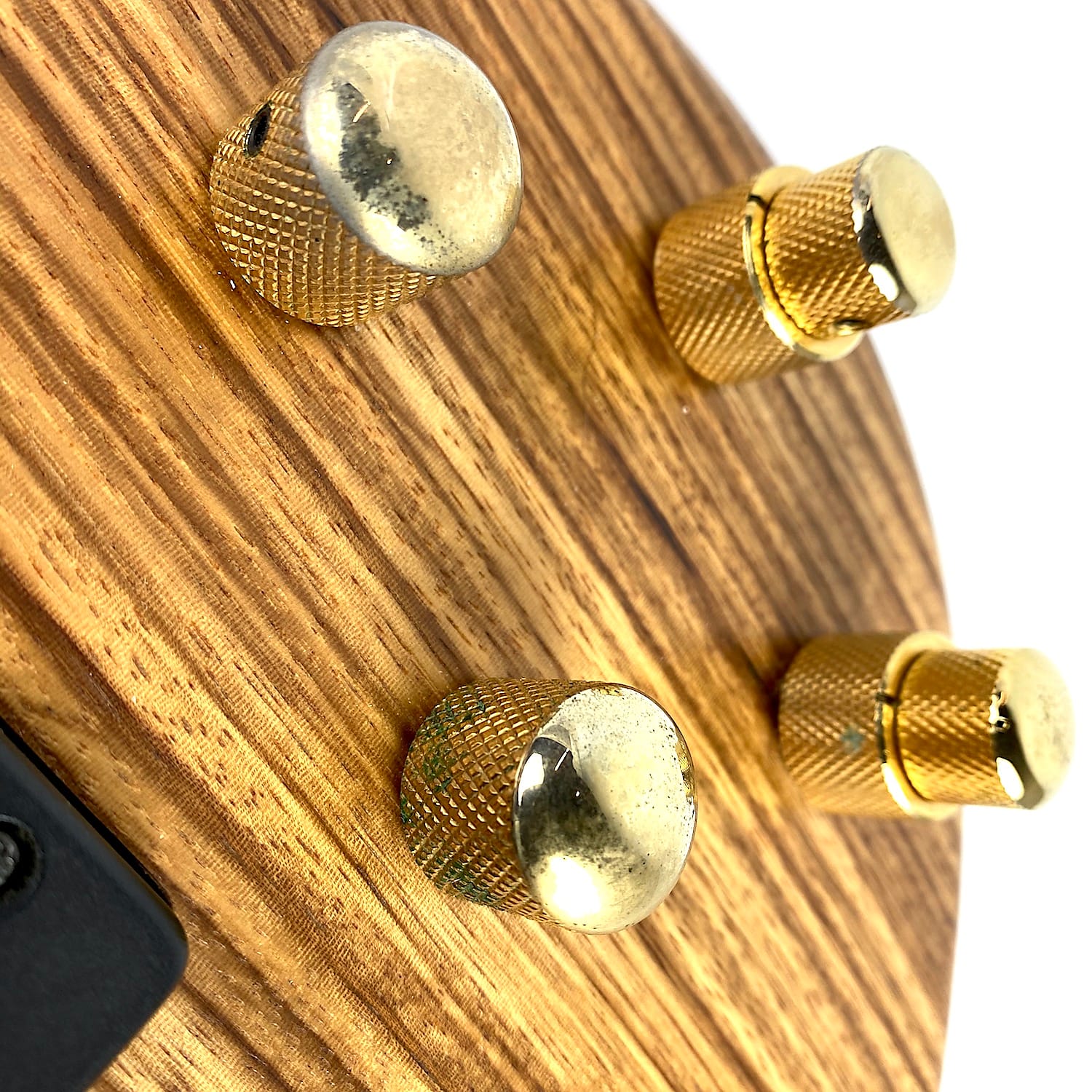

SR1000EZW knobs
Knurled concentric knobs
Vari-Mid III HQ 3-Band
Control layout
Contol layout Vari-Mid III HQ
Controls layout
Vari-Mid III HQ freq resp chart
Frequency response chart
