SR1000EWN NTF (2005)

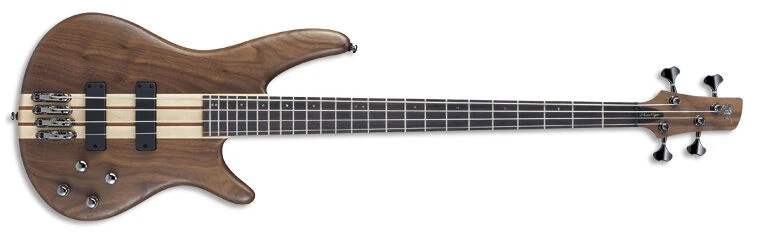

SR1000EWN Natural Flat (more images) Red copyright sprite

The SR1000EWN is a Soundgear series solid body electric bass model introduced by Ibanez for 2005. It was produced in South Korea as part of the upscale Prestige line.

The SR1000EWN features neck-through-body construction with a walnut top on mahogany wings attached to a maple and bubinga neck with a 24-fret rosewood fingerboard with offset abalone dot position markers. The headstock features a veneer to match the body. Components include a pair of Bartolini custom pickups, a Mono-Rail IV bridge, cosmo black hardware and Gotoh machine heads. Controls consist of one balancer, one volume, treble boost/cut, bass boost/cut, mid range boost/cut, mid range freq and Vari-Mid III Hi-Fi 3-Band system equalizer.

The SR1005EWN and SR1006EWN are five-string and six-string versions. The SR1000EFM, SR1000EBG and SR1000EZW are a similar models with, respectively, flamed maple, bubinga and zebra wood tops.

The SR1000EWN was discontinued after 2008.

Specifications[]

Related content: Prestige series | Soundgear series | Models-icon
Specifications for SR1000EWN
Model name: SR1000EWN
Year(s) offered: 2005–2008
Sold in: Americas & Oceania / Asia & Africa / China / Europe / Japan / USA
Made in: South Korea
Price: MSRP: JP¥ 165,000 (2005) / JP¥ 175,000 (2006) / JP¥ 185,000 (2007)
Finish(es): Natural Flat (NTF)
Body
Body type:
Solid body
Body material:
Mahogany wings w/ walnut top
Neck joint:
Neck-thru Prestige
Bridge:
Mono-Rail IV (19mm string spacing)
Knob style:
2005: 2 Knurled, 2 knurled concentric "Metal" (Cosmo black)
2006-2007: 2 Knurled,2 knurled concentric "Plastic" (Black)
Hardware color:
Cosmo black
Neck
Neck type:
SR4
Neck material:
5-piece maple/ bubinga
Scale length:
864mm / 34"
Fingerboard material:
Rosewood
Fingerboard inlays:
Abalone offset dot
Frets:
24 / medium Stainless steel
Nut:
Black plastic (43mm)
Machine heads:
Gotoh
Electronics/ Strings
Bridge pickup:
Bartolini custom
Neck pickup:
Bartolini custom
Electronics:
2005: Vari-Mid III Hi-Fi 3-band
2006-2007: Vari-Mid III HQ 3-band
Controls:
2 knobs, 2 concentric : volume, balance, treble boost/cut, bass boost/cut, mid range boost/cut, mid range freq
Output jack:
¼" stereo barrel (angled face mount)
Factory tuning:
1G,2D,3A,4E (E standard)

Images[]

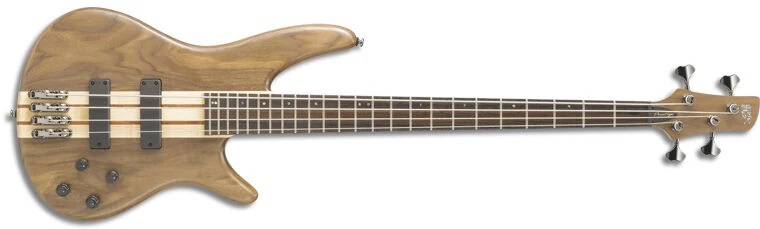

SR1000EWN NTF (2006)
2006 Ibanez SR1000EWN Natural Flat Red copyright sprite
Additional details
Contol layout Vari-Mid III HQ
Controls layout
Vari-Mid III HQ freq resp chart
Frequency response chart
