SR1000EFM NTF (2005)

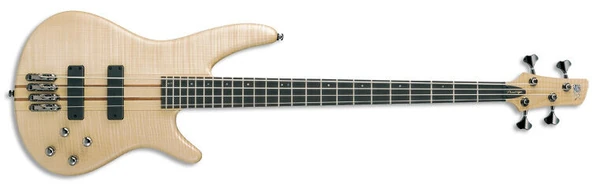

SR1000EFM Natural Flat "2005" (more images) Red copyright sprite

The SR1000EFM is a Soundgear series solid body electric bass model introduced by Ibanez for 2005. It was produced in South Korea as part of the upscale Prestige line.

The SR1000EFM features neck-through-body construction with with a flame maple top on maple wings attached to a maple and bubinga neck with a 24-fret rosewood fingerboard with offset abalone dot position markers and a matching headstock. Components include a pair of USA Bartolini custom pickups, independent Mono-Rail IV bridges, a Vari-Mid III HQ 3-band equalizer, cosmo black hardware, and Gotoh tuning machines. Controls consist of a balancer, a volume, stacked treble boost/cut and bass boost/cut, and stacked mid range boost/cut and mid range frequency selector.

The SR1005EFM and SR1006EFM are five-string and six-string versions. The SR1000EWN, SR1000EBG and SR1000EZW are a similar models with, respectively, walnut, bubinga and zebra wood tops.

The SR1000EFM was discontinued after 2008.

Specifications[]

Related content: Prestige series | Soundgear series | Models-icon
Specifications for SR1000EFM
Model name: SR1000EFM
Year(s) offered: 2005–2008
Sold in: Americas & Oceania / Asia & Africa / China / Europe / USA
Made in: South Korea
Finish(es): Blue Moon Flat (BLF) 2008 / Natural Flat (NTF)
Body
Body type:
Solid body
Body material:
Maple wings w/ flame maple top
Neck joint:
Neck-thru
Bridge:
Mono-rail IV (19mm string spacing)
Knob style:
2005: Two knurled metal dome, two concentric knurled metal
2006–2008: Two B20 plastic, two concentric B15 plastic (black)
Hardware color:
Cosmo black
Neck
Neck type:
SR4 neck-thru
Neck material:
5-piece maple/ bubinga
Scale length:
864mm / 34"
Fingerboard material:
Rosewood
Fingerboard inlays:
Abalone offset dot
Frets:
24 / medium nickel silver
Nut:
Black plastic (43mm)
Machine heads:
Gotoh GB707
Electronics/ Strings
Bridge pickup:
Bartolini Custom bridge soapbar (H) passive
Neck pickup:
Bartolini Custom neck soapbar (H) passive
Electronics:
Vari-Mid III HQ 3-band
Controls:
Volume / balance / 3-band EQ (treble, mid, & bass boost/cut) / Mid-frequency selector
Battery:
9V
Output jack:
¼" stereo barrel (angled face mount)
String gauge (factory):
Elixir
Factory tuning:
1G,2D,3A,4E (E standard)

Images[]

Other finishes

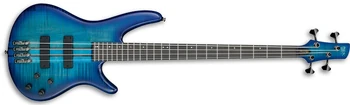

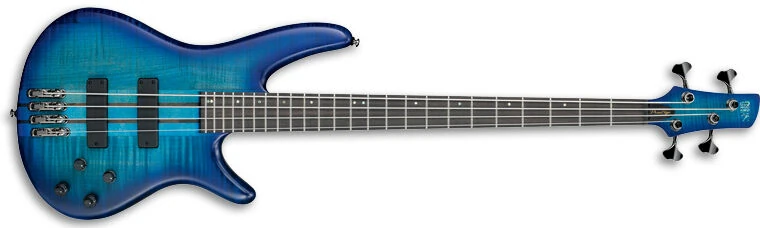

SR1000EFM BLF
Blue Moon Flat

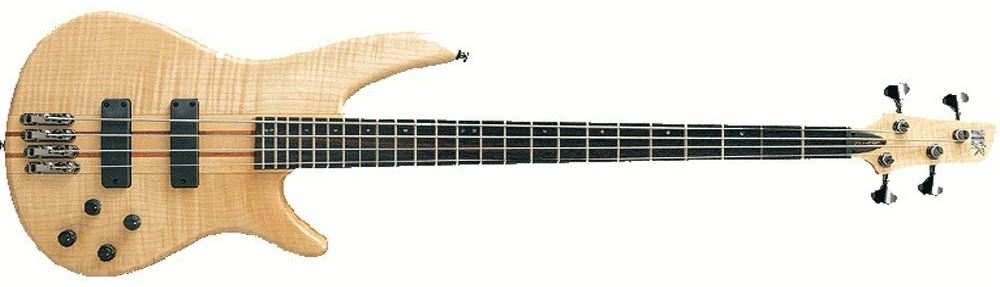

SR1000EFM-NTF
Natrural Flat (2006-2008)
Additional details
Contol layout Vari-Mid III HQ
Controls layout
Vari-Mid III HQ freq resp chart
Frequency response
