SR1000EBG (2006)

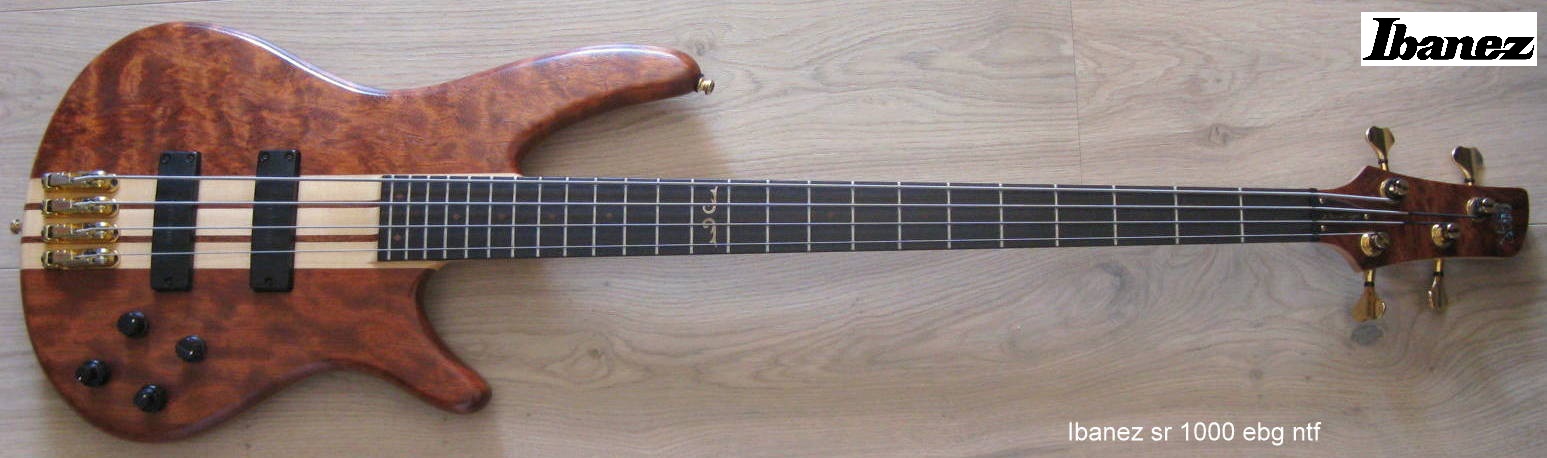

SR1000EBG Natural Flat (with Black knobs) Red copyright sprite

The SR1000EBG is a limited edition Soundgear series solid body electric bass model introduced by Ibanez for 2006. It was produced in South Korea as part of the upscale Prestige line.

The SR1000EBG features neck-through-body construction with a bubinga top on mahogany wings attached to a maple and bubinga neck with a 24-fret rosewood fingerboard with wood diamonds position markers with a special scroll inlay at 12th fret. The headstock has a veneer to match the top. Components include a pair of USA Bartolini custom pickups, a Mono-Rail IV bridge, gold hardware and Gotoh machine heads. Controls consist of a balancer, one volume, a treble boost/cut, a bass boost/cut, a midrange boost/cut, a midrange frequency control and a Vari-Mid III Hi-Fi 3-band system equalizer.

The SR1000EFM, SR1000EWN and SR1000EZW are a similar models with, respectively, flamed maple, walnut, and zebra wood tops.

The SR1000EBG was discontinued after one year of production.

Specifications[]

Related content: Prestige series | Soundgear series | Models-icon
Specifications for SR1000EBG
Model name: SR1000EBG
Year(s) offered: 2006
Made in: South Korea
Finish(es): Natural Flat (NTF)
Body
Body type:
Solid body
Body material:
Mahogany wings w/ bubinga top
Neck joint:
Neck-thru
Bridge:
Mono-Rail IV (19mm string spacing)
Knob style:
2 Knurled, 2 knurled concentric "Metal" (Gold)
Hardware color:
Gold
Neck
Neck type:
SR4
Neck material:
5-piece maple/ bubinga
Scale length:
864mm / 34"
Fingerboard material:
Rosewood
Fingerboard inlays:
Wood diamonds
12th fret: Scroll
Frets:
24 / medium
Nut:
Black plastic (43mm)
Machine heads:
Gotoh GB707
Electronics/ Strings
Bridge pickup:
Bartolini custom
Neck pickup:
Bartolini custom
Electronics:
Vari-Mid III Hi-Fi 3-Band
Controls:
Volume, Balance, Treble boost/cut, Bass boost/cut, Mid boost/cut, midrange freq
Output jack:
¼" stereo barrel (angled top mount)
Factory tuning:
1G,2D,3A,4E (E standard)

Images[]

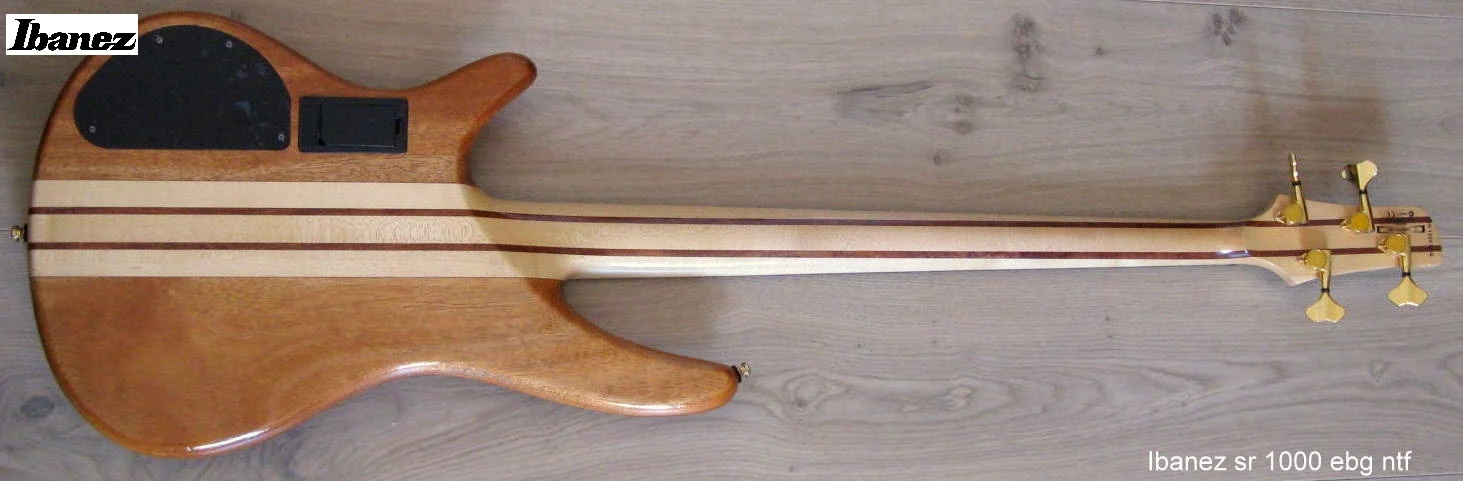

SR1000EBG (2006) rear
2006 Ibanez SR1000EGB ( Rear: Neck-through-body construction with mahogany body wings attached to a 5 piece maple/bubinga neck and Gotoh machine heads ) Red copyright sprite
Additional details
Vari-Mid III HQ 3-Band
Control layout
Contol layout Vari-Mid III HQ
Controls layout
Vari-Mid III HQ freq resp chart
Frequency response chart
