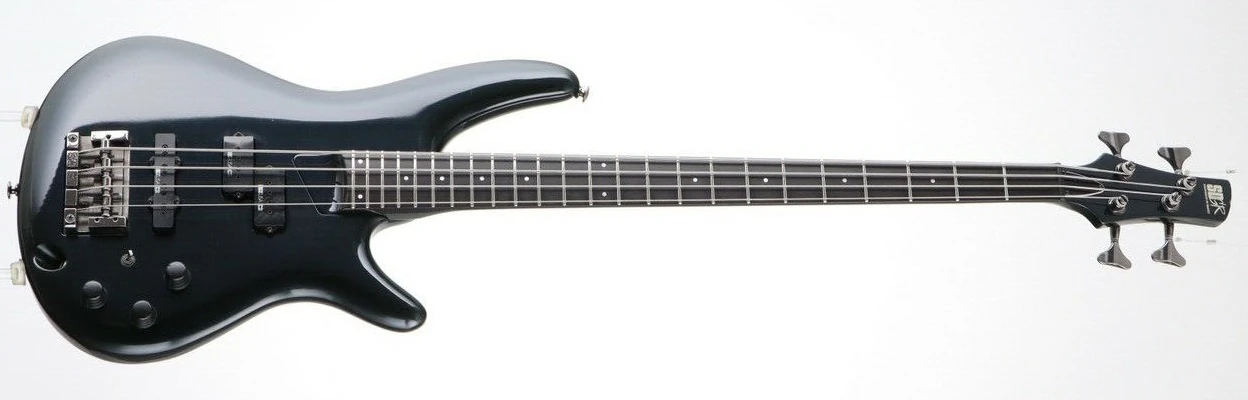

SR1000E BK (1991)
SR1000E Black (more images) Red copyright sprite

The SR1000E is a Soundgear series solid body electric bass model introduced by Ibanez for 1987 (first year of production of SR Series). It was produced in Japan by FujiGen.

The SR1000E features an alder body bolted to a super slim maple neck with the typical "lip" at the end of the neck, an ebony 24 frets fingerboard with pearl dot position markers and elegant curvy body. Passive pickups built by DiMarzio for Ibanez USA, as well as the active Power Curve electronics with two differently strong boosts and a control for the processed frequency ensured the good sound on the amp. Gotoh supplied the high-quality hardware.

Between 1987 and 1990 eleven finishes were made four of those: The Cherry Ice (CI), Fountain Blue (FB), Jewel Red (JR) and Pearl (PL) were made exclusively for the US market. One of those The Crystal Pearl (CP) made exclusively for Japan and the Coral Mist Metallic (CM) was made exclusively for Europe.

The SR1100E is a related model with Sen or Ash body. The SR1000CT1 is a related model with a Figured maple and figured mahogany body.

The SR1000E was discontinued after 1990.

Specifications[]

Related content: Soundgear series | Models-icon
Specifications for SR1000E
Model name: SR1000E
Year(s) offered: 1987-1990
Sold in: USA 1987–1989 / Japan 1989–1990 / Europe 1990
Made in: Japan
Price: MSRP: JP¥ 95.000 (1989) / JP¥ 85.000 (1990)
Finish(es): Black (BK) 1987–1989 USA , 1990 Japan , 1990 Europe / Black Pearl (BP) ''1988 USA , 1990 Europe / Cherry Ice (CI) 1988 USA / Coral Mist Metallic (CM) 1990 Europe / Crystal Pearl (CP) 1988–1990 Japan / Dark Blue (DB) 1987 USA , 1988–1990 Japan , 1990 Europe / Fountain Blue (FB) 1988–1989 USA / Jewel Red (JR) 1989 USA / Lazer Blue (LB) 1988–1989 USA , 1990 Europe / Pearl (PL) 1987 USA / Purple Neon (PN) 1988–1989 USA , 1990 Europe
Body
Body type:
Solid body
Body material:
1987: Alder
1988–1989: Light Ash
1990: Ash
Neck joint:
AANJ
Bridge:
1987-1990: Omni-adjust fixed
Knob style:
1987: Knurled metal dome (Gold) "USA"
1988–1990: Rubber knobs (Cosmo black)
Hardware color:
1987: Gold
1988–1990: Cosmo black
Neck
Neck type:
SR4
Neck material:
3-piece maple painted
Scale length:
864mm / 34"
Fingerboard material:
Ebony
Fingerboard inlays:
Pearl dot
Frets:
24 / medium stainless steel
Nut:
Black plastic (43mm)
Machine heads:
Gotoh
Electronics/ Strings
Bridge pickup:
DiMarzio IBZ/USA C2 J
Neck pickup:
DiMarzio IBZ/USA C2 P
Electronics:
Power curve system
Controls:
Volume / Balancer / Frequency control / EQ Deep selector switch
Output jack:
¼" stereo (side mounted)
Factory tuning:
1G,2D,3A,4E (E standard)

Images[]

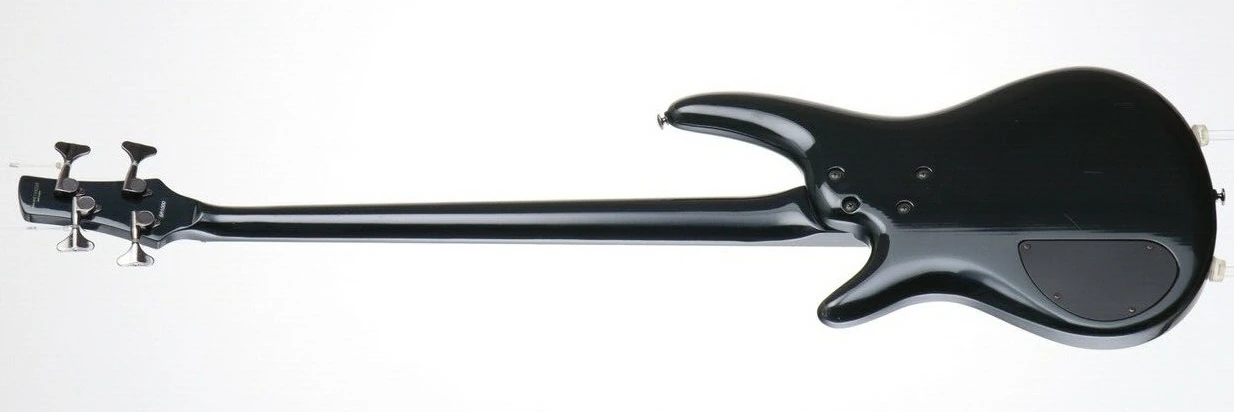

SR1000E Rear
Ibanez SR1000E BK ( Rear: Ash body bolted to a 3-piece maple SR4 neck and Gotoh machine heads ) Red copyright sprite

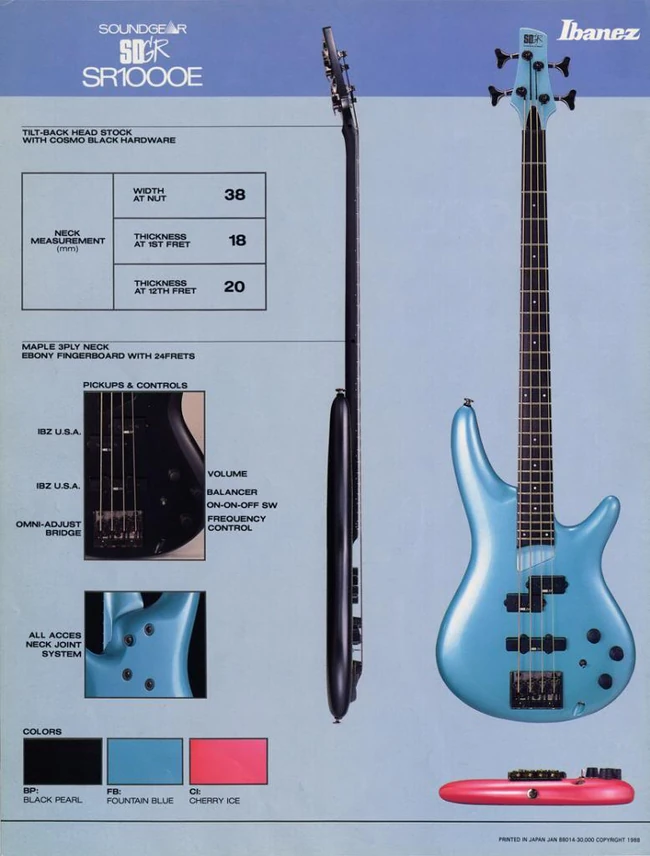

SR1000E AD
1988 Soundgear SR1000E Dealer Sheet Red copyright sprite
Available finishes

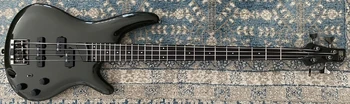

SR1000E-BP
Black Pearl

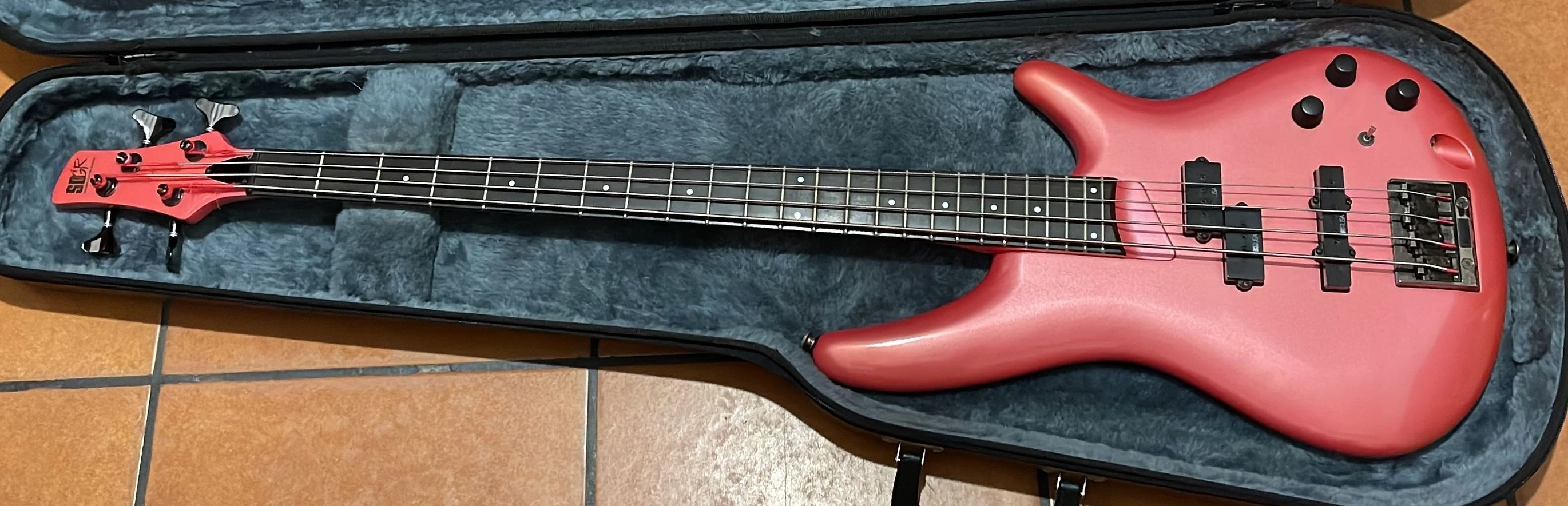

SR1000 CI
Cherry Ice

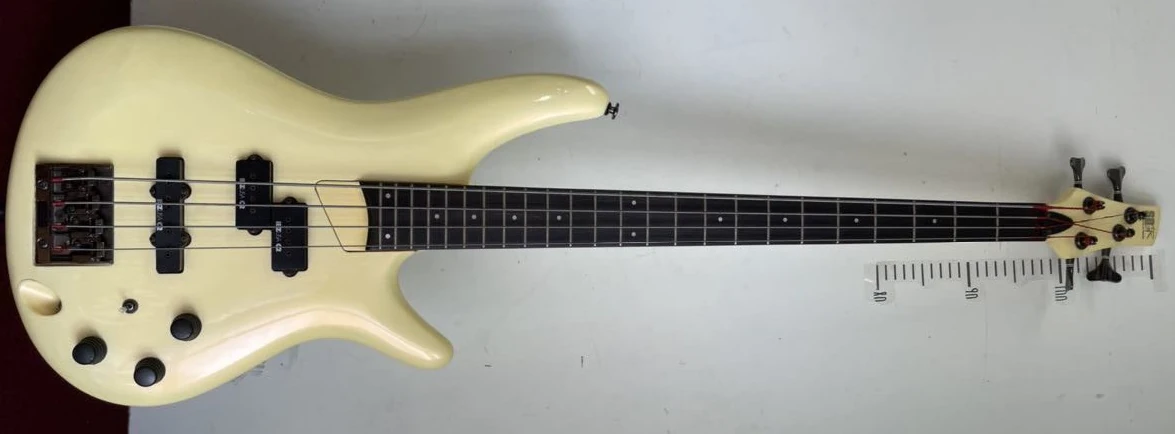

SR1000E CP
Crystal Pearl

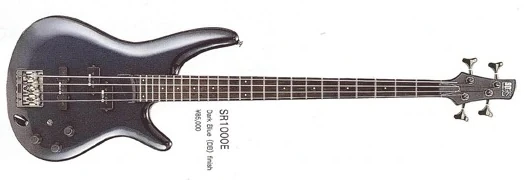

SR1000E-DB
Dark Blue

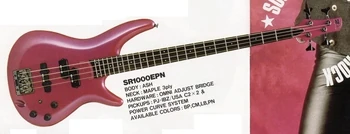

1990 SR1000E-PN
Purple Neon
Additional details
Power Curve System
Controls layout & Frequency response chart
