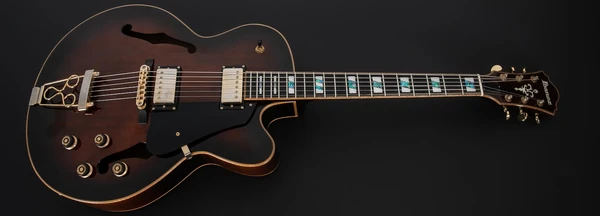

2014 SJ300 DVS 12 01
SJ300 Dark Violin Sunburst (more images) Red copyright sprite

The SJ300 is an Artstar Solid Top series hollow body electric guitar model introduced by Ibanez in mid 2014. It was made in China. It replaced the SJ500.

The SJ300 features a full-hollow body design with a solid spruce top with ƒ holes and cream multi-binding on flamed maple back and sides with a single Venetian cutaway mated to a set-in maple and walnut neck with a 20-fret ebony fingerboard with cream binding and no position markers. Components include a single, floating Ibanez Super 58 humbucking pickup at the neck with gold cover, an ART-W bridge with wooden saddle and base, a trapeze tailpiece with decoration, a bone nut, a bakelite pickguard with rosewood veneer, rosewood knobs, and Ibanez tuning machines.

The SS300 is a similar model with a slightly smaller body and a less rounded cutaway.

The SJ300 was discontinued in 2017.

Specifications[]

Specifications for SJ300
Year(s) offered: 2014–2017
Sold in: Americas & Oceania / Asia & Africa / China / Europe / Japan / USA
Made in: China
Finish(es): Dark Violin Sunburst (DVS)
Body
Body type:
Hollow body
Dimensions:
  Length: 518mm / 20.4"
  Width: 419mm / 16½"
  Depth: 110mm / 4⅓"
Top:
  Material: Solid spruce
  Binding: Cream/black multi-ply
Back/sides:
  Material: Flamed maple
Neck joint:
Set-in
Bridge:
ART-W w/ wooden saddle & base (10.4mm string spacing)
Tailpiece:
VT06S trapeze w/ decoration
Pickguard:
Rosewood veneer on bakelite
Knob style:
Rosewood bell
Hardware color:
Gold
Neck
Neck type:
Artstar SJ
Neck material:
5-piece maple/ walnut
Scale length:
628mm/ 24¾"
Fingerboard material:
Ebony w/ cream binding
Fingerboard inlays:
None
Frets:
20 / medium
Nut:
Bone (43mm)
Machine heads:
Ibanez die-cast w/ half moon buttons
Electronics/ Strings
Pickup configuration:
HH
Bridge pickup:
Ibanez Super 58 (H)
Neck pickup:
Ibanez Super 58 (H)
Controls:
Two volumes / two tones / 3-way toggle pickup selector
Output jack:
¼" mono (side mounted)
String gauge (factory):
.011/.015/.022w/.030/.040/.050 flatwound
Factory tuning:
1E,2B,3G,4D,5A,6E (E Std.)

Images[]

Additional details

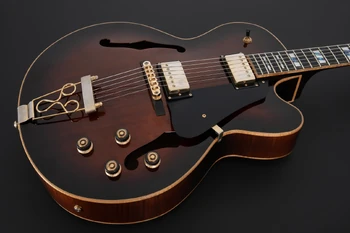

SJ300 front
Front of body

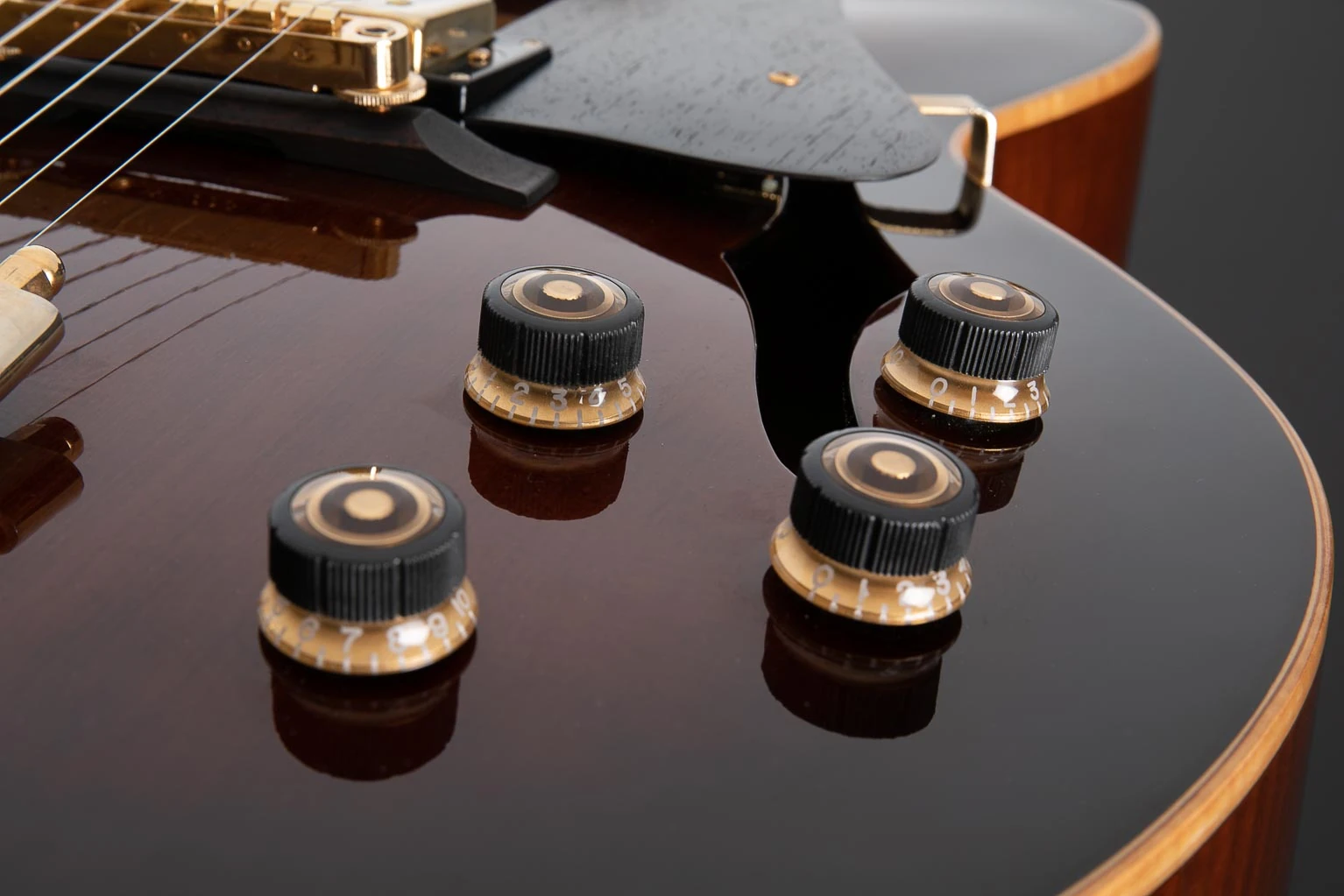

SJ300 controls
Controls

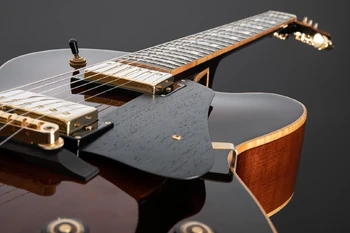

SJ300 pg
Bakelite pickguard

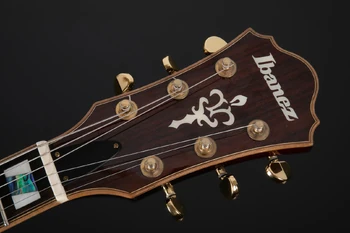

SJ300 headstock
Headstock
SJ300 toggle
3-Way toggle

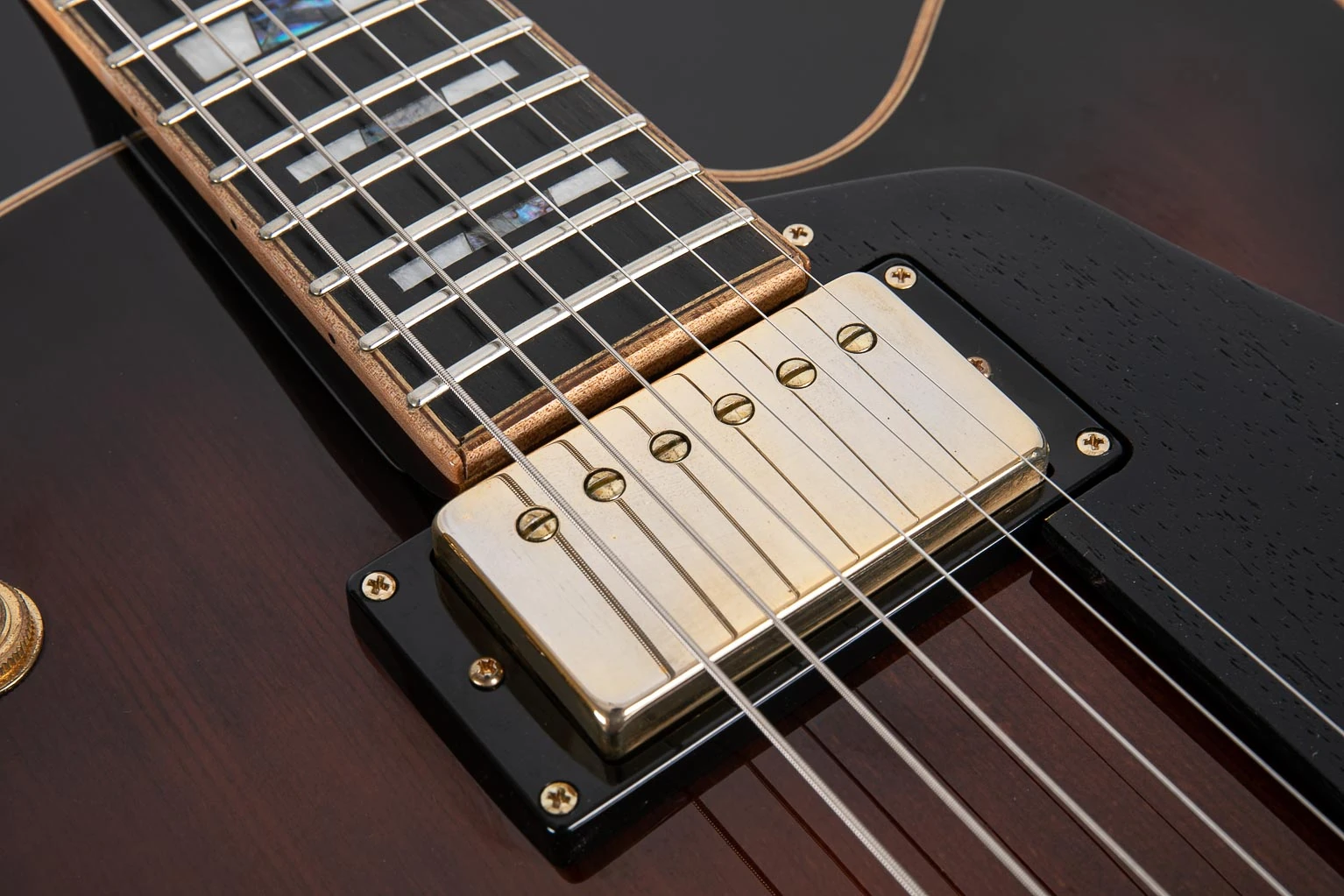

SJ300 pu
Super 58 pickups

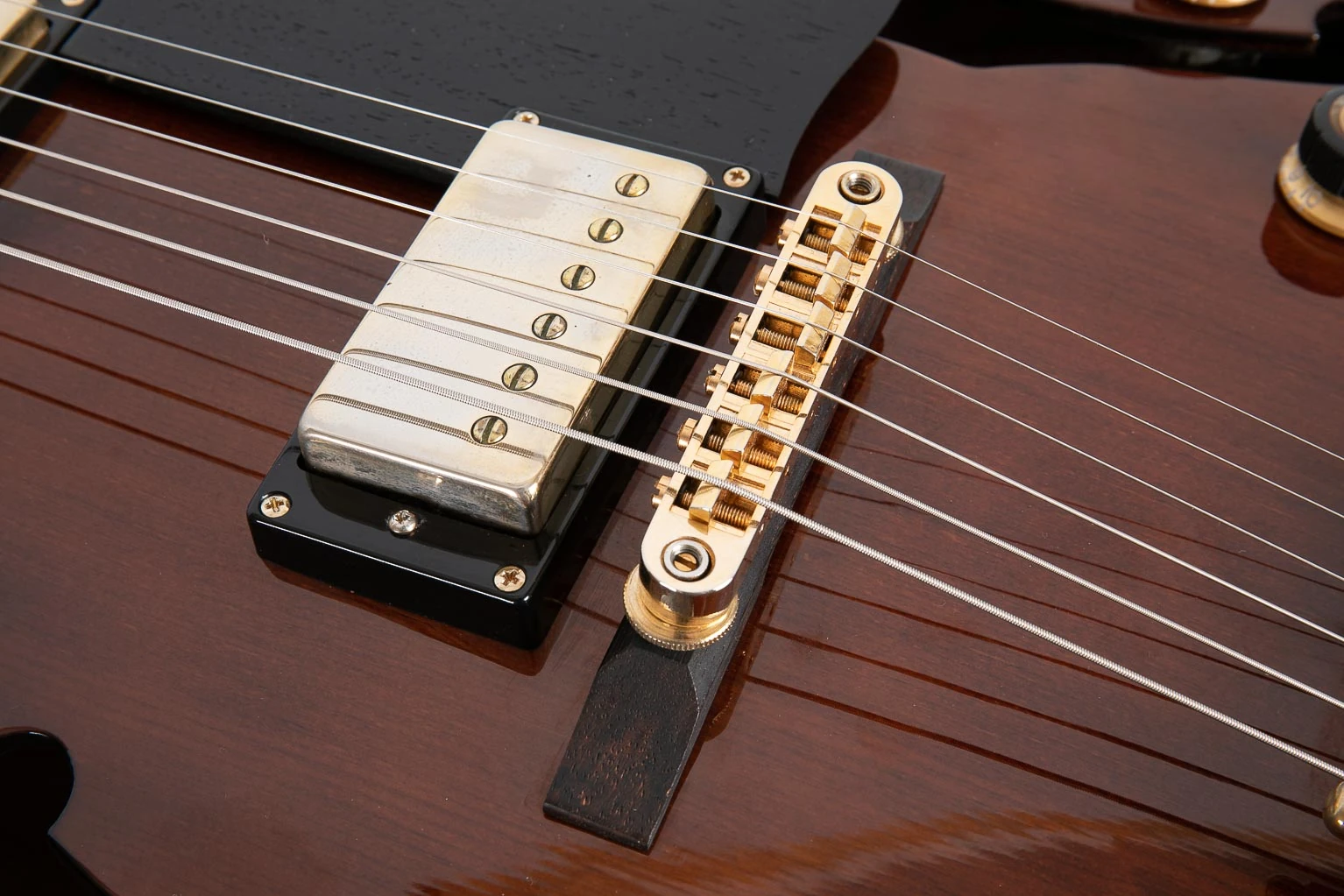

SJ300 bridge
ART-W bridge

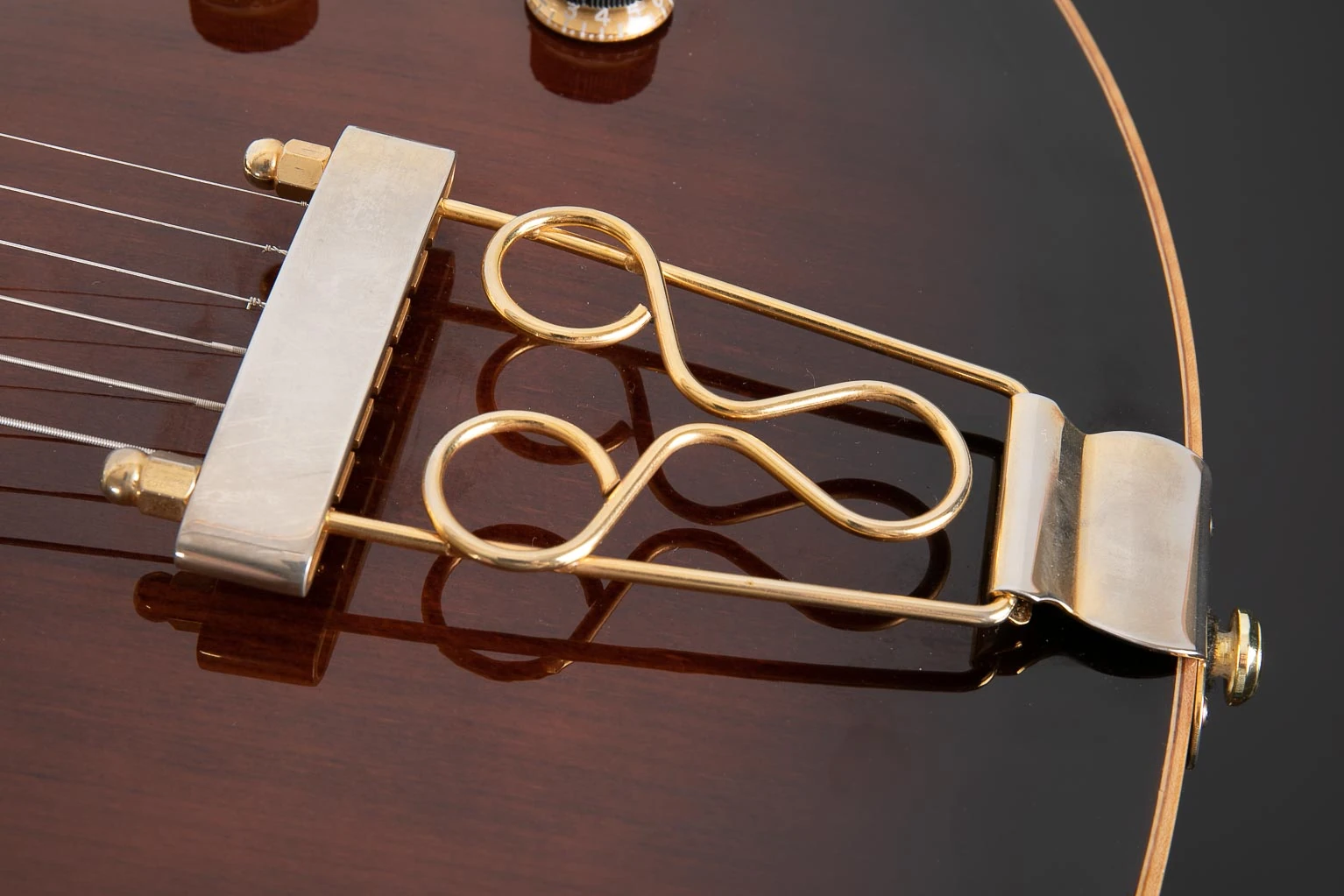

SJ300 tail
VT06S trapeze

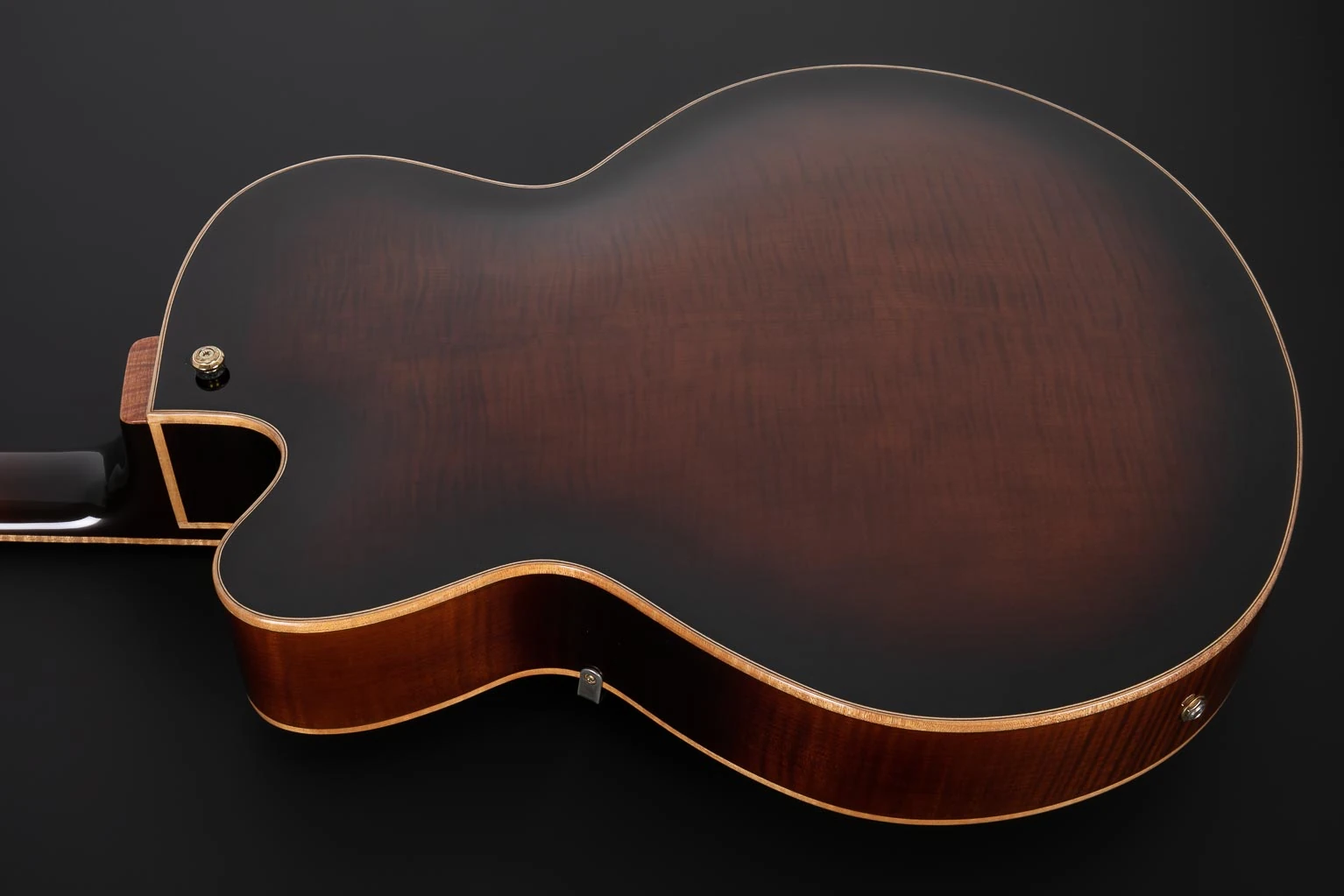

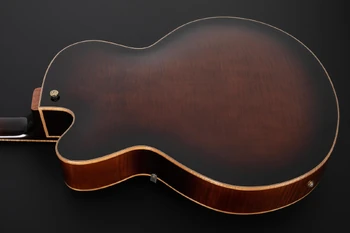

SJ300 rear
Rear of body
HH 3-way toggle
Pickup switching
Controls 2V2T3
Control layout
