2016 SIX6FDFM BCB
SIX6FDFM Blue Space Burst (more images) Red copyright sprite

The SIX6FDFM is an S series solid body electric guitar introduced by Ibanez in mid-2016. It was made in Indonesia as part of the metal-focused Iron Label line.

The SIX6FDFM features a flamed maple top with white binding on a mahogany body bolted to a maple and bubinga Nitro Wizard neck with a reversed headstock and a 24-fret ebony fingerboard with no inlays. Components include dual DiMarzio humbucking pickups with a coil-split toggle, a hard-tail bridge and Gotoh locking tuning machines.

For 2018 a new maple and purpleheart neck with luminescent side dots was introduced. For 2019 the mahogany body was replaced with nyatoh.

The SIX6DFM is a similar model with a tremolo bridge and the SIX7FDFM is a similar seven-string model.

The SIX6FDFM was available starting in July 2016.[1] It was discontinued after 2019.

Specifications

Specifications for SIX6FDFM
Year(s) produced: 2016–2019
Sold in: Worldwide except Asia & China
Made in: Indonesia
Finish(es): Blue Space Burst (BCB) / Purple Space Burst (PCB) 2016–2017
Body
Body type:
Solid body
Body material:
2016–2018: Mahogany w/ flamed maple top & white binding
2019: Nyatoh w/ flamed maple top & white binding
Neck joint:
AANJ
Bridge:
Gibraltar Standard II fixed (10.5mm string spacing)
Knob style:
Sure Grip III
Hardware color:
Black
Neck
Neck type:
Nitro Wizard
Neck material:
2016–2017: 3-piece maple/ bubinga
2018–2019: 3-piece maple/ purpleheart
Scale length:
648mm/ 25½"
Fingerboard material:
Ebony w/ binding
Fingerboard inlays:
2016–2017: None
2018: Luminescent side dot
Frets:
24 / jumbo
Nut:
Black plastic (43mm)
Machine heads:
Gotoh SG381 MG-T locking
Electronics/ Strings
Pickup configuration:
HH
Bridge pickup:
DiMarzio Fusion Edge (H) passive
Neck pickup:
DiMarzio Fusion Edge (H) passive
Controls:
Master volume / 3-way toggle / coil-split switch
String gauge (factory):
.009/.011/.016/.024/.032/.042
Factory tuning:
1E,2B,3G,4D,5A,6E (E Std.)

Images

Additional finishes/ details

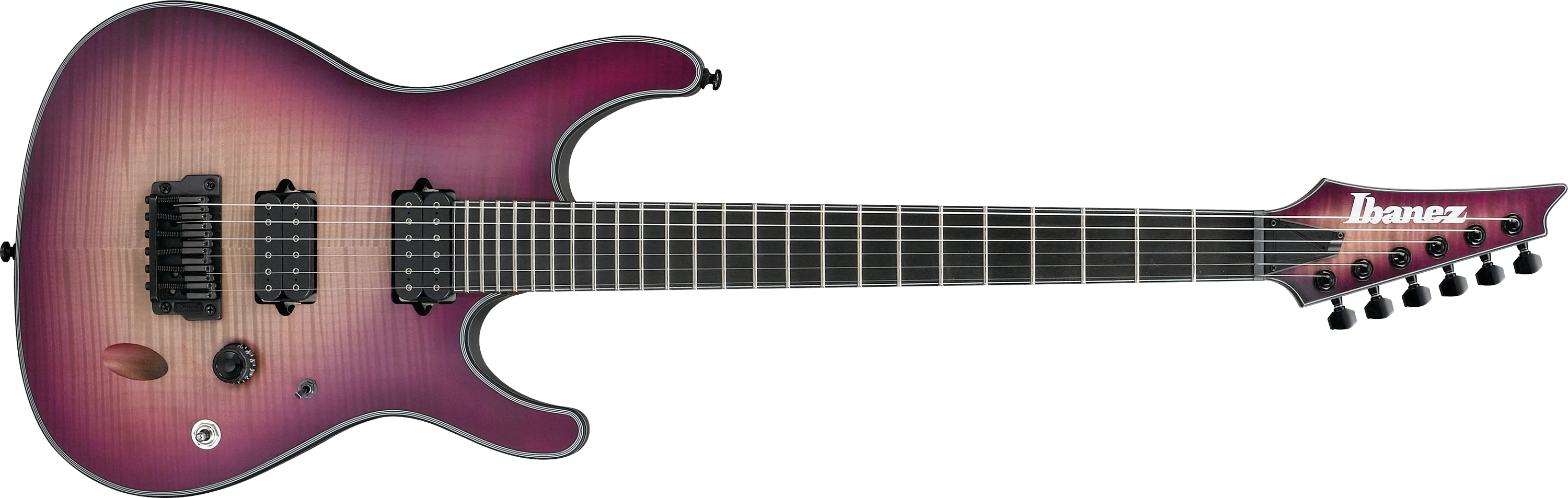

2017 SIX6FDFM PCB
Purple Space Burst
HH 3-way-toggle coil-split-toggle
Pickup switching

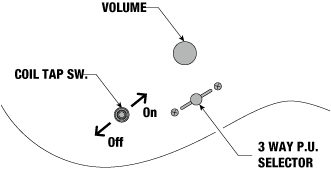

Controls V3L coil-split-toggle
Control layout

Video

S-Series Iron Label SIX

S-Series Iron Label SIX

Sources

  1. 2016 USA summer new product book (page 2)
