SF470 TC
SF470 Transparent Cherry (more images) Red copyright sprite

The SF470 is an S series solid body electric guitar model introduced by Ibanez in 1992. In 1992 it was referred to as the 470S in the US and European markets, but as the SF470 in Japan. The SF470 model name was carried forward into 1993.

The SF470 was the first hard-tail model in the S series and one of only a small handful of models offered with the SF designation.

Features of the SF470 include a mahogany body with a 24¾" scale Viper neck with a 22-fret rosewood fingerboard with dot position markers. Components include dual Ibanez Vintage humbucking pickups flanking a single-coil and the Gibraltar II bridge with Quik Change II tailpiece.

In 1992 the SF470 for the European and Japan markets had V1/S2/V2 pickups which US versions had V7/S2/V8 pickups. The V1/V2 humbuckers were used worldwide after 1992.

The SF470 was discontinued after 1994. In 1997 a new series of hard-tail S models was introduced as the S Classic series.

Specifications[]

Related content: SF series | S series | Models-icon
Specifications for SF470 / 470S
Model name: SF470 / 470S
Year(s) offered: 1992–1994
Sold in: Europe / Japan / USA
Made in: Japan
Finish(es): Black (BK) / Transparent Blue (TB) 1992–1993 / Transparent Cherry (TC) 1992 / Transparent Red (TR)
Body
Body type:
Solid body
Body material:
Mahogany
Neck joint:
1992: Bolt-on (traditional) or AANJ
1993–1994: AANJ
Bridge:
Gibraltar II
Tailpiece:
Quik Change II
Knob style:
Knurled metal dome (black)
Hardware color:
Black
Neck
Neck type:
Viper
Neck material:
1-piece maple
Scale length:
628mm/ 24¾"
Fingerboard material:
Rosewood
Fingerboard inlays:
Pearl dot
Frets:
22 / medium
Machine heads:
Gotoh SG38
Electronics/ Strings
Pickup configuration:
HSH
Bridge pickup:
1992: Ibanez V8 (H)
1992–1994: Ibanez V2 (H)
Middle pickup:
Ibanez S2 (S)
Neck pickup:
1992: Ibanez V7 (H)
1992–1994: Ibanez V1 (H)
Controls:
Master volume / master tone / 5-way lever pickup selector
String gauge (factory):
.010/.013/.017/.026/.036/.046
Factory tuning:
1E,2B,3G,4D,5A,6E (E Std.)

Images[]

Additional finishes & details

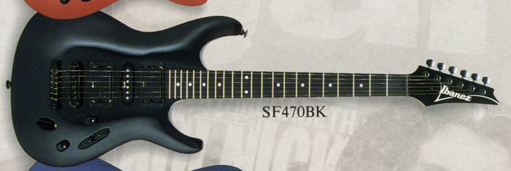

1993 SF470 BK
Black

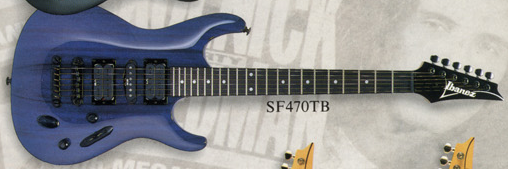

1993 SF470 TB
Transparent Blue

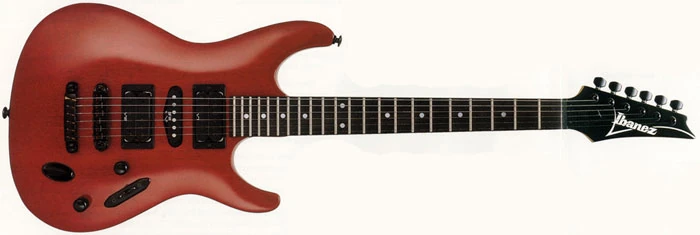

1993 SF470 TR
Transparent Red
Wiring-diagram 1994 S-series HSH
Wiring diagram 1994–1996[1]

Sources[]

  1. SF470 wiring diagram, Ibanez USA, archived April 2003
