2004 SCA220 CB

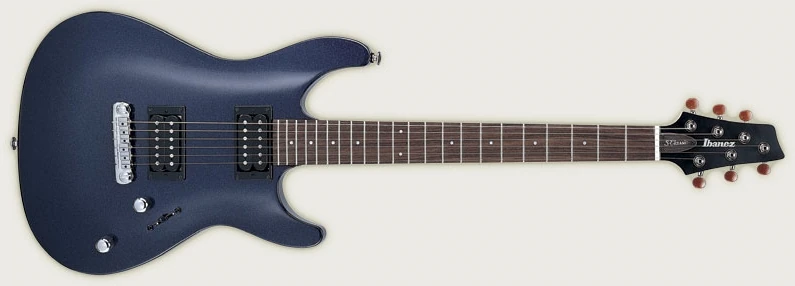

SCA220 Cosmic Blue Red copyright sprite

The SCA220 is an S Classic series solid body electric guitar model introduced by Ibanez in 2000. It was produced through 2004.

The S Classic body is described as a marriage of the S series and the classic Radius, although it has few actual similarities with the Radius.

The SCA220 features a mahogany body bolted to a 25.1" (638mm) scale maple neck with a 22-fret rosewood fingerboard with pearl dot position markers and a bone nut. Components include a fixed bridge and dual Ibanez Vintage humbucking pickups.

Specifications

Specifications for SCA220
Year(s) produced: 2000–2004
Sold in: USA
Made in: Japan
Finish(es): Black Pearl (BP) / Cosmic Blue (CB) 2003–2004
Body
Body type:
Solid body
Body material:
Mahogany
Neck joint:
AANJ
Bridge:
Short Stop II fixed
Hardware color:
Chrome
Neck
Neck type:
SC
Neck material:
1-piece maple
Scale length:
638mm/ 25.1"
Fingerboard material:
Rosewood
Fingerboard inlays:
Pearl dot
Frets:
22 / medium
Nut:
Bone
Electronics
Pickup configuration:
HH
Bridge pickup:
Ibanez V6 (H)
Neck pickup:
Ibanez V6 (H)
Controls:
Master volume / master tone / 5-way lever
2004 SCA220 BP

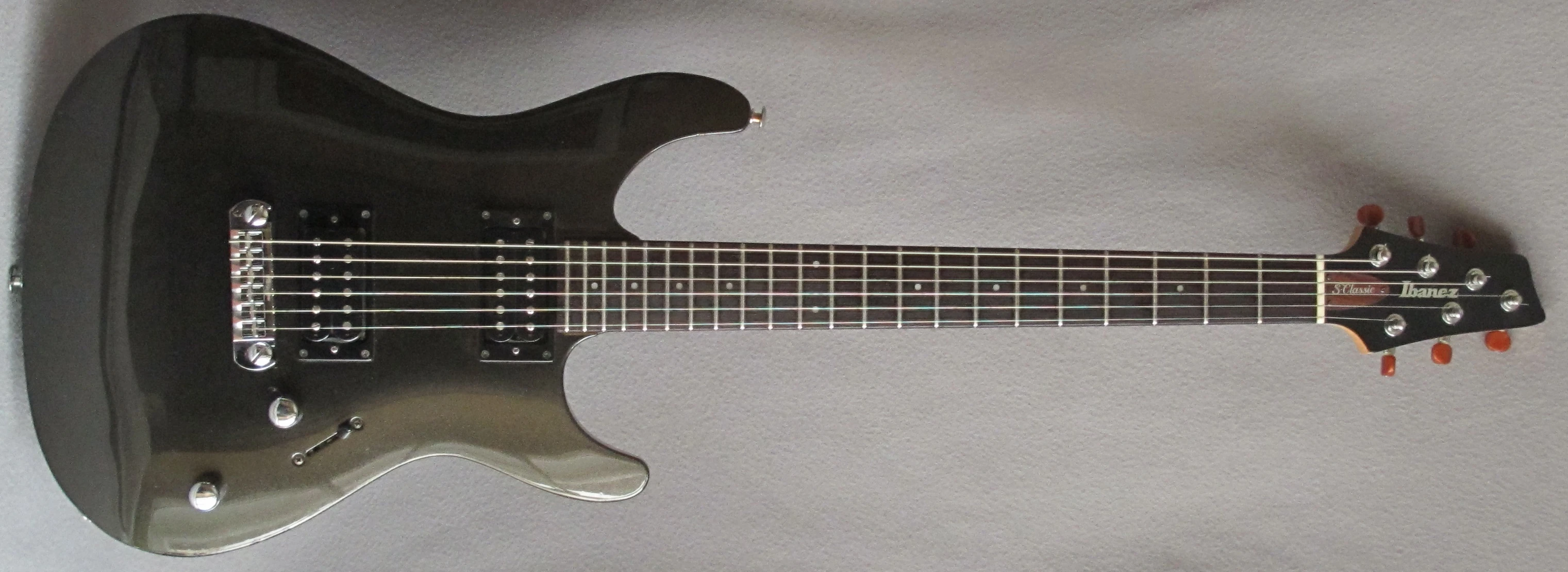

SCA220 Black Pearl Red copyright sprite
