SAS36FM TRB

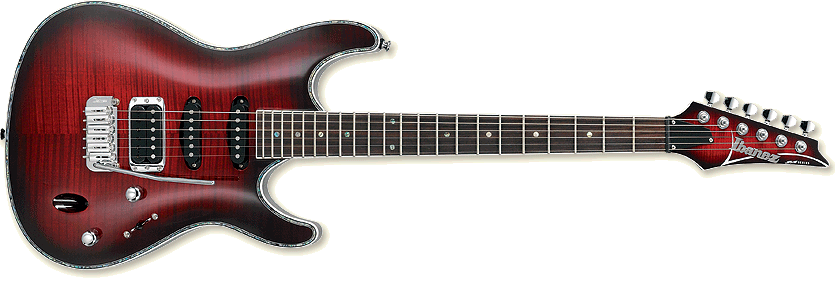

SAS36FM Transparent Red Sunburst (more images) Red copyright sprite

The SAS36FM is an SA series solid body electric guitar model introduced by Ibanez in 2006. It was originally produced in South Korea by the World company; production moved to China for 2008.

The SAS36FM features a flamed maple top with abalone purfling and cream binding on a mahogany body mated to a set-in maple neck with a 24-fret rosewood fingerboard with binding and abalone dot position markers. Components include a SAT pro synchronized tremolo bridge and Ibanez pickups with a True Duo Bucker in the bridge position and Axis single-coils in the middle and neck positions. For 2008 the SAT Pro tremolo was replaced with the SAT Pro II.

The SAS36QM is a similar model with a quilted maple top.

The SAS36FM was discontinued after 2011.

Specifications

Specifications for SAS36FM
Model name: SAS36FM
Year(s) produced: 2006–2011
Sold in: Europe & Western Asia / Asia (excl. Japan) / USA / North & South America and Oceania / Japan
Made in: Korea (2006–2007) / China (2008–2011)
Finish(es): Dark Amber Sunburst (DAS) 2006–2007 / Dark Red Sunburst (DRS) 2006–2008 / Transparent Gray (TG) 2006–2008 / Transparent Lavender Blue (TL) 2008–2009 / Transparent Red Sunburst (TRB/ TRS) 2008–2011
Body
Body type:
Solid body
Body material:
Mahogany w/ flamed maple top, abalone purfling & cream binding
Neck joint:
Set-in
Bridge:
2006–2007: SAT Pro tremolo
2008–2011: SAT Pro II tremolo
Knob style:
Knurled metal dome
Hardware color:
Chrome
Neck
Neck type:
SAS
Neck material:
3-piece maple
Scale length:
648mm/ 25½"
Fingerboard material:
Rosewood w/ binding
Fingerboard inlays:
Abalone dot
Frets:
22 / medium
Nut:
2006–2007: Black plastic (42mm)
2008–2011: Black plastic (43mm)
Machine heads:
Ibanez die-cast
Electronics
Pickup configuration:
HSS
Bridge pickup:
Ibanez True Duo Bucker (H)
Middle pickup:
Ibanez Axis Single 2 (S)
Neck pickup:
Ibanez Axis Single 1 (S)
Controls:
2006–2007: Master volume / master tone / 5-way lever / push-pull coil split on volume
2008–2011: Master volume / master tone / 5-way lever / push-pull coil split on tone

Images

Additional finishes/ details

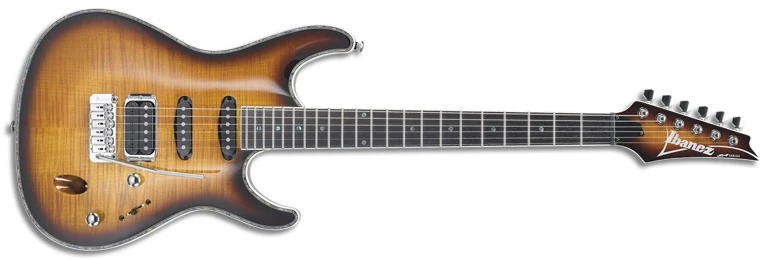

SAS36FM DAS
Dark Amber Sunburst

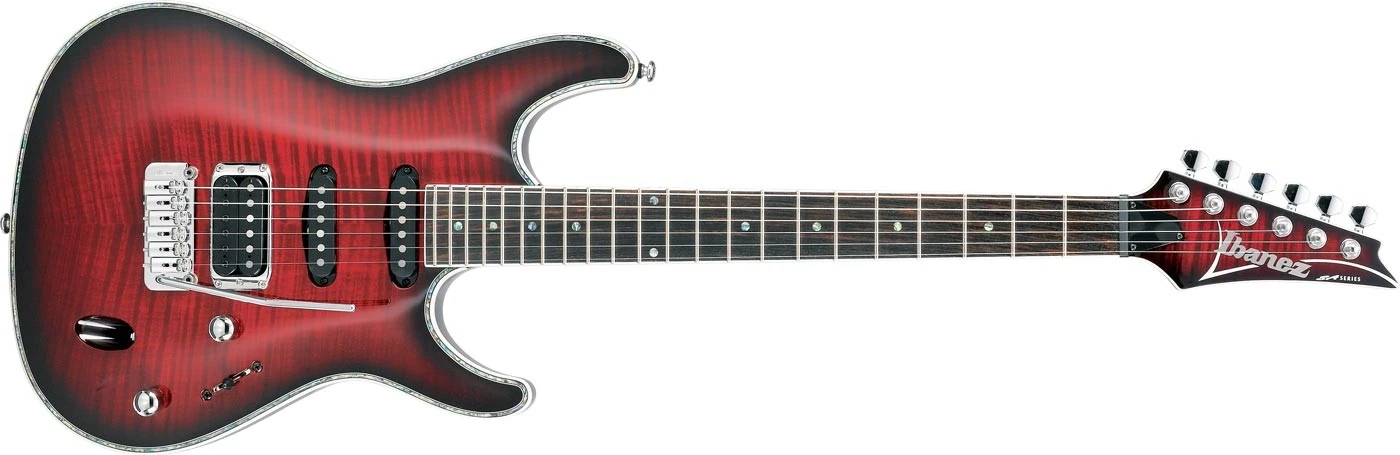

SAS36FM DRS
Dark Red Sunburst

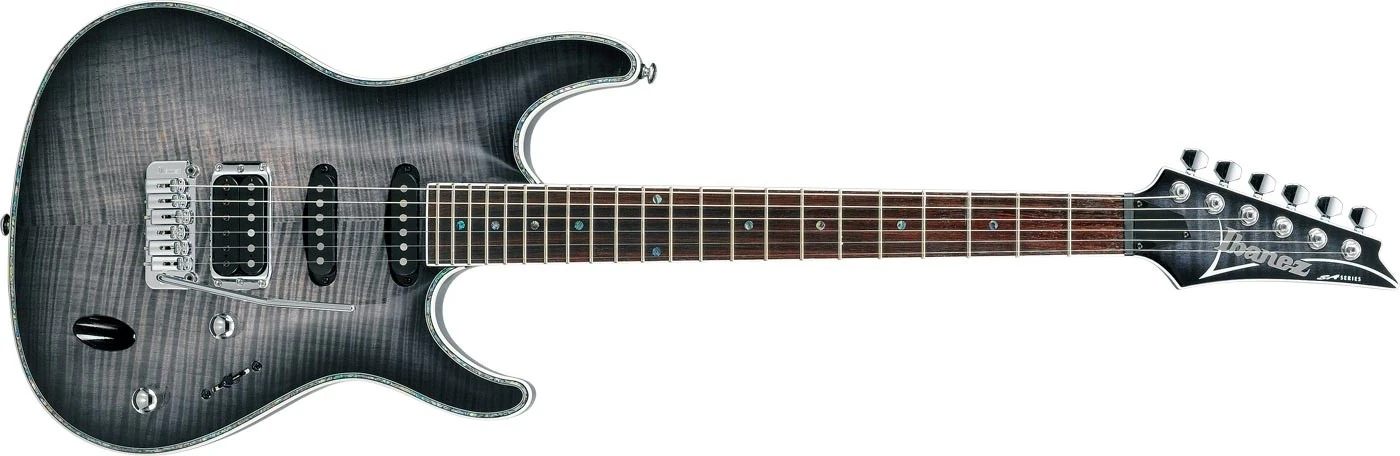

SAS36FM TG
Transparent Gray
SAS36FM TL
Transparent Lavender Blue
HSS 5-way push-pull-split-tone
Pickup switching diagram
Controls VT5
Controls layout
