SA960QM BTB

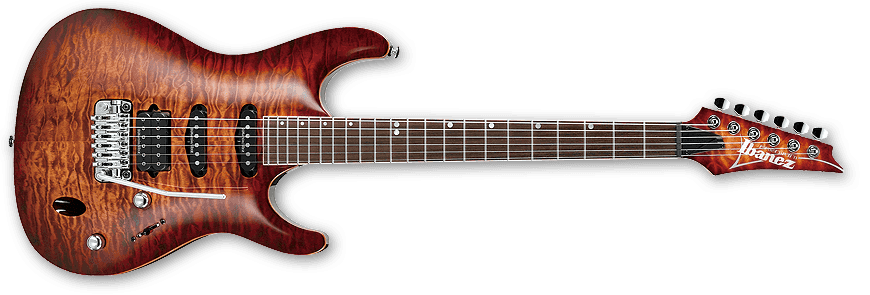

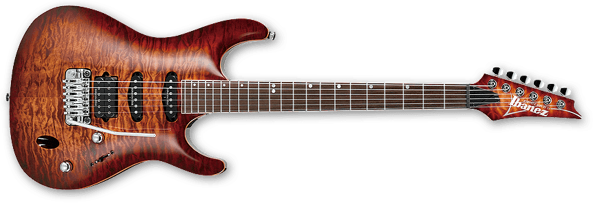

SA960QM Brown Topaz Burn (more images) Red copyright sprite

The SA960QM is an SA series solid body electric guitar model introduced by Ibanez in 2014. It was produced in Indonesia as part of the mid-tier Premium line.

The SA960QM features a quilted maple top with binding on a mahogany body bolted to a maple and walnut neck with a 22-fret rosewood fingerboard with binding and offset dot position markers. It comes equipped with DiMarzio/Ibanez pickups with a humbucker at the bridge and single-coils at the neck and middle positions, a SynchroniZR non-locking synchronized tremolo bridge with a removable ZPS tuning stabilizer, recessed control knobs and a Graph Tech Black TUSQ XL nut.

The SA960QM was discontinued after 2017.

Specifications[]

Related content: Premium series | SA series | Models-icon
Specifications for SA960QM
Model name: SA960QM
Year(s) offered: 2014–2017
Sold in: Asia / China / Europe / Japan
Made in: Indonesia
Finish(es): Brown Topaz Burn (BTB) 2014–2016 / Danube Blue Burst (DNB) 2016–2017
Body
Body type:
Solid body
Body material:
Mahogany w/ quilted maple top w/ binding
Neck joint:
AANJ
Bridge:
SynchroniZR w/ ZPS-FX stabilizer
Hardware color:
Chrome
Neck
Neck type:
SA Premium
Neck material:
5-piece maple/ walnut
Scale length:
648mm/ 25½"
Fingerboard material:
Rosewood w/ binding
Fingerboard inlays:
Offset mother of pearl dot
Frets:
22 / jumbo
Nut:
Graph Tech Black TUSQ XL
Electronics/ Strings
Pickup configuration:
HSS
Bridge pickup:
DiMarzio IBZ (H) passive
Middle pickup:
DiMarzio IBZ (S) passive
Neck pickup:
DiMarzio IBZ (S) passive
Controls:
Master volume / master tone / 5-way lever pickup selector
String gauge (factory):
.009–.042

Images[]

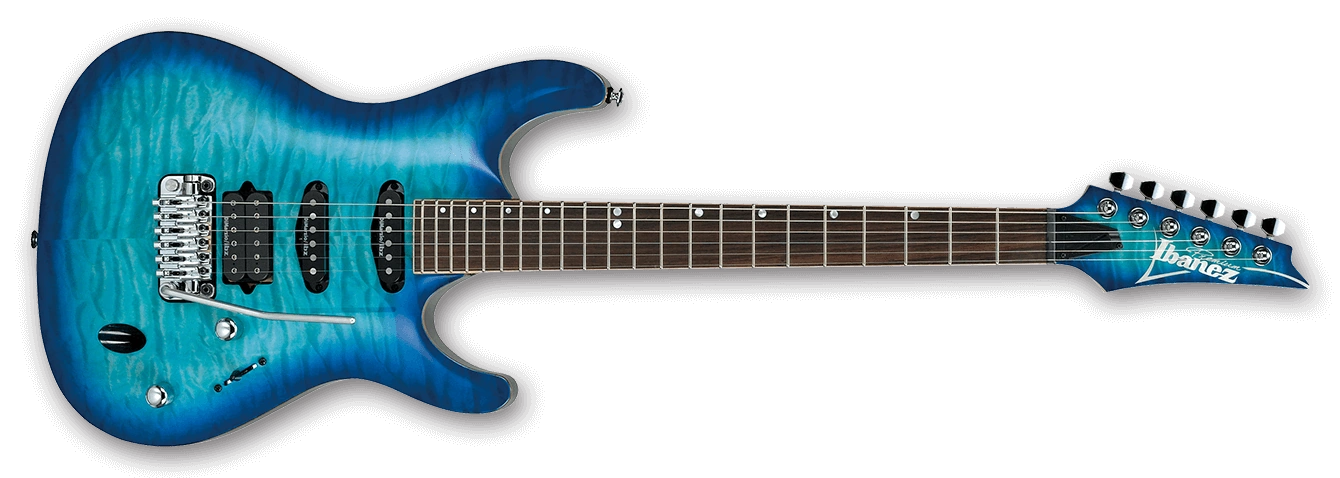

2016 SA960QM DNB
2016 Ibanez SA960QM Danube Blue Burst Red copyright sprite
