2013 SA360QM TLB 1P 01
SA360QM (more images) Red copyright sprite

The SA360QM is an SA series guitar model introduced by Ibanez in 2012. It was produced in both China and Indonesia.

The SA360QM features a sculpted quilted maple top with abalone binding on a mahogany body with a maple neck with 22-fret rosewood fingerboard with binding and abalone dot position markers. Components include a SAT Pro II non-locking synchronized tremolo bridge and Ibanez pickups with a True Duo triple-coil humbucker at the bridge and single-coils in the middle and neck positions. This HSS pickup configuration is typical of the SA series.

The rosewood fretboard was replaced with treated New Zealand pine in mid-2017

The SA360FM is a similar model with a flamed maple top. The SA360AH is a similar model with an ash top. The SA360 is a similar model without an exotic top.

The SA360QM was discontinued after 2017.

Specifications[]

Related content: SA series | Models-icon
Specifications for SA360QM
Model name: SA360QM
Year(s) offered: 2012–2017
Sold in: Worldwide (except USA)
Made in: China (2012, 2015–2017)/ Indonesia (2013–2015)
Finish(es): Cornflower Blue Burst (CBB) 2012 / Sapphire Blue Burst (SPB) 2015–2017 / Salvia Red Burst (SRB) 2012 / Transparent Gray Burst (TGB) 2012–2016 / Transparent Lavender Burst (TLB) 2013–2014 / Transparent Red Burst (TRB) 2013–2017
Body
Body type:
Solid body
Body material:
Mahogany w/ quilted maple top & abalone binding
Neck joint:
AANJ
Bridge:
SAT Pro II tremolo
Knob style:
Knurled metal dome
Hardware color:
Chrome
Neck
Neck type:
SA
Neck material:
3-piece maple
Scale length:
648mm/ 25½"
Fingerboard material:
2012–2017: Rosewood w/ binding
2017: Treated New Zealand pine w/ binding
Fingerboard inlays:
Abalone dot
Frets:
22 / jumbo nickel silver
Nut:
Black plastic (43mm)
Machine heads:
Ibanez die-cast
Electronics/ Strings
Pickup configuration:
HSS
Bridge pickup:
2012–2013: Ibanez STDH2 (H)
2014–2017: Ibanez True Duo Bucker (H) passive/ ceramic, alnico
Middle pickup:
2012–2014: Ibanez AHS2 (S)
2015–2017: Ibanez Quantum (S) passive/ alnico
Neck pickup:
2012–2014: Ibanez AHS1 (S)
2015–2017: Ibanez Quantum (S) passive/ alnico
Controls:
Master volume (w/ push-pull True Duo switch) / master tone / 5-way lever pickup selector
Output jack:
¼" stereo barrel (angled face mount)
String gauge (factory):
.009/.011/.016/.024/.032/.042
Factory tuning:
1E,2B,3G,4D,5A,6E (E Std.)

Images[]

Other available finishes
2013 SA360QM TLB 1P 01

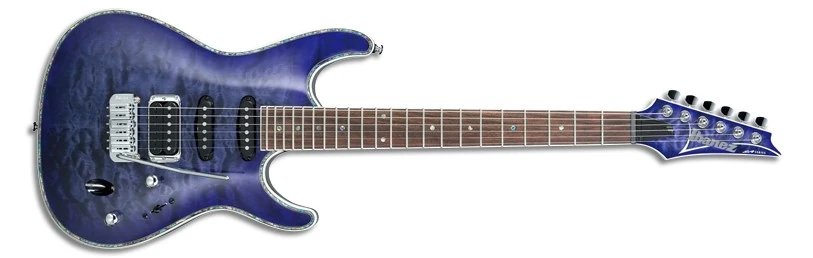

Sapphire Blue Burst

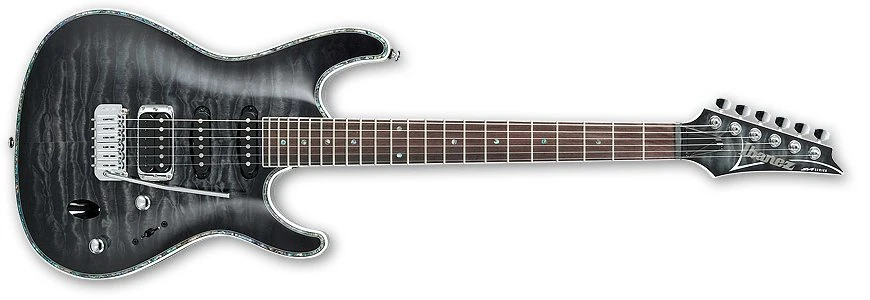

SA360QM TGB
Transparent Gray Burst
2013 SA360QM TLB 1P 01
Transparent Lavender Burst
2017 SA360QM TRB 4L 01
Transparent Red Burst
