For the 2010 SA260QM, see SA260QM (2010).
SA260QM VB

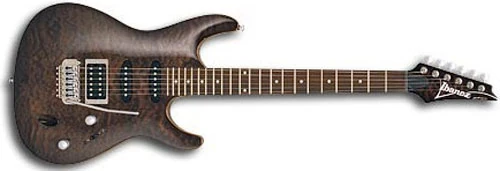

SA260QM Vintage Burst (more images) Red copyright sprite

The SA260QM is an SA series solid body electric guitar model introduced by Ibanez in 2002.

The SA260FM features a quilted maple top on a mahogany body bolted to a maple neck with a 22-fret rosewood fingerboard with pearloid dot position markers. Components include Ibanez Axis pickups with a humbucker at the bridge and single-coils in the neck and middle positions and a non-locking synchronized tremolo bridge.

The SA260QM was only available in Japan. In other areas the similar SA160QM was offered featuring slightly different components. The similar SA260FM was introduced in 2003 and available worldwide.

The SA260QM was discontinued after 2005. In 2010, a slightly updated version was issued as a limited edition model.

Specifications[]

Related content: SA series | Models-icon
Specifications for SA260QM
Model name: SA260QM
Year(s) offered: 2002–2005
Sold in: Japan
Made in: Korea
Finish(es): Gold Amber (GA) / Transparent Gray (TG) / Vintage Burst (VB) 2003–2005
Body
Body type:
Solid body
Body material:
Mahogany w/ quilted maple top
Neck joint:
Bolt-on
Bridge:
SAT30S tremolo
Hardware color:
Chrome/ satin chrome
Neck
Neck type:
SA
Neck material:
3-piece maple
Scale length:
648mm/ 25½"
Fingerboard material:
Rosewood
Fingerboard inlays:
Pearl dot
Frets:
22 / medium
Electronics
Pickup configuration:
HSS
Bridge pickup:
Ibanez AH4 (H)
Middle pickup:
Ibanez AS2 (S)
Neck pickup:
Ibanez AS2 (S)
Controls:
Master volume / master tone / 5-way lever pickup selector

Images[]

Other available finishes

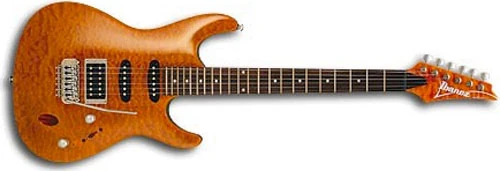

SA260QM GA
Gold Amber
SA260QM TG
Transparent Gray
