For the previous model with the same name, see SA260FM (2002–2011).
2018 SA260FM VLS.png

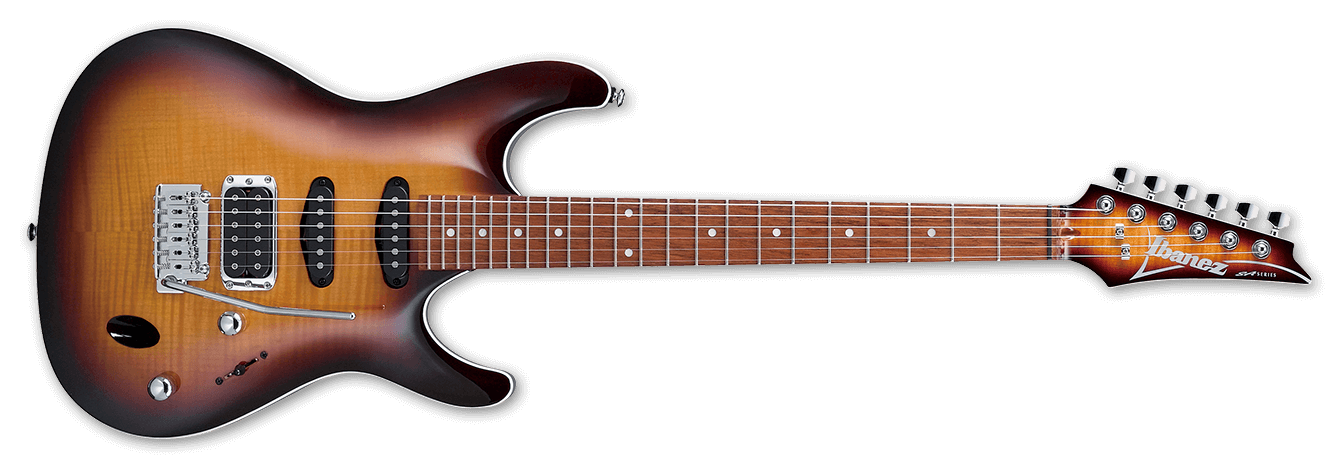

SA260FM Violin Sunburst (more images) Red copyright sprite.png

The SA260FM is an SA series solid body electric guitar model introduced by Ibanez in 2018. It is produced in China.

The SA260FM features a flamed maple top on a mahogany body bolted to a maple neck with a 24-fret jatoba fingerboard with white dot position markers. Components include Ibanez pickups with a Quantum humbucker at the bridge and Resolution single-coils in the middle and neck positions, an Ibanez T102 two-point synchronized tremolo bridge, a plastic nut, and Ibanez die-cast tuning machines.

For 2019 the mahogany body was replaced with okoume.

The SA460QM is a similar model with a quilted maple top and some abalone flourishes.

Specifications

Specifications for SA260FM
Model name: SA260FM (2018–2021)
Year(s) produced: 2018–2021
Sold in: Aisa & Africa / China / Europe / North & South America and Oceania / USA 2018–2019
Made in: China
Finish(es): Transparent Gray Burst (TGB) / Violin Sunburst (VLS)
Body
Body type:
Solid body
Body material:
2018: Mahogany w/ flamed maple top
2019–2021: Okoume w/ flamed maple top
Neck joint:
Bolt-on
Bridge:
Ibanez T102 tremolo (10.5mm string spacing)
Knob style:
Knurled metal dome
Hardware color:
Chrome
Neck
Neck type:
SA
Neck material:
1-piece maple
Scale length:
648mm/ 25½"
Fingerboard material:
Jatoba
Fingerboard inlays:
White dot
Frets:
22 / medium
Nut:
Black plastic (42mm)
Machine heads:
Ibanez die-cast
Electronics/ Strings
Pickup configuration:
HSS
Bridge pickup:
Ibanez Quantum bridge (H) passive/ ceramic
Middle pickup:
Ibanez Resolution single middle (S) passive/ ceramic
Neck pickup:
Ibanez Resolution single neck (S) passive/ ceramic
Controls:
Master volume / master tone / 5-way lever pickup selector
Output jack:
¼" stereo barrel (angled face mount)
String gauge (factory):
.009/.011/.016/.024/.032/.042 (D'Addario EXL120)
Factory tuning:
1E,2B,3G,4D,5A,6E (E Std.)

Images

Additional finishes/ details

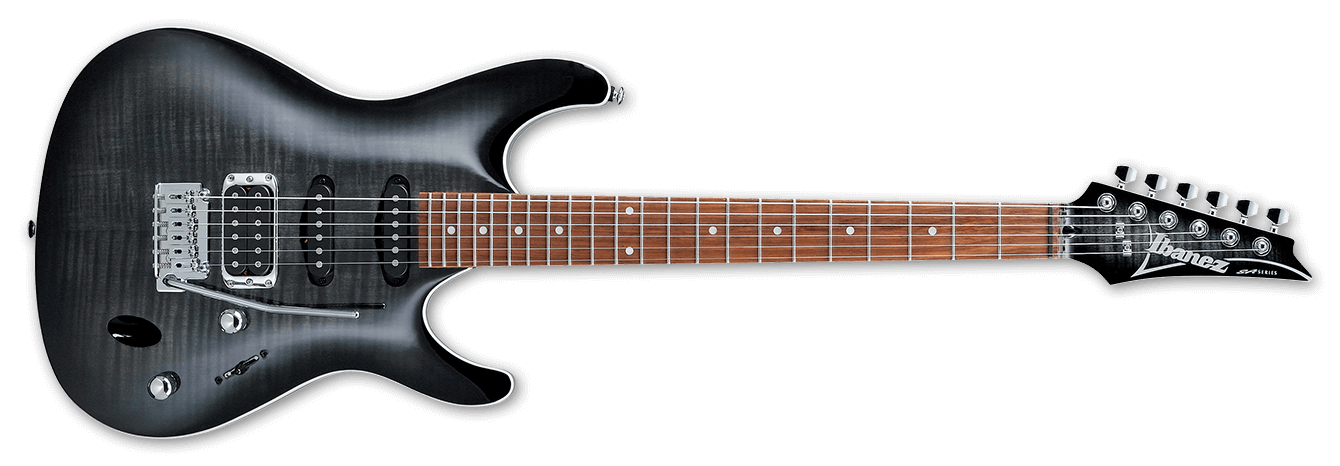

2018 SA260FM TGB.png
Transparent Gray Burst
HSS 5-way split.png
Pickup switching
Controls VT5.png
Control layout
2021 SA260FM TGB 4L 02 back.jpg
Rear of body
