For the earlier model with the same name, see SA160QM (2001–2005).

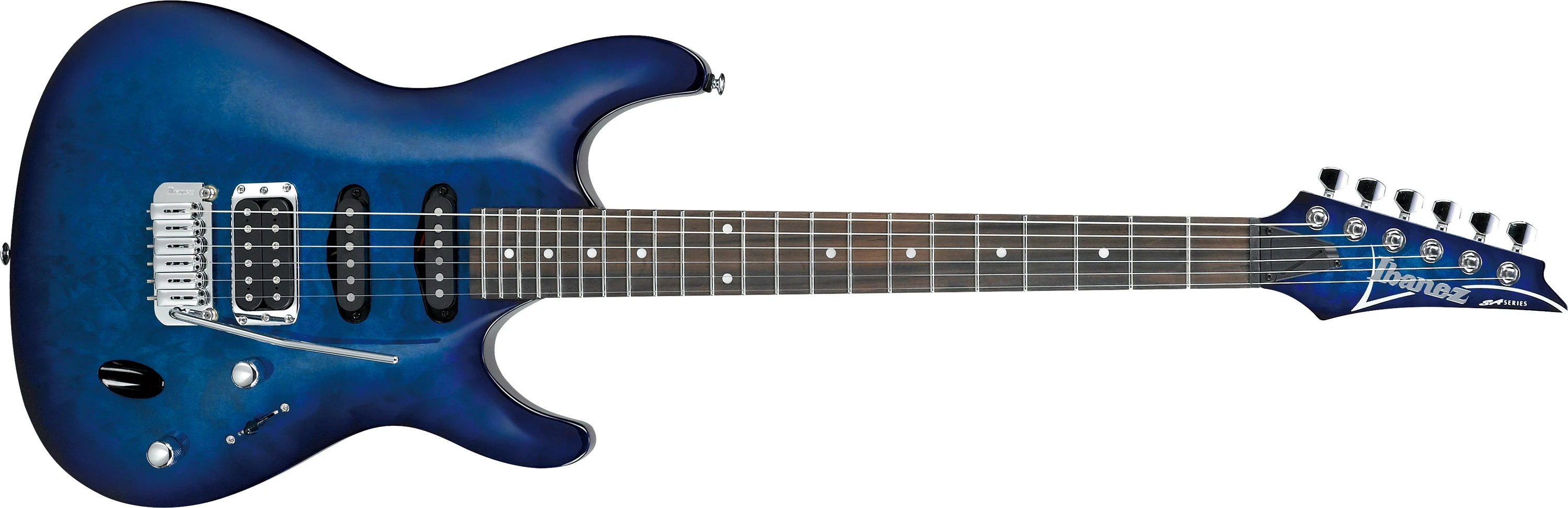

2016 SA160QM SPB
SA160QM Sapphire Blue Red copyright sprite

The SA160QM is an SA series solid body electric guitar model introduced by Ibanez in mid 2016. It was produced in China.

The SA160QM features a sculpted quilted maple top on a mahogany body bolted to a maple neck with a 22-fret rosewood fingerboard with dot position markers. Components include a SAT Pro II non-locking synchronized tremolo bridge and Ibanez pickups with a humbucker at the bridge and single-coils in the middle and neck positions. This HSS pickup configuration is typical of the SA series.

In mid-2017 the rosewood fretboard was replaced with a board made of treated New Zealand pine.

A similar model without the exotic top, the SA160, was produced until 2008. A similar model with a flamed maple top, the SA160FM has been offered since 2012. The SA160AH with an ash top was added in 2017.

The SA160QM was available from August 2016.[1]

The SA160QM was discontinued in 2018.


Specifications for SA160QM (2016–2018)
Year(s) produced: 2016–2018
Sold in: Europe / USA
Made in: China
Finish(es): Sapphire Blue (SPB)
Body type:
Solid body
Body material:
Mahogany w/ quilted maple top
Neck joint:
SAT Pro II tremolo
Knob style:
Knurled metal dome
Hardware color:
Neck type:
Neck material:
3-piece maple
Scale length:
648mm/ 25½"
Fingerboard material:
2016–2017: Rosewood
2017–2018: Treated New Zealand pine
Fingerboard inlays:
White dot
22 / jumbo
Black plastic (43mm)
Electronics/ Strings
Pickup configuration:
Bridge pickup:
Quantum (H) passive/ ceramic
Middle pickup:
Quantum (S) passive/ alnico
Neck pickup:
Quantum (S) passive/ alnico
Master volume / master tone / 5-way lever
String gauge (factory):


Additional details
HSS 5-way split

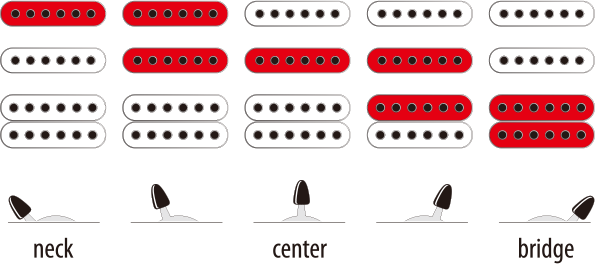

Pickup switching diagram
Controls VT5
Control layout
