For the more recent SA160QM, see SA160QM (2016–2018).

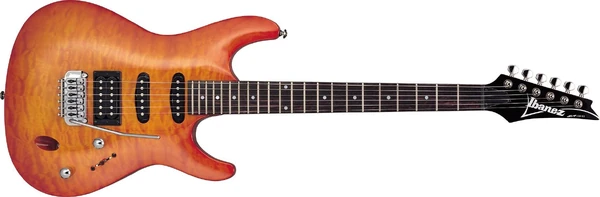

SA160QM AM
SA160QM Amber 2002 (more images) Red copyright sprite

The SA160QM is an SA series solid body electric guitar model introduced by Ibanez for 2001. It was made in South Korea.

The SA160QM features a quilted maple top on a mahogany body bolted to a maple neck with a 22-fret rosewood fingerboard with white dot position markers. Components include an SAT30 synchronized tremolo bridge and Ibanez Axis pickups with a humbucker at the bridge and single-coils in the neck and middle positions.

The SA160 is a similar model without the quilted maple top. The SA160QML is a left-handed sibling model.

The SA160QM was discontinued after 2005. A new model with the same name was introduced in 2016.

Specifications

'
Year(s) produced: 2001–2005
Sold in: Worldwide (except Japan)
Made in: South Korea
Finish(es): Amber (AM) / Transparent Ebony (TE) 2002–2003 / Transparent Gray (TG) 2002–2004 / Transparent Red (TR) 2005
Body
Body type:
Solid body
Body material:
Mahogany w/ quilted maple top
Neck joint:
Bolt-on
Bridge:
SAT30 tremolo
Hardware color:
Chrome
Neck
Neck type:
SA
Neck material:
1-piece maple
Scale length:
648mm/ 25½"
Fingerboard material:
Rosewood
Fingerboard inlays:
White dot
Frets:
2002–2003: 22 / medium
2004–2005: 22 / jumbo
Nut:
Black plastic (42mm)
Electronics
Pickup configuration:
HSS
Bridge pickup:
AH4 (H)
Middle pickup:
AS2 (S)
Neck pickup:
AS2 (S)
Controls:
Master volume / master tone / 5-way lever

Images

Additional finishes/ details

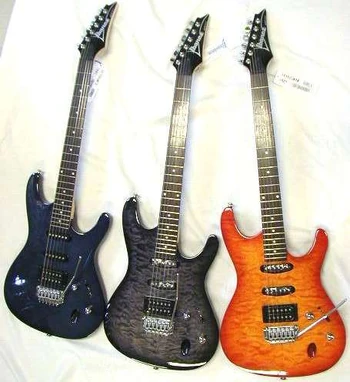

SA160QM TE-TG-AM
Transparent Ebony, Transparent Gray and Amber (left-to-right)

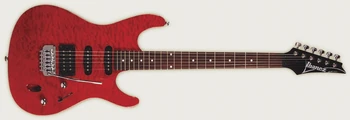

2004 SA160QM TR
Transparent Red
HSS 5-way split
Pickup switching diagram
Controls VT5
Control layout
