SA160FML BBT

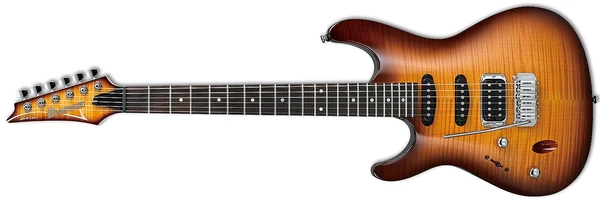

SA160FML Brown Burst (more images) Red copyright sprite

The SA160FML is a left-handed SA series solid body electric guitar model introduced by Ibanez in 2012. It was produced in China.

The SA160FML features an arched flamed maple top on a mahogany body bolted to a maple neck with a 22-fret rosewood fingerboard with white dot position markers. Components include a non-locking SAT Pro II synchronized tremolo bridge and Ibanez pickups in the HSS pickup configuration which is typical of this series.

The SA160FM is a right-handed version.

The SA160FML was sold in the USA exclusively by music retailer Xtreme Lefty Guitars.[1]

The SA160FML was discontinued after 2017.

Specifications[]

Related content: Left-handed guitar models | SA series | Models-icon
Specifications for SA160FML
Year(s) offered: 2012–2017
Sold in: Worldwide
Made in: China
Finish(es): Brown Burst (BBT) 2013–2016 / Transparent Gray Burst (TGB) 2017 / Transparent Yellow Sunburst (TYS) 2012
Body
Body type:
Solid body
Body material:
Mahogany w/ flamed maple top
Neck joint:
Bolt-on
Bridge:
SAT Pro II tremolo
Hardware color:
Chrome
Neck
Neck type:
SA
Neck material:
3-piece maple
Scale length:
648mm/ 25½"
Fingerboard material:
Rosewood
Fingerboard inlays:
Dot
Frets:
22 / jumbo
Electronics/ Strings
Pickup configuration:
HSS
Bridge pickup:
2011–2016: STDH2 (H)
2015–2017: Quantum (H) passive/ alnico
Middle pickup:
2012: STDS (S)
2013: AHS2 (S)
2015–2017: Quantum (S) passive/ alnico
Neck pickup:
2012: STDS (S)
2013: AHS1 (S)
2015–2017: Quantum (S) passive/ alnico
Controls:
Master volume / master tone / 5-way lever pickup selector
String gauge (factory):
.009–.042

Images[]

Other available finishes

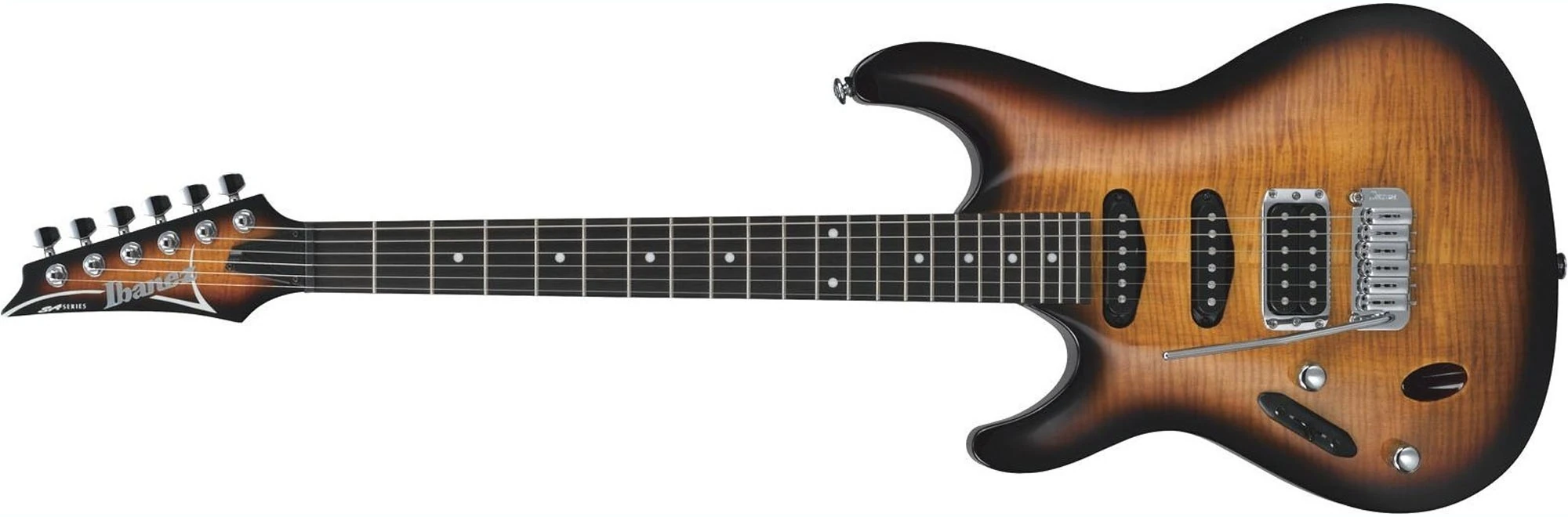

SA160FML TYS
Transparent Yellow Sunburst

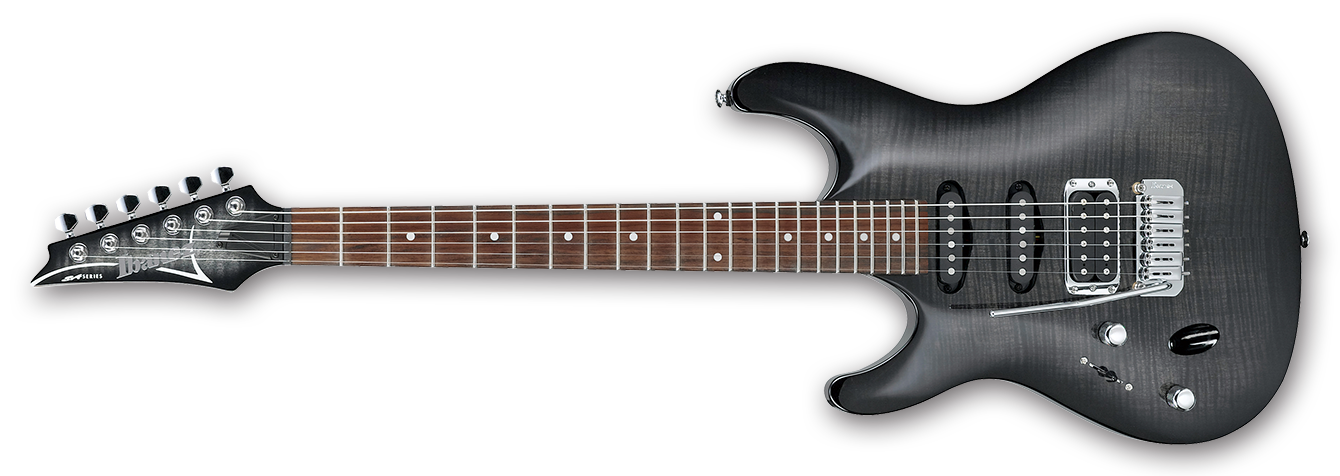

2017 SA160FML TGB 4L 01
Transparent Gray Burst

Sources[]

  1. 2016 product page, Ibanez USA (website), archived from the original June 2016
