SA160FM TGB

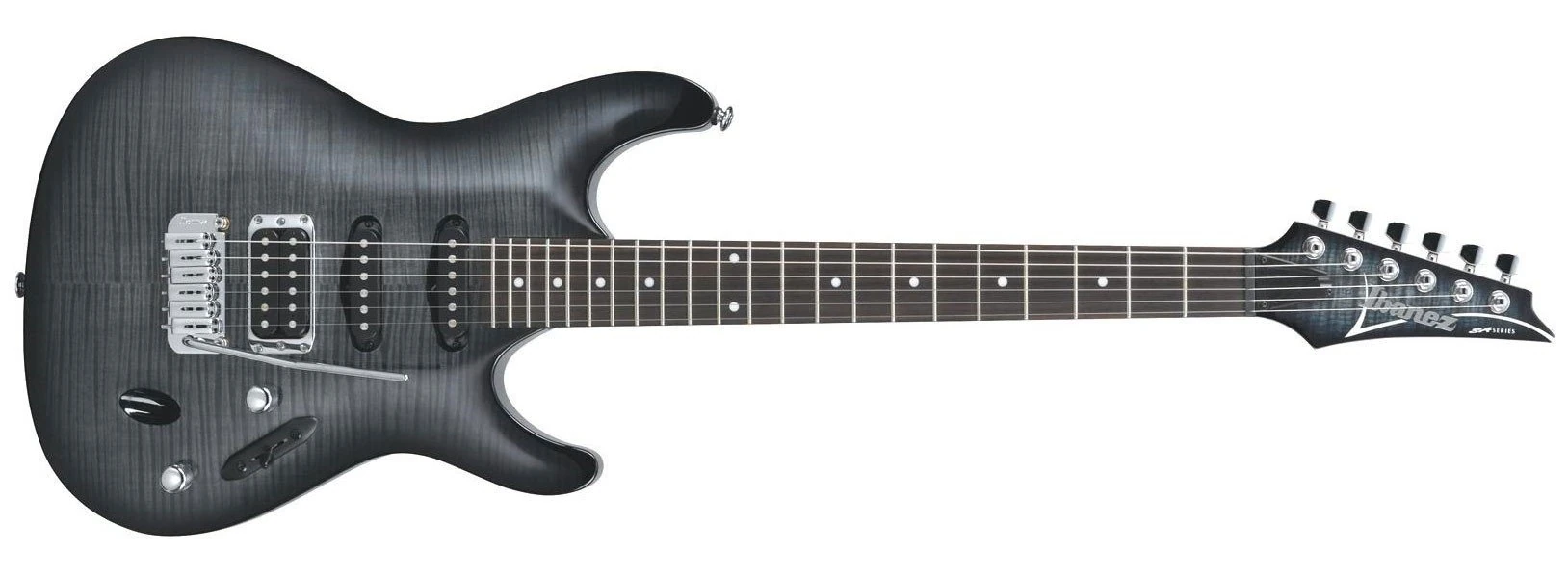

SA160FM Transparent Gray Burst (more images) Red copyright sprite

The SA160FM is an SA series solid body electric guitar model introduced by Ibanez in 2012. It was produced in both China and Indonesia.

The SA160FM features a sculpted flamed maple top on a mahogany body bolted to a maple neck with a 22-fret rosewood fingerboard. Components include a SAT Pro II non-locking synchronized tremolo bridge and Ibanez pickups with a humbucker at the bridge and single-coils in the middle and neck positions. This HSS pickup configuration is typical of the SA series.

In mid 2017 a treated New Zealand pine fretboard was introduced, replacing rosewood.

The SA160FML is a left-handed version. A similar model without the exotic top, the SA160, was produced until 2008. A similar model with a quilted maple top, the SA160QM was added in 2016; the SA160AH with an ash top was added in 2017.

The SA160FM was discontinued after 2017.

Specifications[]

Related content: SA series | Models-icon
Specifications for SA160FM
Year(s) offered: 2012–2017
Sold in: Worldwide except Japan
Made in: China/ Indonesia
Finish(es): Brown Burst (BBT) 2013–2017 / Transparent Yellow Sunburst (TYS) 2012 / Transparent Gray Burst (TGB)
Body
Body type:
Solid body
Body material:
Mahogany w/ flamed maple top
Neck joint:
Bolt-on
Bridge:
SAT Pro II tremolo
Hardware color:
Chrome
Neck
Neck type:
SA
Neck material:
3-piece maple
Scale length:
648mm/ 25½"
Fingerboard material:
2012–2017: Rosewood
2017: Treated New Zealand pine
Fingerboard inlays:
White dot
Frets:
22 / jumbo
Nut:
Black plastic (43mm)
Electronics/ Strings
Pickup configuration:
HSS
Bridge pickup:
2012–2014: STDH2 (H)
2015–2017: Quantum (H) passive/ alnico
Middle pickup:
2012: STDS (S)
2013–2014: Ibanez AHS2 (S)
2015–2017: Quantum (S) passive/ alnico
Neck pickup:
2012: STDS (S)
2013–2014: Ibanez AHS1 (S)
2015–2017: Quantum (S) passive/ alnico
Controls:
Master volume / master tone / 5-way lever pickup selector
String gauge (factory):
.009–.042

Images[]

Other available finishes

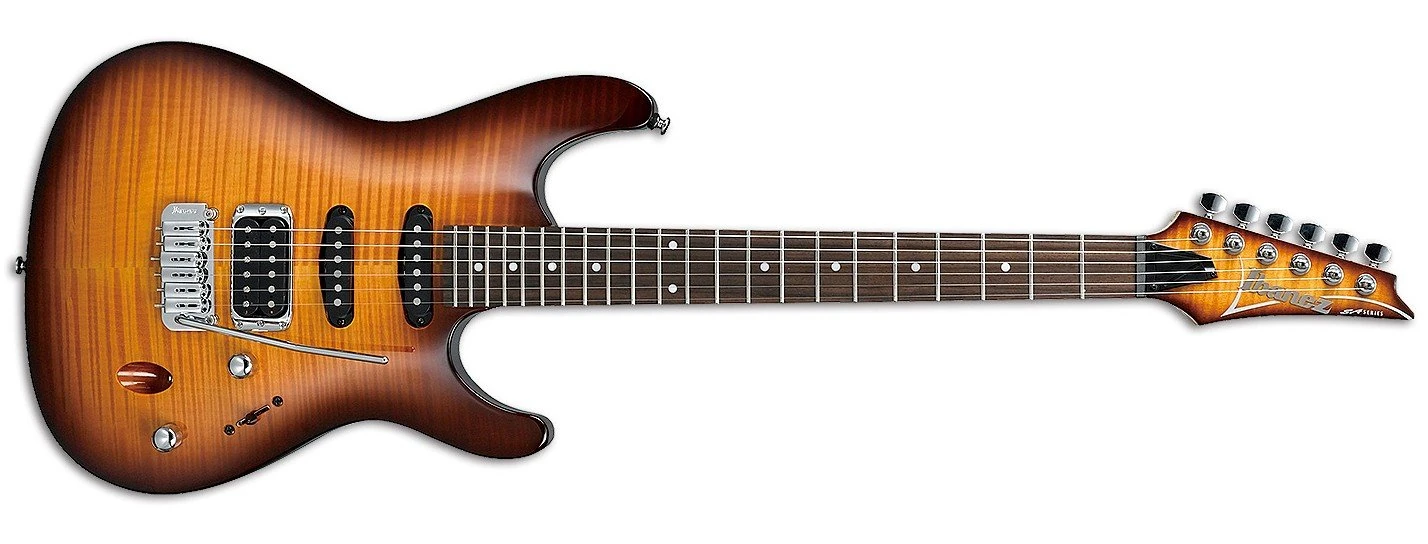

SA160FM BBT
Brown Burst
SA160FM TYS
Stained White

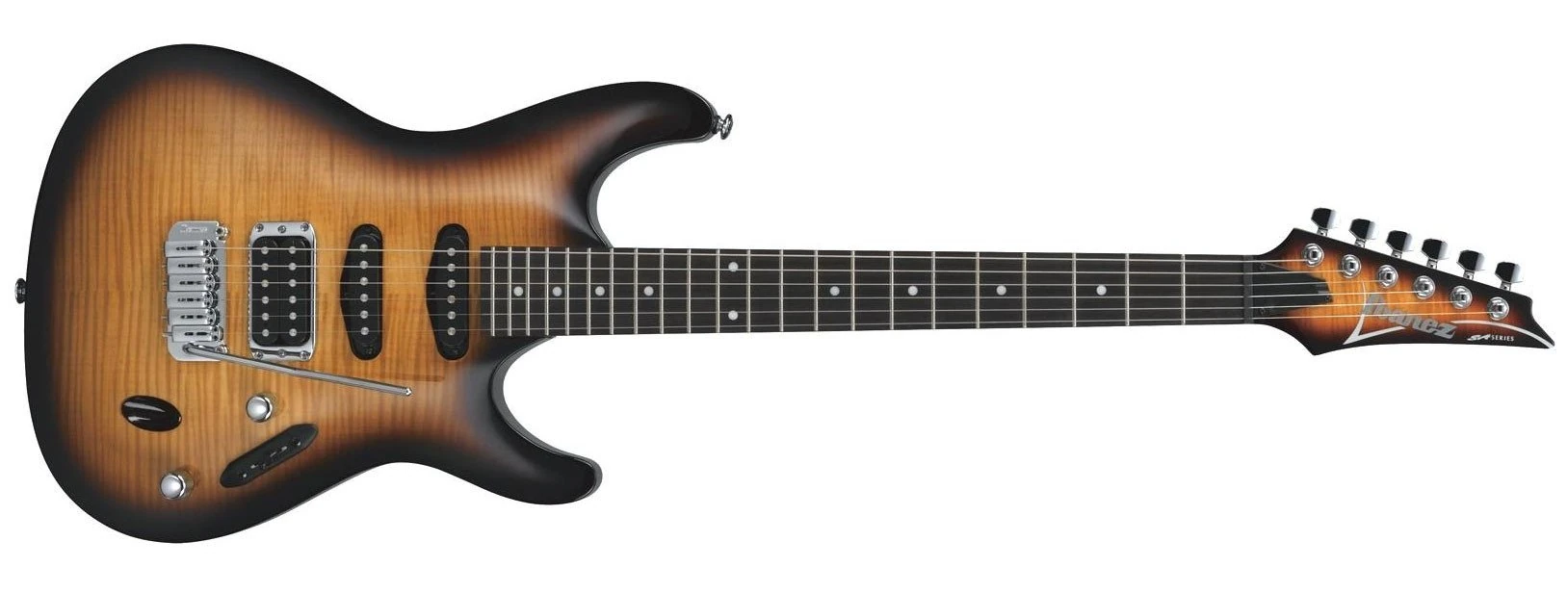

SA160FM TYS
Transparent Yellow Sunburst
