S770PB NTF

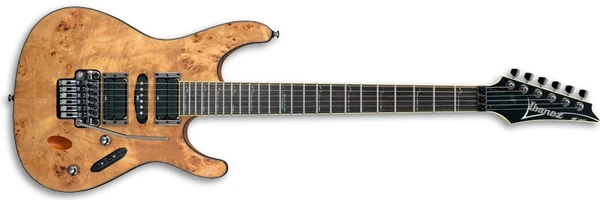

S770PB with Natural Flat finish Red copyright sprite

The S770PB is an S series solid body electric guitar model made by Ibanez. It was introduced in 2010 as a replacement for the S670PB, with a 24-fret neck and a new inlay style. Prior to the introduction in 2008 of the Prestige S5470, all S models had 22 frets. In 2010, the 24-fret neck was rolled out to the entire S series.

The S770PB a poplar burl top with binding on a mahogany body bolted to a maple neck with a 24-fret rosewood fingerboard with binding. Components include Ibanez pickups with a pair of humbuckers flanking a single-coil and a double locking tremolo bridge.

Several changes were introduced in 2014 including swapping out the ZR tremolo for the Edge Zero II and changing the style of the inlays. New pickups were introduced in 2015 along with a new finish.

The S770FM is a similar model with a flamed maple top. A similar model with a mukali flame top, the S770MF, was available briefly in 2015 in Japan. A fixed bridge version is also available, the S771PB.

The S770PB was discontinued after 2016.

Specifications[]

Related content: S series | Models-icon
Specifications for S770PB
Year(s) offered: 2010–2016
Sold in: Japan 2010–2013 / North & South American and Oceania / Europe 2016 / USA
Made in: Indonesia
Finish(es): Natural Flat (NTF) / Charcoal Brown Flat (CNF) 2015–2016
Body
Body type:
Solid body
Body material:
Mahogany w/ poplar burl top w/ binding
Neck joint:
AANJ
Bridge:
2010–2013: ZR tremolo w/ ZPS2
2014–2016: Edge Zero II tremolo
Hardware color:
Cosmo black
Neck
Neck type:
2010: Wizard II
2011–2016: Wizard III
Neck material:
3-piece maple
Scale length:
648mm/ 25½"
Fingerboard material:
Rosewood w/ binding
Fingerboard inlays:
2010–2013: Abalone S24 (S wave)
2014–2016: Offset white dot
Frets:
24 / jumbo
Nut:
Locking
Electronics/ Strings
Pickup configuration:
HSH
Bridge pickup:
2010–2014: INF2 (H)
2015–2016: Quantum (H) passive/ ceramic
Middle pickup:
2010–2014: INFS1 (S)
2015–2016: Quantum (S) passive/ alnico
Neck pickup:
2010–2014: INF1 (H)
2015–2016: Quantum (H) passive/ ceramic
Controls:
Master volume / master tone / 5-way lever pickup selector
String gauge (factory):
.009–.042

Images[]

S770PB CNF

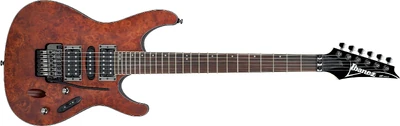

S770PB Charcoal Brown Flat Red copyright sprite
