For the earlier 22-fret model with the same name, see S7420 (2000).

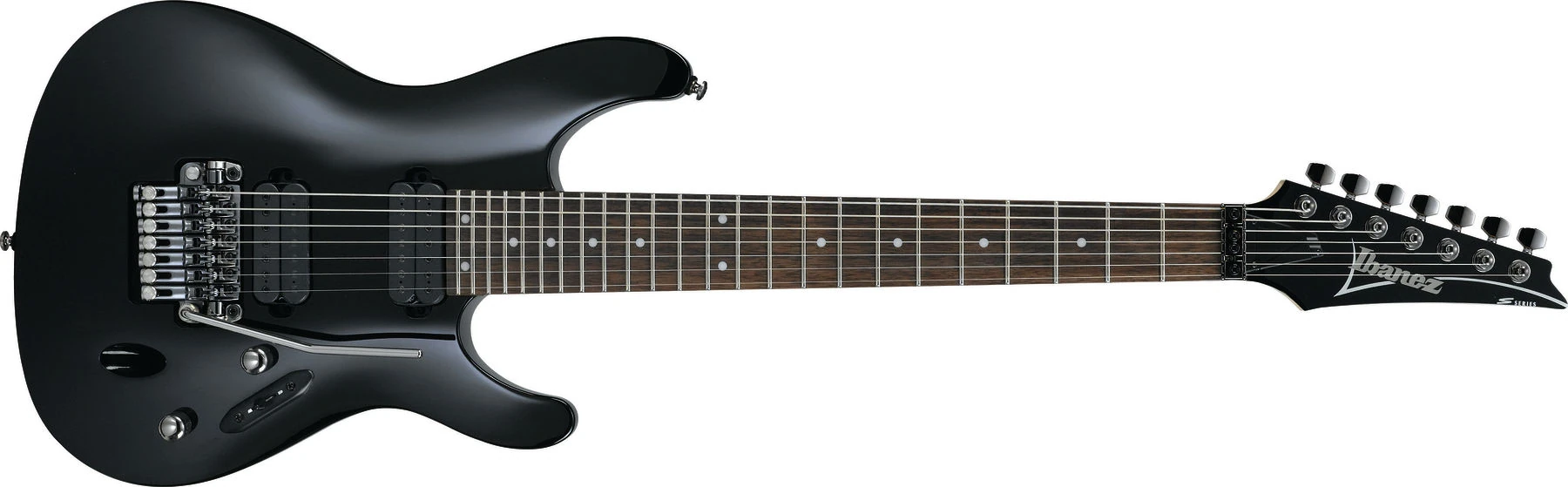

S7420 BK 2010
S7420 BK Red copyright sprite

The S7420 is a seven string S series solid body electric guitar model introduced by Ibanez in 2010. It was made in Indonesia.

It replaced the S7320, with the major difference being the change from a 22-fret to a 24-fret neck. Previously, all S models had 22 frets. In 2008 Ibanez introduced the first 24-fret S Prestige models based around the S5470. In 2010, all S models got a 24-fret neck.

The S7420 features a mahogany body bolted to a maple neck with a 24-fret rosewood fingerboard with pearloid dot position markers. Components include a pair of Ibanez Axis humbucking pickups and a ZR double locking tremolo bridge with a ball-bearing pivot and a removable ZPS2 tuning stabilizer.

A version of this model with quilted maple top, the S7420QM, was sold in 2012–2013.

The S7420 was discontinued after 2013.

Specifications[]

Related content: S series | Models-icon
Specifications for S7420 (2010–2013)
Year(s) offered: 2010–2013
Sold in: Japan 2010–2012 / Europe & Western Asia 2010–2012 / Asia 2010–2012 / USA / North & South America and Oceania 2010, 2013
Made in: Indonesia
Finish(es): Black (BK)
Body
Body type:
Solid body
Body material:
Mahogany
Neck joint:
AANJ
Bridge:
ZR-7 tremolo w/ ZPS2 stabilizer
Knob style:
Knurled metal dome
Hardware color:
Cosmo black
Neck
Neck type:
Wizard II-7
Neck material:
3-piece maple
Scale length:
648mm/ 25½"
Fingerboard material:
Rosewood
Fingerboard inlays:
Pearl dot
Frets:
24 / jumbo
Nut:
Locking (barless)
Electronics
Pickup configuration:
HH
Bridge pickup:
Ibanez Axis Seven 2 (H)
Neck pickup:
Ibanez Axis Seven 1 (H)
Controls:
Master volume / master tone / 5-way lever pickup selector
