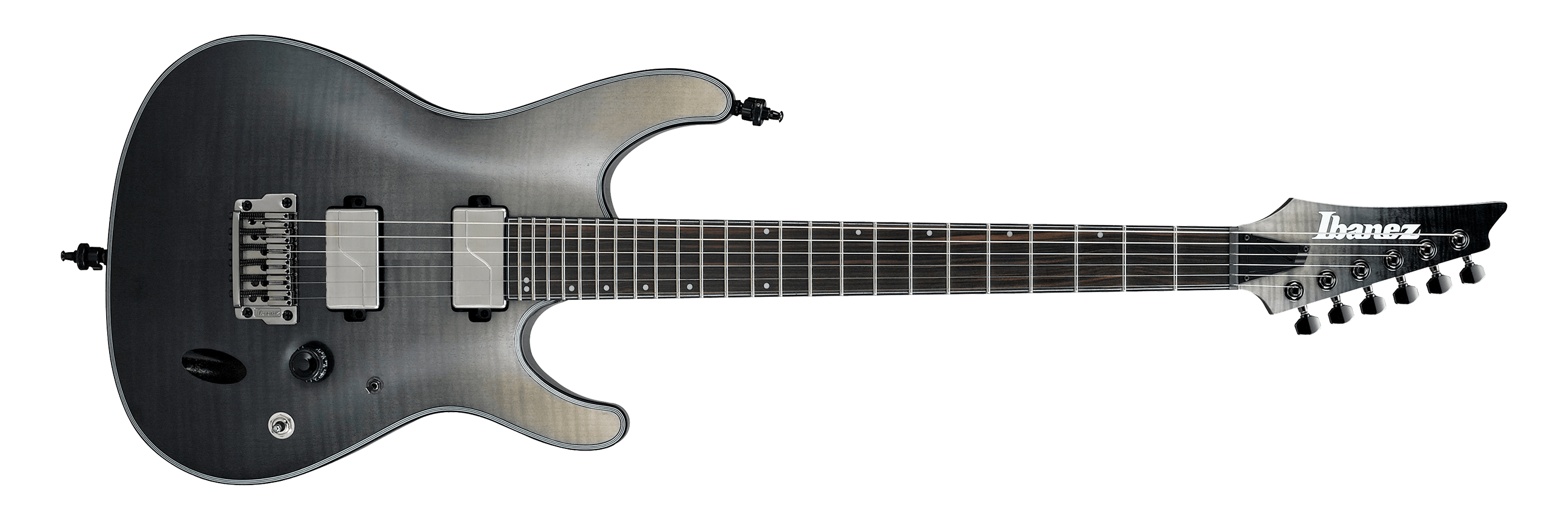

2019 S61AL BML 1P 01
S61AL Black Mirage Gradation Low Gloss Red copyright sprite

The S61AL is an S series solid body electric guitar introduced by Ibanez for 2019. It was made in Indonesia as part of the metal focused Axion Label line.

The S61AL features a flamed maple top with white and black multibinding on a sculpted nyatoh body bolted to a panga panga and walnut Nitro Wizard neck with a luminescent headstock logo and a Macassar ebony fingerboard with 24 Sub Zero treated frets and white step offset dot position markers. Components include a Gibraltar Standard II fixed bridge, dual Fishman Fluence Modern active humbucking pickups with coil-split capability, locking Gotoh tuning machines and Schaller S-Lock strap lock pins.

The S71AL is a similar seven string model. The S671ALB is a related model with a solid nyatoh body, a middle single-coil pickup and black hardware.

The S61AL was discontinued after 2020.

Specifications[]

Related content: Axion Label series | S series | Models-icon
Specifications for S61AL
Model name: S61AL
Year(s) offered: 2019–2020
Sold in: Americas & Oceania / Asia & Africa / China / Europe / USA
Made in: Indonesia
Finish(es): Black Mirage Gradation Low Gloss (BML)
Body
Body type:
Solid body
Body material:
Nyatoh w/ flamed maple top & white/black multi binding
Neck joint:
AANJ
Bridge:
Gibraltar Standard II fixed (10.8mm string spacing)
Strap buttons:
Schaller S-Lock
Knob style:
Sure Grip III (black)
Hardware color:
Cosmo black
Neck
Neck type:
Nitro Wizard
Neck material:
5-piece panga panga/ walnut
Scale length:
648mm/ 25½"
Fingerboard material:
Macassar ebony w/ binding
Fingerboard inlays:
White step offset dot
Luminescent side dot
Frets:
24 / jumbo Sub Zero treated
Nut:
Black plastic (43mm)
Machine heads:
Gotoh SG381 MG-T locking
Electronics/ Strings
Pickup configuration:
HH
Bridge pickup:
Fishman Fluence Modern Humbucker Ceramic (H) active
Neck pickup:
Fishman Fluence Modern Humbucker Ceramic (H) active
Controls:
Single volume / 3-way toggle pickup selector / push-pull Fluence voicing switch on volume / coil-split toggle
Battery:
9V
Output jack:
¼" stereo barrel (angled face mount)
String gauge (factory):
.010/.013/.017/.026/.036/.046 (D'Addario EXL110)
Factory tuning:
1E,2B,3G,4D,5A,6E (E Std.)

Images[]

Additional details
HH 3-way-toggle coil-split-toggle
Pickup switching

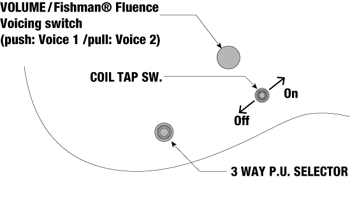

Controls V3 push-pull-Fluence coil-split-toggle
Control layout
2020 S61AL BML 1P 01 back
Rear of body
