2019 S570AH SWK 1P 01
S570 Silver Wave Black Red copyright sprite

The S570AH is an S series solid body electric guitar introduced by Ibanez in 2019. It is produced in Indonesia.

The S570AH features an ash body with white binding bolted to a maple Wizard III neck with a 24-fret jatoba fingerboard with binding and offset white dot position markers. Components include Ibanez Quantum pickups with a pair of humbuckers flanking a single-coil and an Edge Zero II double locking tremolo bridge.

The S670QM is a similar model with a quilted maple top on a meranti body.

Specifications

Specifications for S570AH
Year(s) produced: 2019–2020
Sold in: USA
Made in: Indonesia
Finish(es): Silver Wave Black (SWK)
Body
Body type:
Solid body
Body material:
Ash
Neck joint:
AANJ
Bridge:
Edge Zero II tremolo (10.8mm string spacing)
Knob style:
Knurled metal dome
Hardware color:
Cosmo black
Neck
Neck type:
Wizard III
Neck material:
3-piece maple
Scale length:
648mm/ 25½"
Fingerboard material:
Jatoba w/ binding
Fingerboard inlays:
Offset white dot
Frets:
24 / jumbo
Nut:
Locking barless (43mm)
Machine heads:
Ibanez die-cast
Electronics/ Strings
Pickup configuration:
HSH
Bridge pickup:
Quantum (H) passive/ ceramic
Middle pickup:
Quantum (S) passive/ alnico
Neck pickup:
Quantum (H) passive/ ceramic
Controls:
Master volume / master tone / 5-way lever
Output jack:
¼" stereo barrel
String gauge (factory):
.009/.011/.016/.024/.032/.042 (D'Addario EXL120)
Factory tuning:
1E,2B,3G,4D,5A,6E (E Std.)

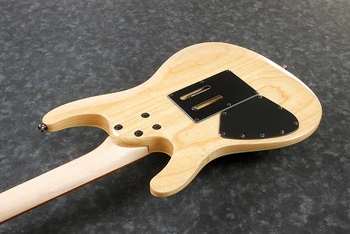

Images

Additional details
HSH 5-way both-splits
Pickup switching
Controls VT5
Control layout
