S5570Q

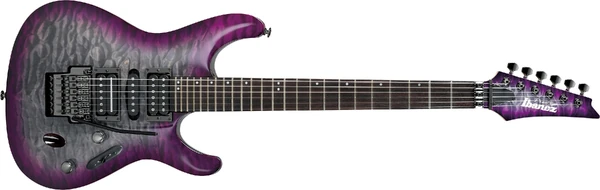

S5570Q Deep Purple Doom Burst (more images)

The S5570Q is an S series solid body electric guitar introduced by Ibanez in 2014. It was made in Japan by FujiGen as part of the upscale Prestige line.

The S5570Q features a quilted maple top on a mahogany body bolted to a titanium reinforced maple and walnut Super Wizard HP neck with a 24-fret rosewood fingerboard with offset white dot position markers. Components include Ibanez pickups with a pair of Hot Grinder humbuckers flanking a Short Tracer single-coil, a Lo-Pro Edge double locking tremolo bridge, a locking nut and Gotoh tuning machines.

The S5570 is a similar model with a natural mahogany top.

The S5570Q was discontinued after 2016.

Specifications

Related content: Prestige series | S series |

Specifications for S5570Q

Model name: S5570Q Year(s) offered: 2014–2016 Sold in: Worldwide Made in: Japan Finish(es): Dark Green Doom Burst (DGD) 2015–2016 / Deep Purple Doom Burst (DPB) 2014–2015 / Regal Brown Burst (RBB)
Body Body type: Solid body Body material: Mahogany w/ quilted maple top Neck joint: AANJ Bridge: Lo-Pro Edge tremolo Hardware color: Cosmo black	Neck Neck type: Super Wizard HP Neck material: 5-piece maple/ walnut w/ KTS titanium rods Scale length: 648mm/ 25½" Fingerboard material: Rosewood Fingerboard inlays: Offset white dot Frets: 24 / jumbo (Prestige edge treatment) Nut: Top-Lok III Machine heads: Gotoh SG381 (non-locking)	Electronics/ Strings Pickup configuration: HSH Bridge pickup: Ibanez HGD2 (H) passive/ ceramic Middle pickup: Ibanez ST2 (S) passive/ alnico Neck pickup: Ibanez HGD1 (H) passive/ alnico Controls: Master volume / master tone / 5-way lever pickup selector String gauge (factory): .009–.042

About this table

Images

Other available finishes

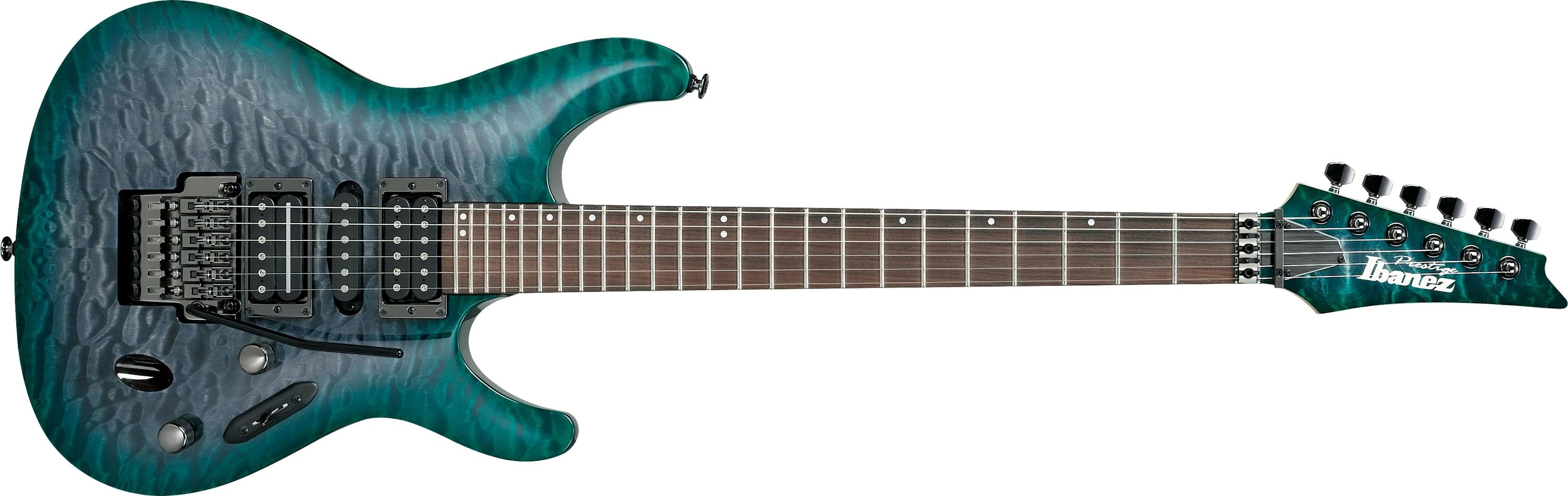

Dark Green Doom Burst

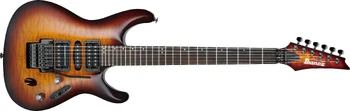

Regal Brown Burst

Sources

• 2014 USA new product catalog (page 6)
• 2015 North America catalog (page 20)
• 2016 Europe catalog (page 25)
• S5570Q product page, Ibanez Japan (website), archived from the original December 2017
