S5470 TKS.gif

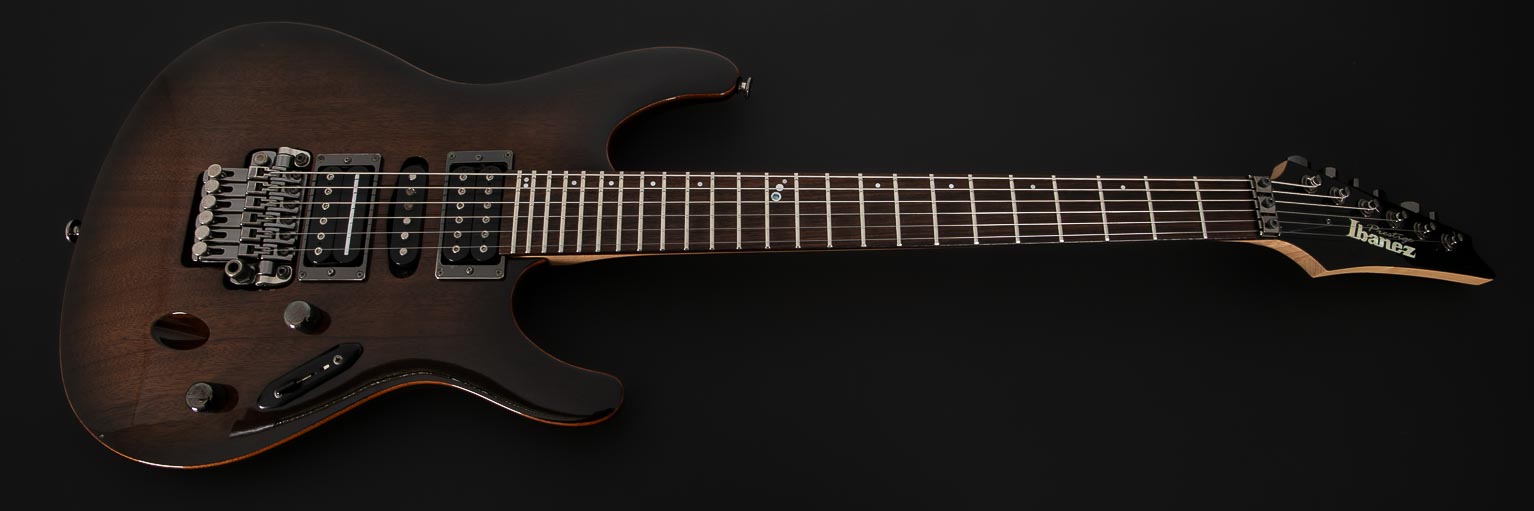

S5470 in Transparent Black Sunburst (more images) Red copyright sprite.png

The S5470 is an S series solid body electric guitar model introduced by Ibanez in 2008. It was made in Japan by FujiGen as part of the upscale Prestige line.

The S5470 was among the first 24-fret S series models made widely available for the public, introduced along with the S5470F, S5470BW and EGEN18 in 2008. Also, it marked the return of S series Prestige production to Japan; all S Prestige models from 2005 to 2007 were made in Korea.

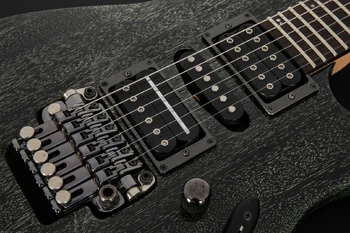

The S5470 features a mahogany body bolted to a maple and walnut neck with a 24-fret rosewood fingerboard with offset dot position markers. Components include Ibanez pickups with a pair of Hot Grinder humbuckers flanking a Short Tracer single-coil, a ZR2 double locking tremolo bridge with a removable ZPS3 tuning stabilizer, a locking nut and Gotoh tuning machines.

In 2009 a new version of the Short Tracer middle pickup was introduced. For 2010 the neck was changed and KTS titanium reinforcing rods were added.

The S5470 was discontinued after the 2013 model year. It was replaced for 2014 by the S5570 which is a very similar guitar with a Lo-Pro Edge tremolo.


Specifications for S5470
Model name: S5470
Year(s) produced: 2008–2013
Sold in: Worldwide
Made in: Japan
Finish(es): BBK (Biker's Black) 2008–2009 / CLM (Cosmic Blue Mica) 2009 / RDO (Red Optimus) 2009 / SOL (Stained Oil) 2008 / TKS (Transparent Black Sunburst) / TR (Transparent Red) 2008
Body type:
Solid body
Body material:
Neck joint:
ZR2 tremolo w/ ZPS3
Hardware color:
Cosmo black
Neck type:
2008–2009: Wizard Prestige
2010–2013: Super Wizard HP Prestige w/ KTS titanium rods
Neck material:
5-piece maple/ walnut
Fingerboard material:
Fingerboard inlays:
Off-set pearl dot / S Prestige
24 / jumbo
Barless Top-Lok

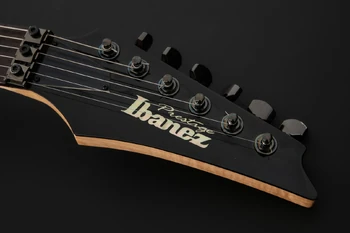

Machine heads:

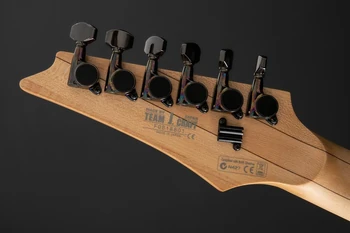

Gotoh SG381
Pickup configuration:
Bridge pickup:
Ibanez Hot Grinder 2
Middle pickup:
2008: Ibanez Short Tracer 1
2009–2013: Ibanez Short Tracer 2
Neck pickup:
Ibanez Hot Grinder 1
Master volume / master tone / 5-way lever pickup selector


Other available finishes

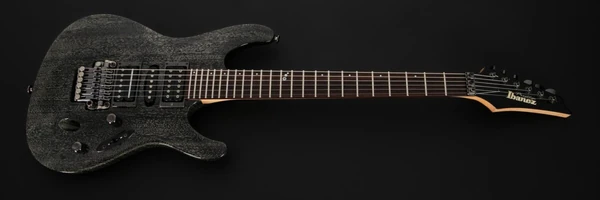

S5470 BBK.gif

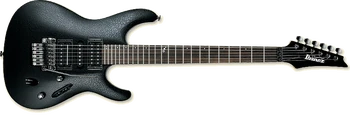

Biker's Black
S5470 CLM.jpg

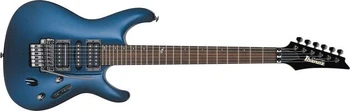

Cosmic Blue Mica
S5470 RDO.gif

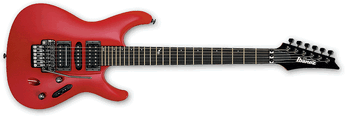

Red Optimus

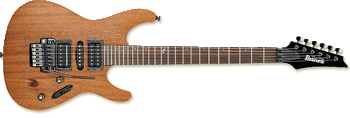

S5470 SOL.gif

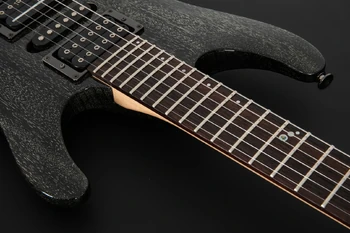

Stained Oil
S5470 TR.gif

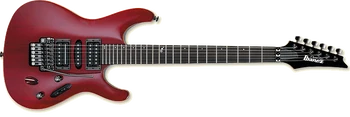

Transparent Red
