2002 S1540FM TTS

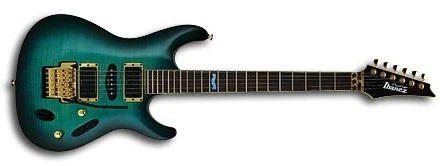

S1540FM Transparent Turquoise Sunburst (more images) Red copyright sprite

The S1540FM is an S series solid body electric guitar model introduced by Ibanez in 2000. It is part of the high end Prestige line. It replaced the S540FM.

The S1540FM features a mahogany body with a flame maple top mated to a maple and bubinga Wizard Prestige neck with a 22-fret bound rosewood fingerboard with a special inlay at the 12th fret. Components include Ibanez Quantum pickups, a locking nut and a double locking tremolo bridge.

The S1540QS is a similar model with a quilted sapele top and the S1540QM is another similar model with a quilted maple top.

In 2001 a new inlay style was introduced. The S1540FM was discontinued after 2002.

Specifications[]

Related content: Prestige series | S series | Models-icon
Specifications for S1540FM
Model name: S1540FM
Year(s) offered: 2000–2002
Sold in: Europe / Japan
Made in: Japan
Finish(es): TTS (Transparent Turquoise Sunburst) / VV (Vintage Violin)
Body
Body type:
Solid body
Body material:
Mahogany w/ flame maple top
Neck joint:
AANJ
Bridge:
Lo-Pro Edge tremolo
Hardware color:
Gold
Neck
Neck type:
Wizard Prestige
Neck material:
3-piece maple/ bubinga
Fingerboard material:
Rosewood w/ binding
Fingerboard inlays:
2000: Special S at 12th
2001-2002: S Wave at 12th
Frets:
22 / jumbo
Nut:
Top-Lok III
Electronics
Pickup configuration:
HSH
Bridge pickup:
Ibanez QM2
Middle pickup:
Ibanez QMS1
Neck pickup:
Ibanez QM1
Controls:
Master volume / master tone / 5-way lever pickup selector

Images[]

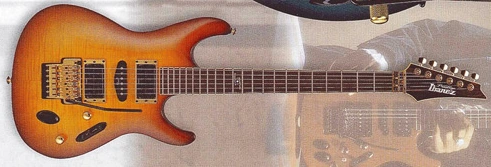

2000 S1540FM VV
S1540FM Vintage Violin Red copyright sprite
