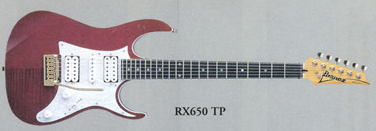

1994 RX650 TP
RX650 Transparent Purple (more images) Red copyright sprite

The RX650 is a solid body electric guitar introduced by Ibanez in 1994. It was produced in South Korea as part of the entry level RX series. Two distinct versions of the RX650 were produced for the US and European markets.

The US-spec RX650 features a light American maple body and chrome hardware. The European version has an alder body and gold hardware. Both versions have a flame maple top and a maple neck with a rosewood fingerboard which is bolted to the body with a traditional metal plate. Components include a synchronized tremolo bridge and white Ibanez Axis pickups in an HSH configuration which are mounted to a white pickguard. The humbucker can be coil-split for a single-coil like tone.

The RX350 is a similar model without the exotic top.

The RX650 was discontinued after 1995.

Specifications[]

Related content: RX series | Models-icon
Specifications for RX650
Model name: RX650
Year(s) offered: 1994–1995
Sold in: Europe / USA
Made in: South Korea
Finish(es): Amber (AM) / Transparent Green (TG) / Transparent Purple (TP) / Transparent Red (TR) 1994
Body
Body type:
Solid body
Body material:
1994 (USA): Light American maple w/ flame maple top
1994–1995 (EU): Alder w/ flame maple top
Neck joint:
Bolt-on w/ metal plate
Bridge:
TZ100 tremolo
Pickguard:
White
Knob style:
Plastic top hat (white)
Hardware color:
1994 (USA): Chrome
1994–1995 (EU): Gold
Neck
Neck type:
RX
Neck material:
1-piece maple w/ bubinga stripe
Scale length:
648mm/ 25½"
Fingerboard material:
Rosewood
Fingerboard inlays:
Pearl dot
Frets:
22 / medium
Electronics
Pickup configuration:
HSH
Bridge pickup:
Ibanez AH2 (H)
Middle pickup:
Ibanez AS1 (S)
Neck pickup:
Ibanez AH1 (H)
Controls:
Master volume / master tone / 5-way lever pickup selector / push/pull coil-split on volume

Images[]

Additional finishes & details

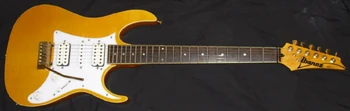

1995 RX650 AM
Amber

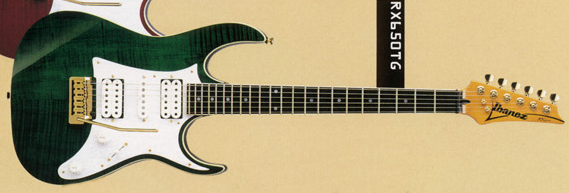

1995 RX650 TG
Transparent Green
Transparent Red
Wiring-diagram 1994 RX-HSH-AHpickups
Wiring diagram[1]
Wimage An image for this article is missing!
An image of the RX650 Transparent Red (TR) is wanted for this article. You can help by finding, uploading and adding it!

Sources[]

  1. RX650 wiring diagram, Ibanez USA, archived April 2003
