RT650GF DA.jpg
RT650GF Dark Amber (more images) Red copyright sprite.png

The RT650GF is an RT series solid body electric guitar model introduced by Ibanez in 1992. The RT series was a "retro" version of the RG. Instead of a locking tremolo and high-output pickups, it featured a more traditional appearance and sound.

The RT650GF features an alder body with a gravure flame top bolted to a maple Viper neck with a traditional profile and a 24-fret bound rosewood fingerboard with dot position markers. Components include Ibanez Vintage pickups with a pair of humbuckers (which can be coil-split) flanking a single-coil, a TZ synchronized tremolo bridge and Gotoh locking machine heads.

The RT650GF was listed as the RT650 in the 1993 US catalog with GFB (Gravure Flame Blue) and GFR (Gravure Flame Red) as finishes.

Specifications

Specifications for RT650GF
Model name: RT650GF / RT650 US only
Year(s) produced: 1992–1993
Sold in: Worldwide
Made in: Japan
Finish(es): DA (Dark Amber) / TB (Transparent Blue) [a.k.a. GFB (Gravure Flame Blue)] / TR (Transparent Red) [a.k.a. GFR (Gravure Flame Red)]
Body
Body type:
Solid body
Body material:
Alder w/ gravure flame top w/ binding
Neck joint:
Traditional square heel bolt-on
Bridge:
TZ-6 / TZ-II tremolo
Pickguard:
White pearloid
Knob style:
Plastic top hat
Hardware color:
Chrome
Neck
Neck type:
Viper
Neck material:
1-piece maple
Scale length:
648mm/ 25½"
Fingerboard material:
Rosewood w/ binding
Fingerboard inlays:
Pearl dot
Frets:
24 / regular
Machine heads:
Gotoh SG381 Magnum locking
Electronics/ Strings
Pickup configuration:
HSH
Bridge pickup:
Ibanze V8 (H)
Middle pickup:
Ibanez S1 (S)
Neck pickup:
Ibanez V7 (H)
Controls:
Master volume / master tone / 5-way lever pickup selector / push-pull coil-split on tone
Output jack:
¼" stereo barrel (side mounted)
Factory tuning:
1E,2B,3G,4D,5A,6E (E Std.)

Images

Other available finishes
RT650GF TB.jpg
Transparent Blue (a.k.a. Gravure Flame Blue)
RT650GF TR.jpg

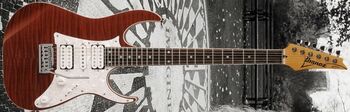

Transparent Red (a.k.a. Gravure Flame Red)
