1992 RT140 DR
RT140 Deep Red (more images) Red copyright sprite

The RT140 is an RT series solid body electric guitar model introduced by Ibanez in 1992. The RT series are "retro" guitars based on the RG series. Instead of a locking tremolo and high-output pickups, they featured a more traditional appearance and sound — sort of a cross between and RG and a Fender Stratocaster.

The RT140 has a basswood body (unlike most other RT's which use alder) bolted to a maple Viper neck with a 24-fret rosewood fingerboard with dot position markers. Components include Ibanez pickups mounted in a white pickguard with a humbucker at the bridge and single-coils in the neck and middle positions and a standard synchronized tremolo bridge.

The RT150 is a similar model with a humbucker in the neck position replacing this model's single coil pickup.

The RT140 was produced for only a single year.

Specifications[]

Related content: RT series | Models-icon
Specifications for RT140
Model name: RT140
Year(s) offered: 1992
Sold in: Europe / Japan
Made in: Japan
Finish(es): Black (BK) / Deep Red (DR) / Vintage White (VW)
Body
Body type:
Solid body
Body material:
Basswood
Neck joint:
Bolt-on
Bridge:
Standard tremolo
Pickguard:
White
Hardware color:
Chrome
Neck
Neck type:
Viper
Neck material:
1-piece maple
Scale length:
648mm/ 25½"
Fingerboard material:
Rosewood
Fingerboard inlays:
Pearl Dot
Frets:
24 / regular
Electronics
Pickup configuration:
HSS
Bridge pickup:
Ibanez V6F (H)
Middle pickup:
Ibanez RTS (S)
Neck pickup:
Ibanez RTS (S)
Controls:
Master volume / master tone / 5-way lever pickup selector

Images[]

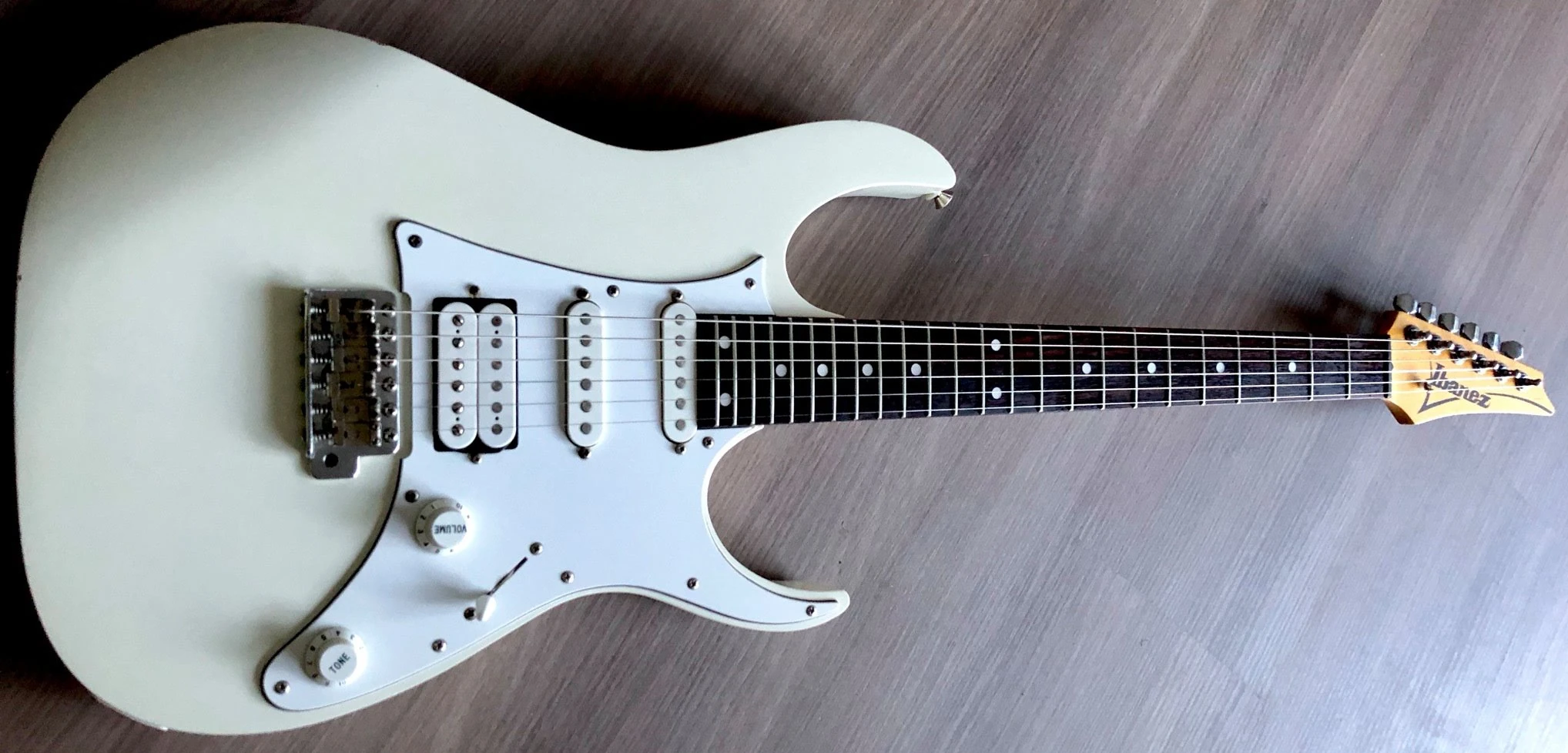

1992 RT140 VW
RT140 Vintage White image courtesy Chris Siktar Red copyright sprite
Wimage An image for this article is missing!
An image of the RT140 Black (BK) is wanted for this article. You can help by finding, uploading and adding it!
