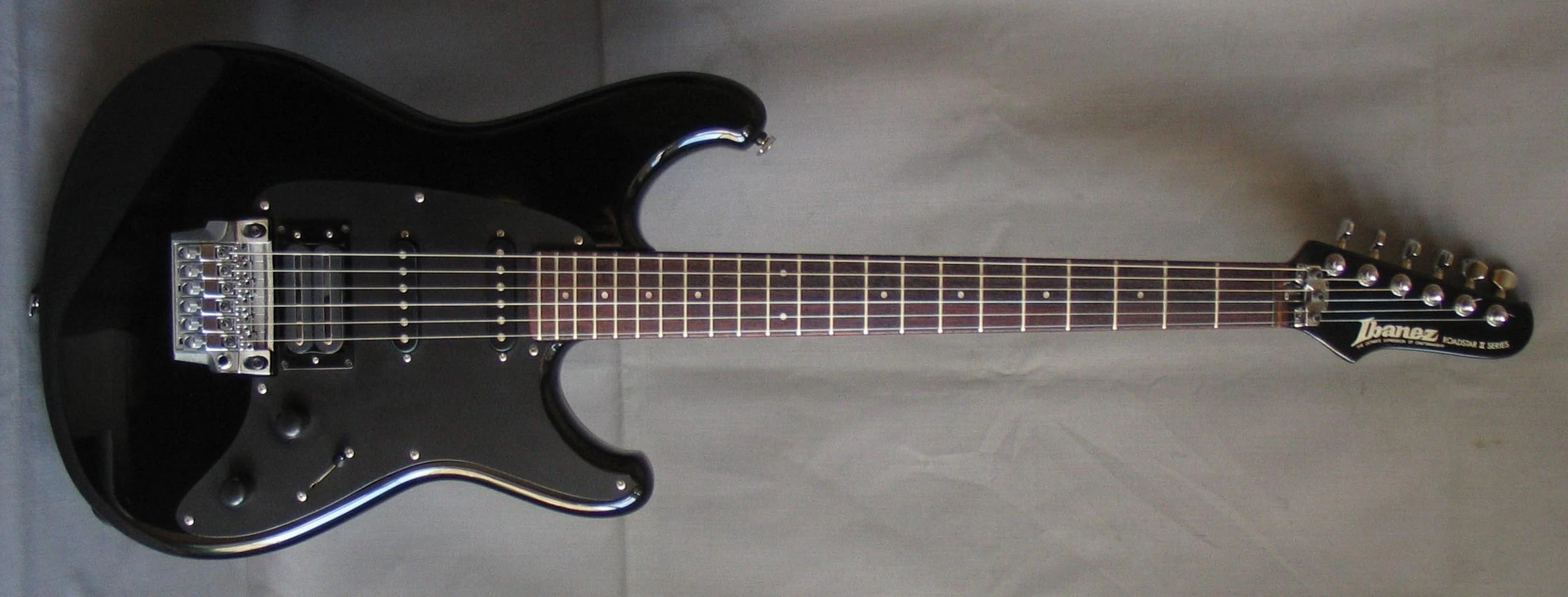

RS440 Black (more images) Red copyright sprite.png

The RS440 is a Roadstar II series solid body electric guitar model introduced by Ibanez in 1984.

The RS440 features a birch top on a basswood body bolted to a maple neck with a 22-fret rosewood fingerboard with dot position markers. Components include three Ibanez pickups mounted in a black pickguard with a V5 humbucker at the bridge (which can be split with the Duo Sonic switch) and Super 7 single-coils in the neck and middle positions, a Pro Rock'r double locking tremolo bridge with a locking nut, Tek Grip control knobs and Smooth Tuner II tuning machines.

The birch top was discontinued for 1985.

The RS430 is a similar model with a different pickup configuration.

The RS440 was discontinued after 1985. It was replaced by the RG440.

Specifications

Specifications for RS440
Model name: RS440
Year(s) produced: 1984–1985
Sold in: Europe (?) / USA
Made in: Japan
Finish(es): Black (BK) / Fire Red (FR) / Royal Violet (RV) / White (WH) 1984
Body
Body type:
Solid body
Body material:
1984: Basswood w/ birch top
1985: Basswood
Neck joint:
Bolt-on traditional square heel
Bridge:
Pro Rock'r tremolo
Pickguard:
Black
Knob style:
Tek Grip
Hardware color:
Chrome
Neck
Neck type:
Roadstar DX
Neck material:
1-piece maple
Scale length:
648mm/ 25½"
Fingerboard material:
Rosewood
Fingerboard inlays:
Pearl dot
Frets:
22
Nut:
Top Lok
Machine heads:
Smooth Tuner II
Electronics
Pickup configuration:
HSS
Bridge pickup:
Ibanez V5 (H)
Middle pickup:
Ibanez Super 7 (S)
Neck pickup:
Ibanez Super 7 (S)
Controls:
Master volume / master tone / 5-way lever pickup selector / push-push Duo Sound switch on volume

Images

Other available finishes
1985 RS440 FR.png
Fire Red
1985 RS440 RV.jpg
Royal Violet

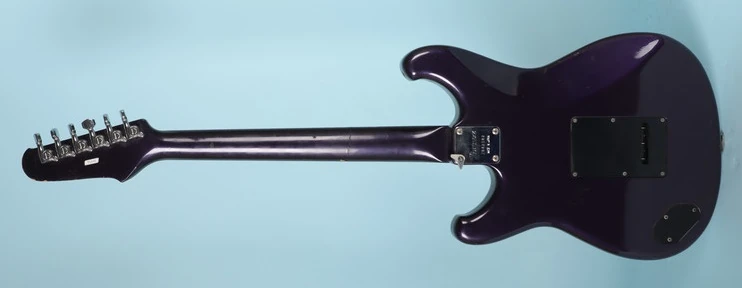

1985 RS440 RV rear.jpg
Royal Violet (rear)

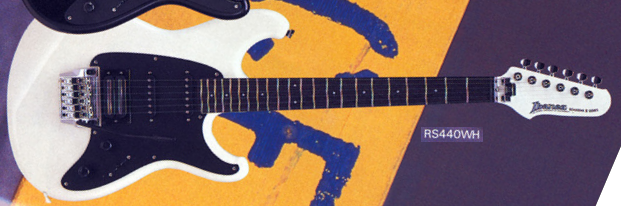

1985 RS440 WH.png
White
