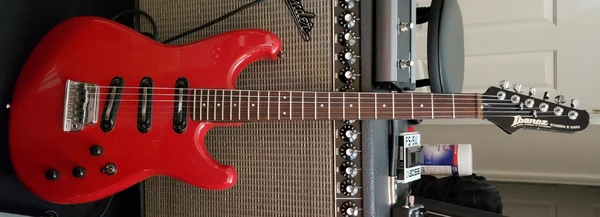

1985 RS230 RD
RS230 Red (more images) Red copyright sprite

The RS230 is a Roadstar II series solid body electric guitar model introduced by Ibanez in 1985.

The RS230 features a basswood body bolted to a maple neck with a 22-fret rosewood fingerboard with dot position markers. Components include three Ibanez direct-mounted V7 single coil pickups with the bridge pickup mounted askew, a Powerocker synchronized tremolo bridge, a graphite nut, knurled Tek Grip control knobs, Smooth Tuner II machine heads and a side-mounted output jack.

The RS240 and RS320 are similar models with different pickup configurations. The RS135 is a related model with different pickups mounted in a pickguard and a maple fretboard.

The RS230 was discontinued after 1985.

Specifications[]

Related content: Roadstar II series | Models-icon
Specifications for RS230
Year(s) offered: 1985
Sold in: USA
Made in: Japan
Finish(es): Black (BK) / Red (RD) / White (WH)
Body
Body type:
Solid body
Body material:
Basswood
Neck joint:
Bolt-on traditional square heel
Bridge:
Powerocker tremolo
Knob style:
Tek Grip
Hardware color:
Chrome
Neck
Neck type:
Roadstar STD
Neck material:
1-piece maple
Scale length:
648mm/ 25½"
Fingerboard material:
Rosewood
Fingerboard inlays:
Pearloid dot
Frets:
22
Nut:
Graphite
Machine heads:
Smooth Tuner II
Electronics
Pickup configuration:
SSS
Bridge pickup:
Ibanez V7T (S) askew
Middle pickup:
Ibanez V7T (S)
Neck pickup:
Ibanez V7T (S)
Controls:
Two volumes / master tone / 3-way toggle pickup selector

Images[]

Other available finishes
Wimage An image for this article is missing!
An image of the RS230 Black (BK) and White (WH) is wanted for this article. You can help by finding, uploading and adding it!
