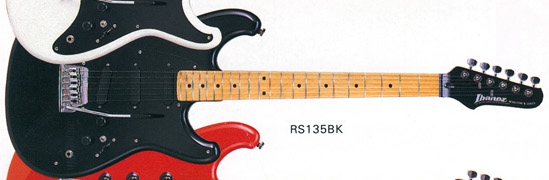

1985 RS135 BK.jpg
RS135 Black (more images) Red copyright sprite.png

The RS135 is a Roadstar II series solid body electric guitar model introduced by Ibanez in 1983

The RS135 features a birch top on a basswood body bolted to a maple neck with a 22-fret maple fingerboard with black dot position markers. Components include three Ibanez Super 5 single coil pickups mounted in a white pickguard with the bridge pickup askew, a pickup phase mini-toggle switch, a Powerocker synchronized tremolo bridge, a graphite nut, Sure Grip II control knobs and Smooth Tuner II machine heads. The headstock is finished to match the body.

A special version of the RS135 dubbed the Comet Series was launched in mid-1984. These featured four bright, new finishes with matching pickup covers and headstocks as well as special versions of the black and white guitars with unpainted, natural headstocks. The Comet Series versions were offered only in 1984.

Several changes were introduced for 1985, including eliminating the birch top, replacing the white pickguard with a black one with a different shape and replacing the Sure Grip II knobs with Tek Grip knobs.

The RS135L is a left-handed version which was offered in 1985. The RS130 is a similar model with a fixed bridge. The RS230 is a related model with different pickups, no pickguard and a rosewood fretboard.

The RS135 was discontinued after 1985. It was replaced for 1986 by the RG135.

Specifications

Related content: Roadstar II series | Models-icon.png
Specifications for RS135
Year(s) offered: 1983–1985
Sold in: USA/UK
Made in: Japan
Finish(es): Black (BK) / Red (RD) 1985 / White (WH)
  Comet series (2014 only): Black (BK) / Comet Blue (COB) / Comet Green (COG) / Comet Red (COR) / Comet Yellow (COY) / White (WH)
Body
Body type:
Solid body
Body material:
Basswood
Neck joint:
Bolt-on traditional square heel
Bridge:
Powerocker tremolo
Pickguard:
1984: 3-ply white/ black/ white
1985: Black
Knob style:
1984: Sure Grip II black
1985: Tek Grip black
Hardware color:
Chrome
Neck
Neck type:
Roadstar STD
Neck material:
1-piece maple
Scale length:
648mm/ 25½"
Fingerboard material:
Maple
Fingerboard inlays:
Black dot
Frets:
22
Nut:
Graphite
Machine heads:
Smooth Tuner II
Electronics
Pickup configuration:
SSS
Bridge pickup:
Ibanez Super 5 (S) askew
Middle pickup:
Ibanez Super 5 (S)
Neck pickup:
Ibanez Super 5 (S)
Controls:
Master volume / master tone / 5-way lever pickup selector / mini-toggle phase switch

Images

Other available finishes

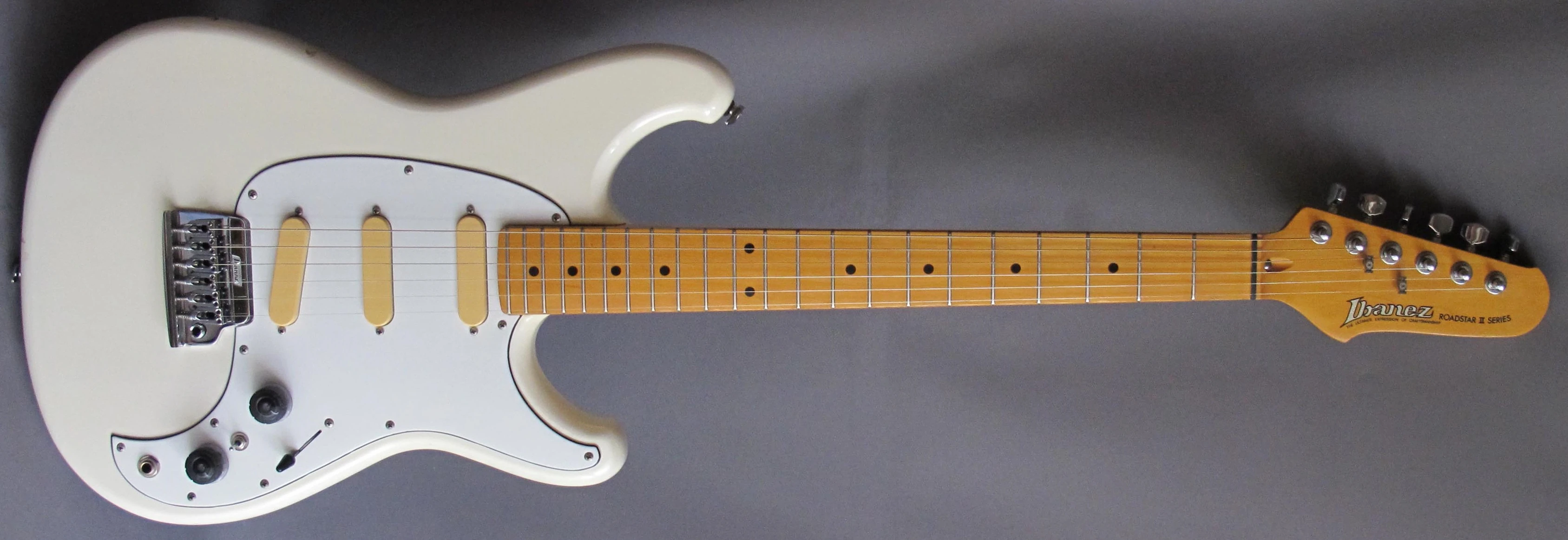

1985 RS135 WH.jpg
White
Comet Series finishes

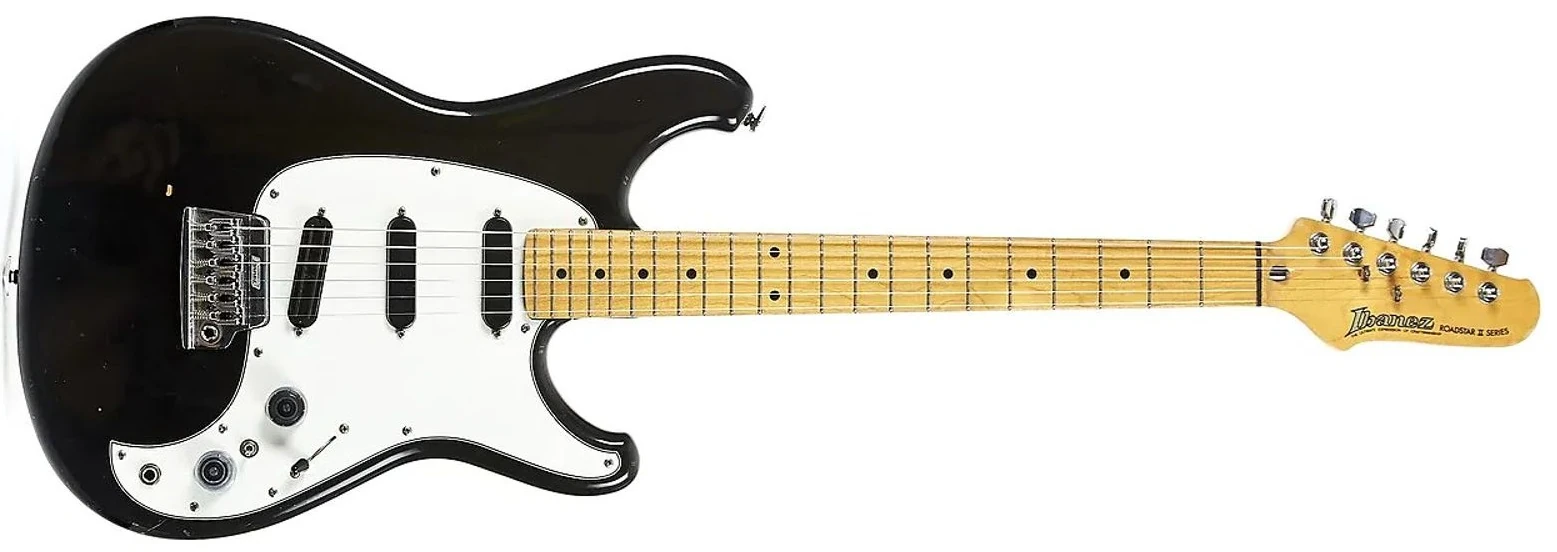

1984 RS135 BK.jpg
Black

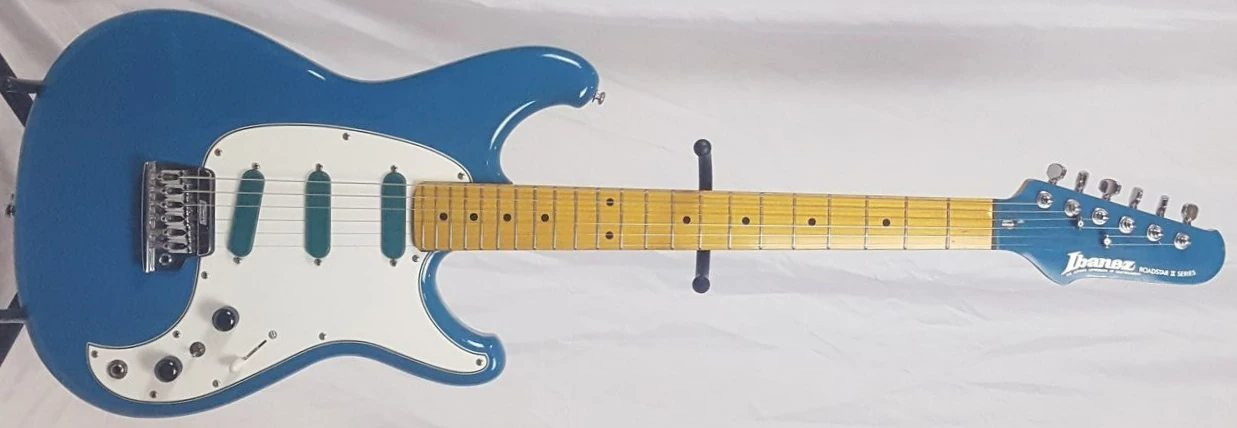

1984 RS135 COB.jpg
Comet Blue
1984 RS135 COG.jpg
Comet Green
1984 RS135 COR.jpg
Comet Red

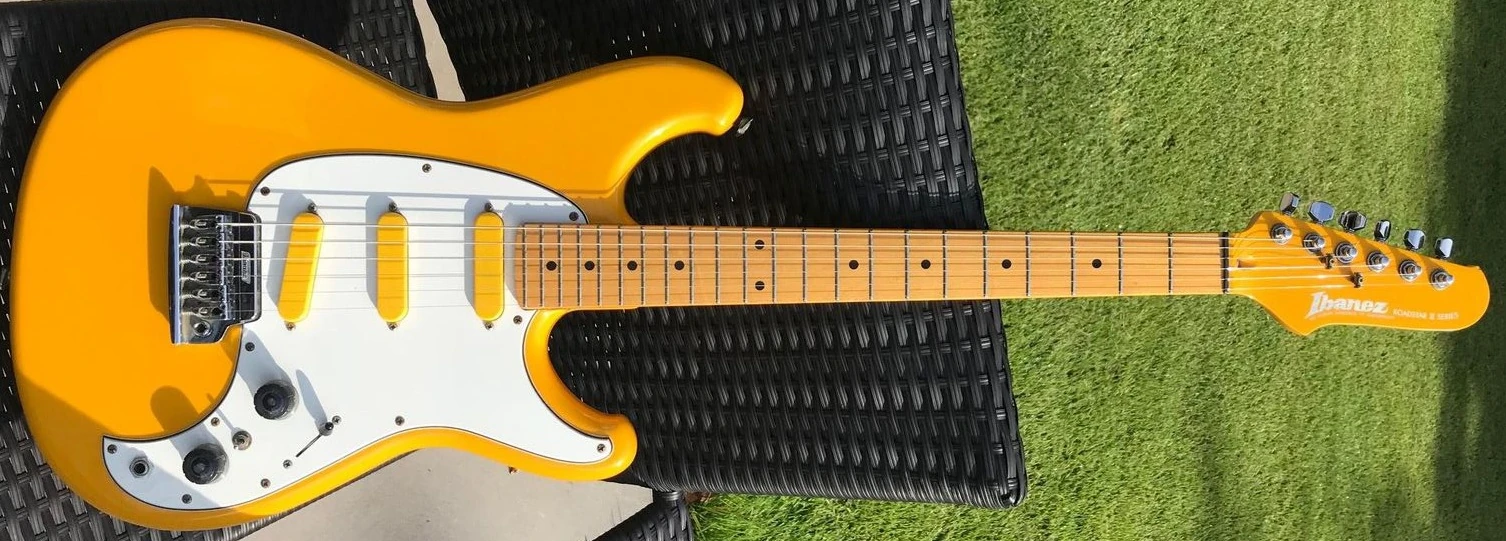

1984 RS135 COY.jpg
Comet Yellow

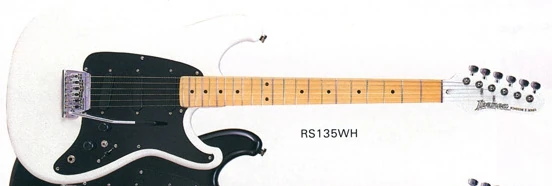

1984 RS135 WH.jpg
White
Wimage.jpg An image for this article is missing!
An image of the RS135 Red (RD) is wanted for this article. You can help by finding, uploading and adding it!
