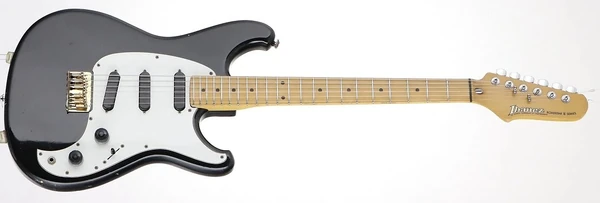

1984 RS130 BK

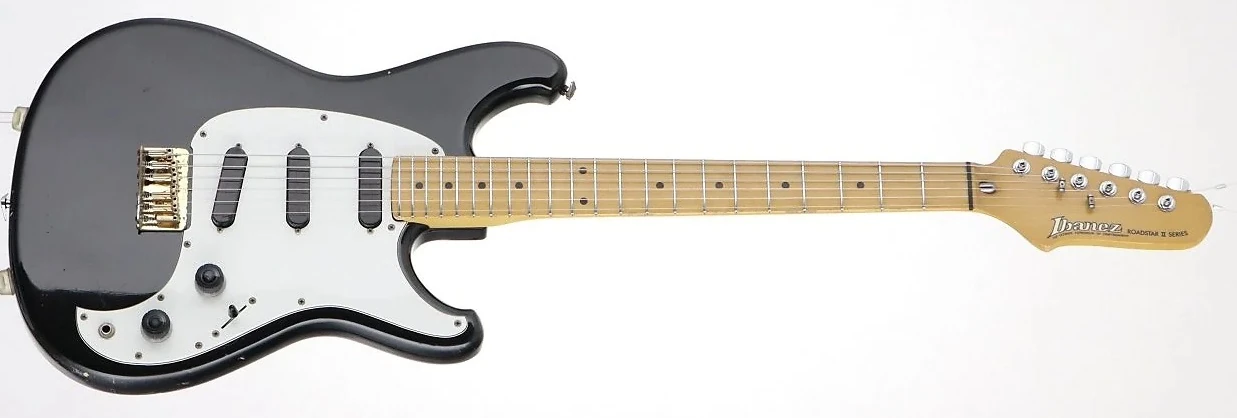

RS130 Black (more images) Red copyright sprite

The RS130 is a Roadstar II series solid body electric guitar model introduced by Ibanez in 1984.

The RS130 features a birch top on a basswood body bolted to a maple neck with a 22-fret maple fingerboard with black dot position markers. Components include three Ibanez Super 5 single coil pickups mounted in a white pickguard with the bridge pickup askew, a brass fixed bridge, a graphite nut, Sure Grip II control knobs and Smooth Tuner II machine heads.

The RS135 is a related model with a tremolo bridge.

The RS130 was offered only in 1984.

Specifications

Specifications for RS130
Year(s) produced: 1984
Sold in: Europe / USA
Made in: Japan
Finish(es): Black (BK) / White (WH)
Body
Body type:
Solid body
Body material:
Basswood w/ birch top
Neck joint:
Bolt-on traditional square heel
Bridge:
Brass 1 fixed
Pickguard:
3-ply white/ black/ white
Knob style:
Sure Grip II black
Hardware color:
Chrome
Neck
Neck type:
Roadstar STD
Neck material:
1-piece maple
Scale length:
648mm/ 25½"
Fingerboard material:
Maple
Fingerboard inlays:
Black dot
Frets:
22
Nut:
Graphite

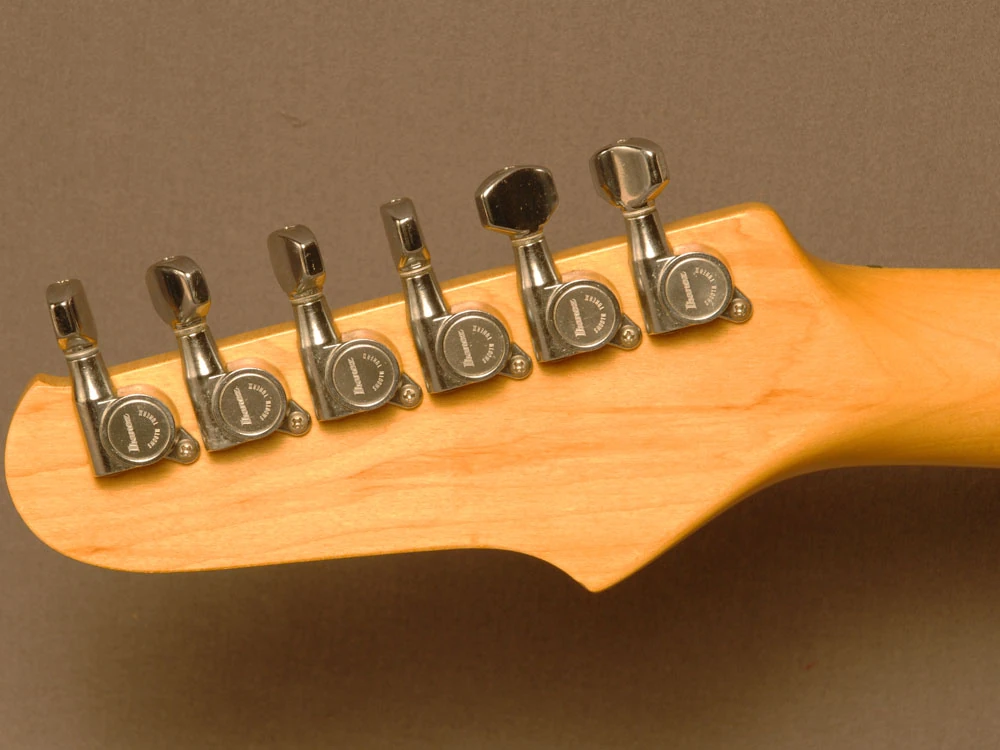

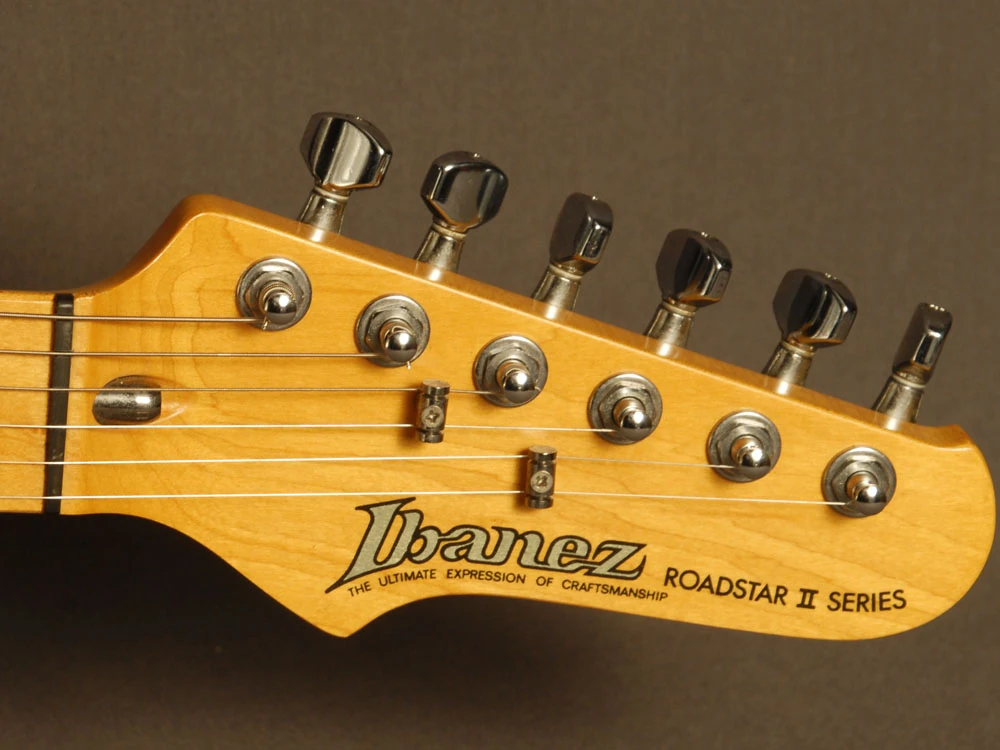

Machine heads:
Smooth Tuner II
Electronics
Pickup configuration:
SSS
Bridge pickup:
Ibanez Super 5 (S) askew
Middle pickup:
Ibanez Super 5 (S)
Neck pickup:
Ibanez Super 5 (S)

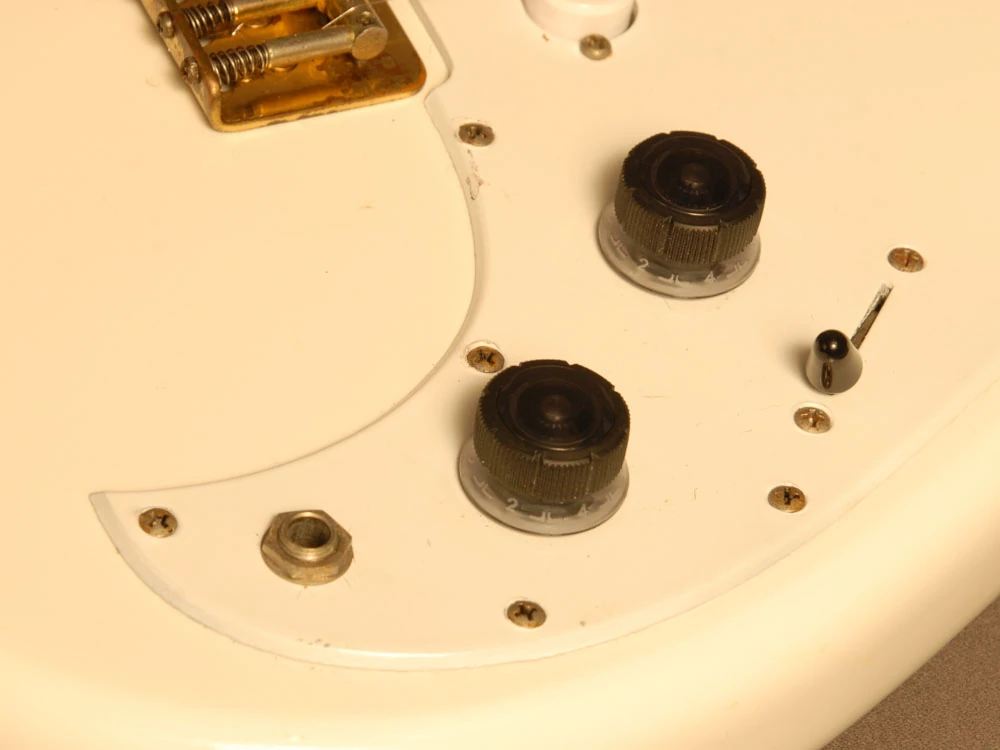

Controls:
Master volume / master tone / 5-way lever

Images

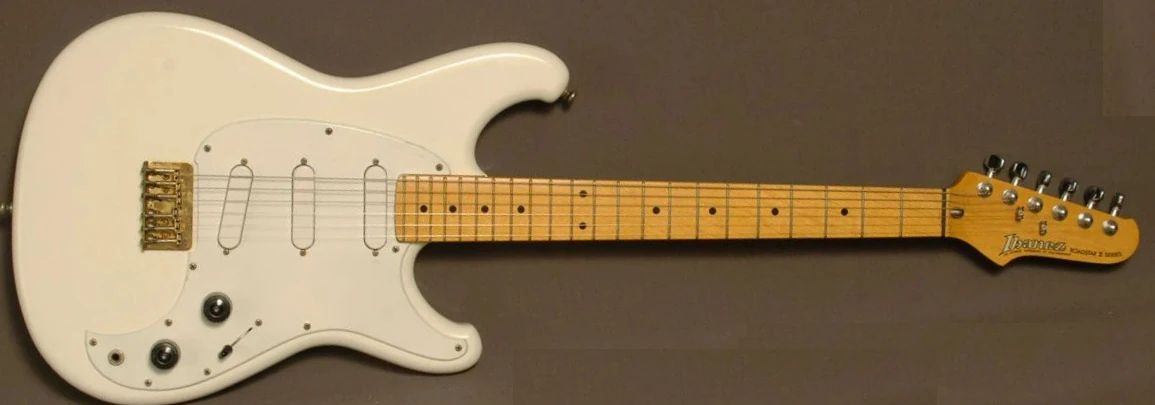

RS130 White Red copyright sprite
Wimage An image for this article is missing!
An image of the RS130 White (WH) is wanted for this article. You can help by finding, uploading and adding it!
