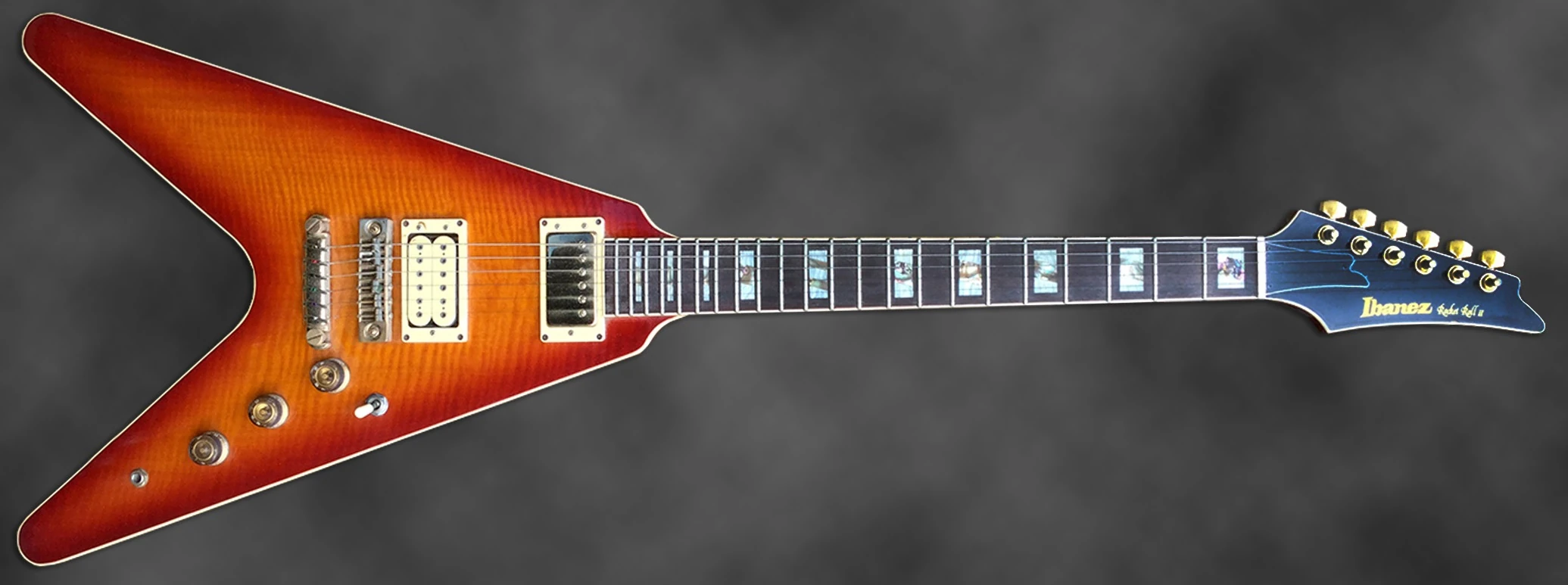

1982 RR400 CS
RR400 Cherry Sunburst Red copyright sprite

The RR400 is a Rocket Roll II series solid body electric guitar model introduced by Ibanez for 1982. It was made in Japan by FujiGen.

The RR400 features a flame maple top with cream binding on a vee-shaped basswood body mated to a set-in 3-ply maple neck with a 22-fret rosewood fingerboard with binding and pearloid dot position markers. Components include a Gibraltar fixed bridge, Quik Change tailpiece, a pair Ibanez humbucking pickups with a gold covered Super 58 at the neck and an uncovered V2 with white bobbins at the bridge, Sure Grip knobs, and Smooth Tuner II machine heads. The output jack is mounted on the side of the guitar.

The RR50 is a related model without the flame maple top and with a different neck pickup, dot fretboard inlays and chrome hardware.

This RR400 was discontinued after 1982. It was replaced for 1983 by the tremolo-equipped RR550.

Specifications[]

Related content: Rocket Roll II series | Models-icon
Specifications for RR400
Model name: RR400
Year(s) offered: 1982
Sold in: Worldwide
Made in: Japan
Finish(es): Cherry Sunburst (CS)
Body
Body type:
Solid body
Body material:
Basswood w/ flame maple top and cream binding
Neck joint:
Set-in
Bridge:
Gibraltar fixed
Tailpiece:
Quik Change
Pickguard:
None
Knob style:
Sure Grip (gold)
Hardware color:
Gold
Neck
Neck type:
Rocket Roll
Neck material:
3-piece maple
Scale length:
628mm/ 24¾"
Fingerboard material:
Rosewood w/ binding
Fingerboard inlays:
Pearloid & abalone split block
Frets:
22 / medium
Machine heads:
Smooth Tuner II
Electronics/ Strings
Pickup configuration:
HH
Bridge pickup:
Ibanez V2 white, uncovered (H)
Neck pickup:
Ibanez Super 58 chrome cover (H)
Controls:
Two volumes / master tone / 3-way toggle pickup selector
Output jack:
¼" mono (side mounted)
Factory tuning:
1E,2B,3G,4D,5A,6E (E Std.)

Images[]

Additional details
HH 3-way toggle
Pickup switching
Controls 2VT3 RocketRoll
Control layout
