RGT6EXFX BK 2010

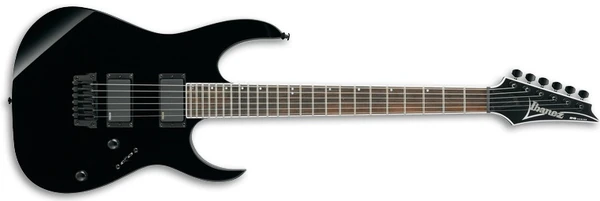

RGT6EXFX Black (2010) (more images) Red copyright sprite

The RGT6EXFX is an RG series solid body electric guitar model introduced by Ibanez in 2006. It was initally produced in South Korea, but was production moved to Indonesia for 2009.

The RGT6EXFX features neck through body construction with basswood body wings attached to a maple and walnut neck with a 24-fret rosewood fingerboard with binding and small offset dot position markers. Components include a hard-tail bridge, a pair of active EMG humbucking pickups mounted in metal rings, a plastic nut, and die-cast tuning machines.

Both basswood bodied and mahogany bodied of the RGT6EXFX exist, mahogany bodied models were originally known as the RGT6EXFX2. After 2008 all models feature a mahogany body and are called RGT6EXFX.

For 2010, the RGT6EXFX is updated with the Gibraltar Standard bridge.

Specifications[]

Related content: RG series | Models-icon
Specifications for RGT6EXFX
Model name: RGT6EXFX
Year(s) offered: 2006–2010
Sold in: Americas & Oceania / Asia & Africa / Europe / Japan 2006 / USA
Made in: South Korea (2006–2008)/ Indonesia
Price: MSRP: US$1,199.99 (2009)[1] • SMAP: US$899.99 (2009)[1]
Finish(es): Blue Chameleon (BCM) 2009 / Black (BK) / Black Pearl (BP) 2006
Body
Body type:
Solid body
Body material:
2006–2008: Basswood
2009–2010: Mahogany
Neck joint:
Neck-thru
Bridge:
2006–2009: Fixed bridge
2010: Gibraltar Standard fixed (10.8mm string spacing)
Strap buttons:
standard
Knob style:
Knurled metal dome
Hardware color:
Black
Neck
Neck type:
Wizard II
Neck material:
5-piece maple/ walnut
Fingerboard material:
Rosewood w/ binding
Fingerboard inlays:
Off-set small dot
Frets:
24 / jumbo nickel silver
Nut:
Black plastic (43mm)
Machine heads:
Ibanez die-cast
String gauge (factory):
Template:10-46
Factory tuning:
1E,2B,3G,4D,5A,6E (E Std.)
Electronics
Pickup configuration:
HH
Bridge pickup:
EMG 81 (H) active
Neck pickup:
EMG 85 (H) active
Controls:
Master volume / master tone / 3-way lever pickup selector
Output jack:
¼" stereo barrel (side mounted)

Images[]

Other available finishes

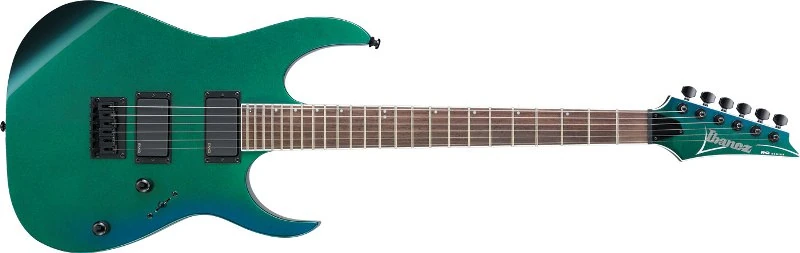

RGT6EXFX BCM
RGT6EXFX Blue Chameleon

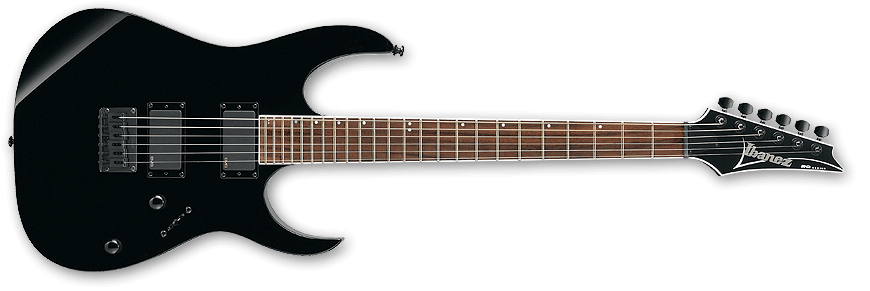

RGT6EXFX BK
RGT6EXFX Black (2006–2009)

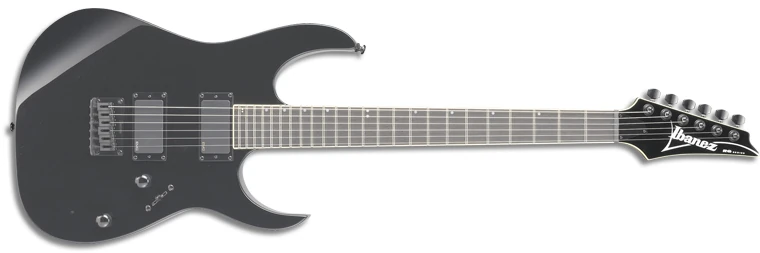

RGT6EXFX BP
RGT6EXFX Black Pearl
