RGT3120 TDB1

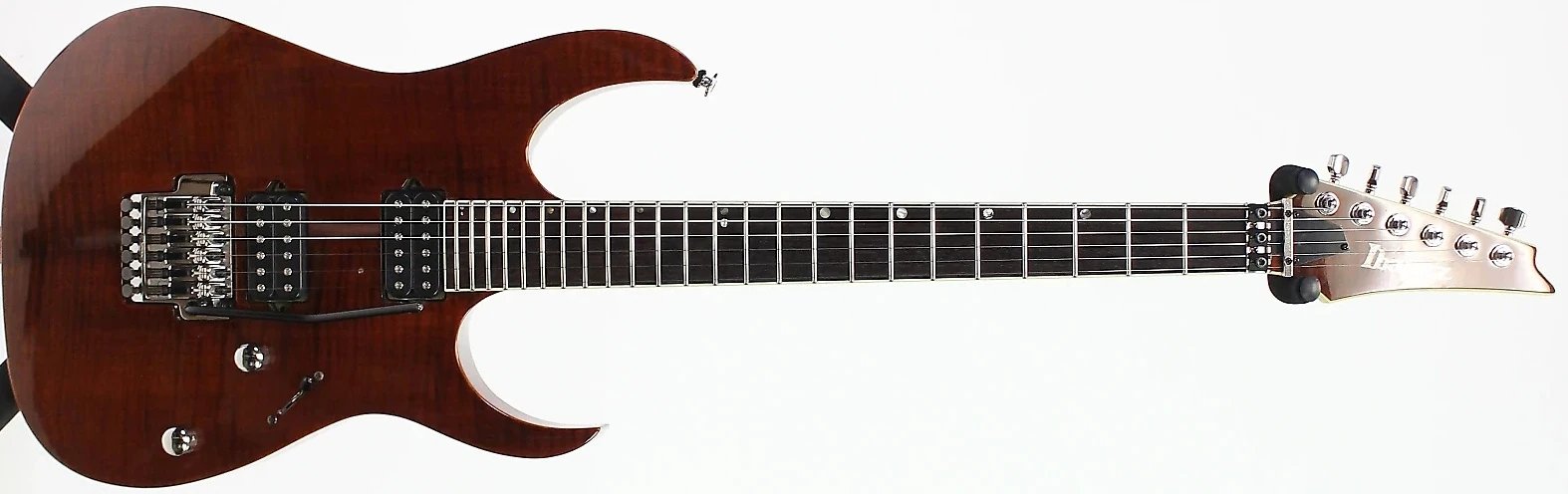

RGT3120 Transparent Dark Brown (more images) Red copyright sprite

The RGT3120 is an RG series solid body electric guitar model introduced by Ibanez in 2002. It was the first production RG model with a neck-thru construction. It is made in Japan by FujiGen as part of the upscale Prestige line.

The RGT3120 features mahogany body wings with a AAA flamed maple top attached to an Ultra Prestige neck with a 24-fret bound rosewood fretboard with offset dot position markers. Components include dual DiMarzio PAF Pro humbucking pickups and a double locking tremolo bridge. 2002 models are equipped with the Lo-Pro Edge tremolo which was replaced in 2003 by the new Edge Pro.

The RGT3170 is a similar model with an added middle pickup.

The RGT3120 was sold only in the USA. The very similar RGT3020FM was introduced in other markets in 2003 and replaced the RGT3120 in the USA for 2004. The RGT3020QM is a related model with a quilted maple top.

Specifications[]

Related content: Prestige series | RG series | Models-icon
Specifications for RGT3120
Model name: RGT3120
Year(s) offered: 2002–2003
Sold in: USA
Made in: Japan
Finish(es): TDB (Transparent Dark Brown) / TV (Transparent Violet)
Body
Body type:
Solid body
Body material:
Mahogany wings w/ AAA flamed maple top
Neck joint:
Neck-thru
Bridge:
2002: Lo-Pro Edge tremolo
2003: Edge Pro tremolo
Hardware color:
Violet chrome
Neck
Neck type:
Ultra Prestige
Neck material:
3-piece maple
Fingerboard material:
Rosewood w/ binding
Fingerboard inlays:
Offset dot
Frets:
24 / jumbo
Nut:
Top-Lok III
Electronics
Pickup configuration:
HH
Bridge pickup:
DiMarzio PAF Pro
Neck pickup:
DiMarzio PAF Pro
Controls:
Master volume / master tone / 5-way lever pickup selector

Images[]

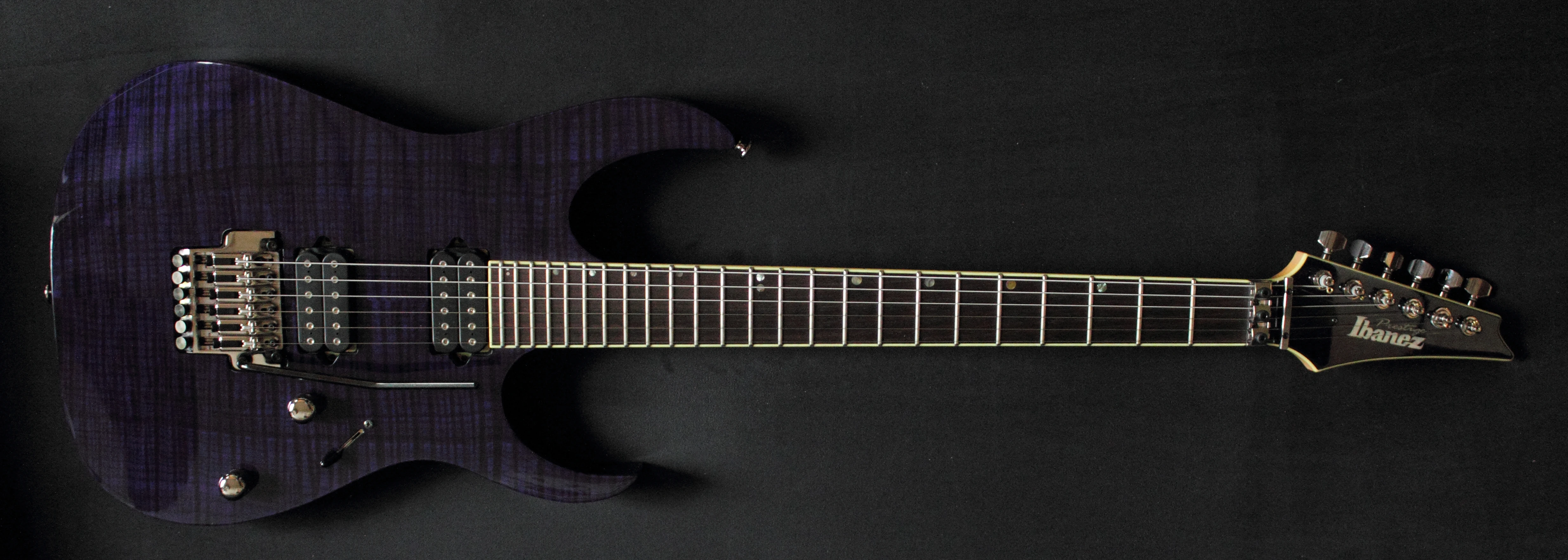

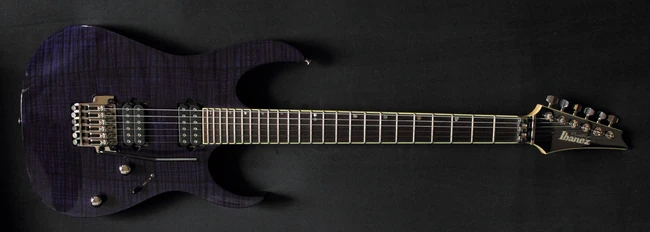

RGT3120 TV
2002 Ibanez RGT3120 Transparent Violet Red copyright sprite

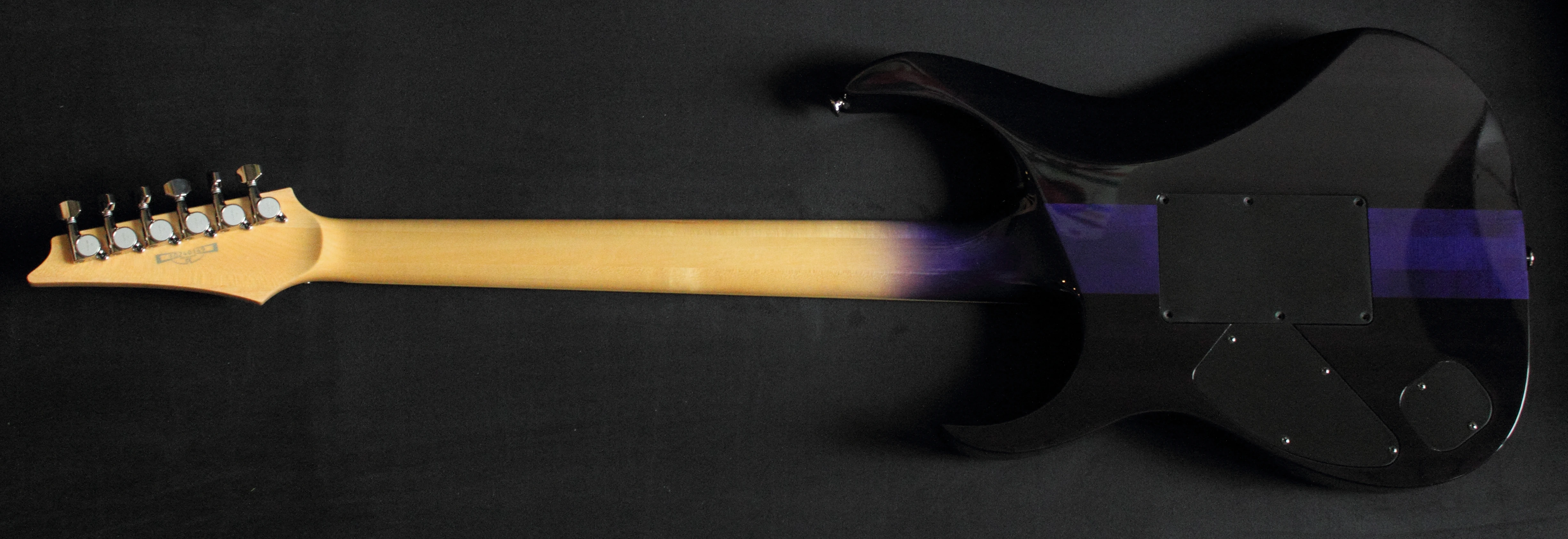

RGT3120 TV rear
2002 Ibanez RGT3120 TV ( Rear: Mahogany body with a Neck-thru 3-piece maple Ultra Prestige neck ) Red copyright sprite
