RGKP6

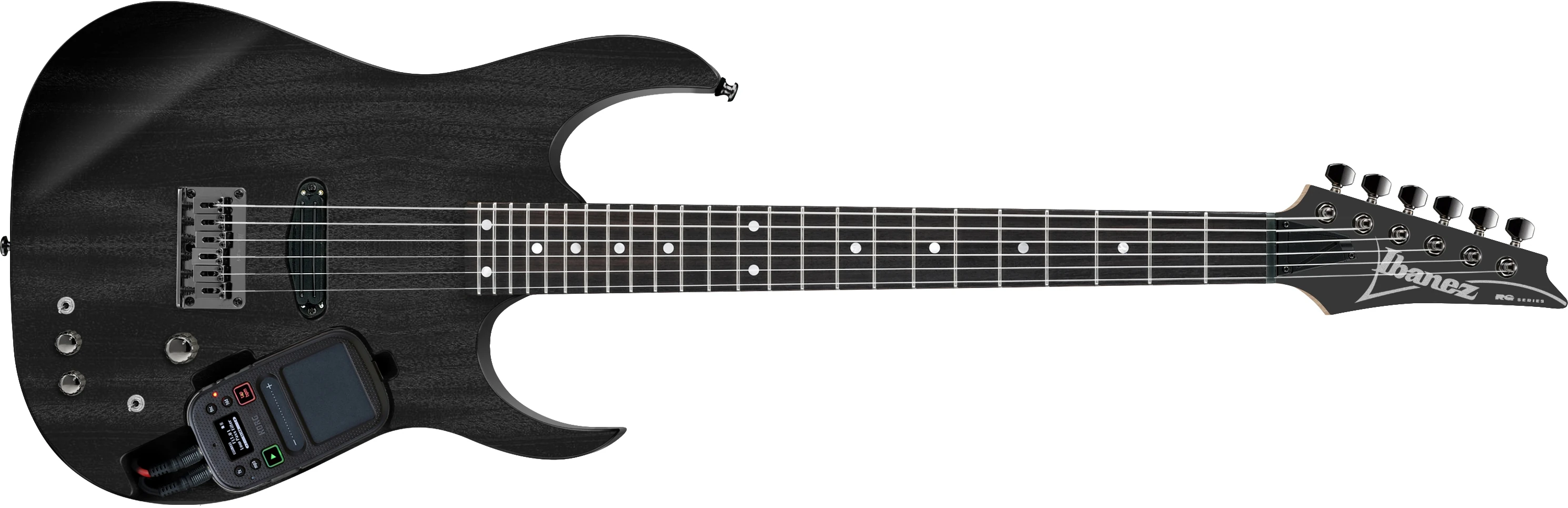

RGKP6 Kaoss Pad (more images) Red copyright sprite

The RGKP6 is an RG series solid body electric guitar model introduced by Ibanez in mid-2014. It was produced in Indonesia as part of the Standard line.

The RGKP6 is a unique concept which comes equipped with a Korg kaoss pad mini 2S which is built into the guitar's body. The kaoss pad is a dynamic effect processor with a built in sampler and a touch screen which allows the user to control a huge number of effects. The guitar also has a built-in distortion filter as well as an ⅛" headphone jack in addition to the standard ¼" output jack.

In addition to the kaoss pad, the RGKP6 features a mahogany body bolted to a maple neck with a 24-fret rosewood fingerboard with white dot position markers. Components include a fixed bridge and a single Ibanez twin blade humbucking pickup in a single-coil package.

The SRKP4 is a similar kaoss pad equipped bass model.

The RGKP6 was discontinued after 2015.

Specifications[]

Related content: Kaoss series | RG series | Models-icon
Specifications for RGKP6
Model name: RGKP6
Year(s) offered: 2014–2015
Sold in: USA
Made in: Indonesia
Finish(es): Weathered Black (WK)
Body
Body type:
Solid body
Body material:
Mahogany
Neck joint:
AANJ
Bridge:
Fixed bridge
Hardware color:
Cosmo black
Neck
Neck type:
RGKP
Neck material:
1-piece maple
Scale length:
648mm/ 25½"
Fingerboard material:
Rosewood
Fingerboard inlays:
White dot
Frets:
24 / jumbo
Nut:
Black plastic (43mm)
Electronics/ Strings
Pickup configuration:
S
Bridge pickup:
IBZ-KP (H) passive/ ceramic
Controls:
Single volume / kaoss pad bypass / distortion switch / distortion tone / distortion gain
String gauge (factory):
.010/.013/.017/.026/.036/.046
Factory tuning:
1E,2B,3G,4D,5A,6E (E Std.)

Images[]

Additional details

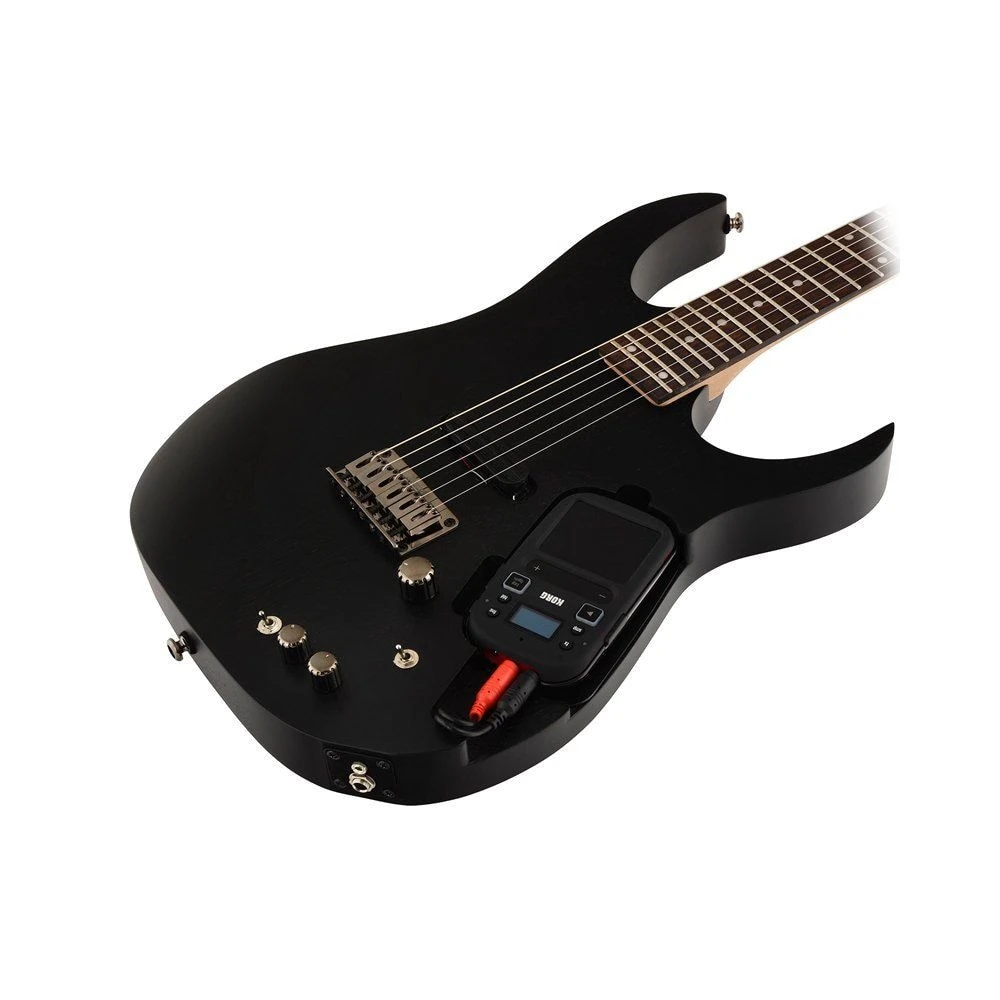

RGKP6 body
Front of body

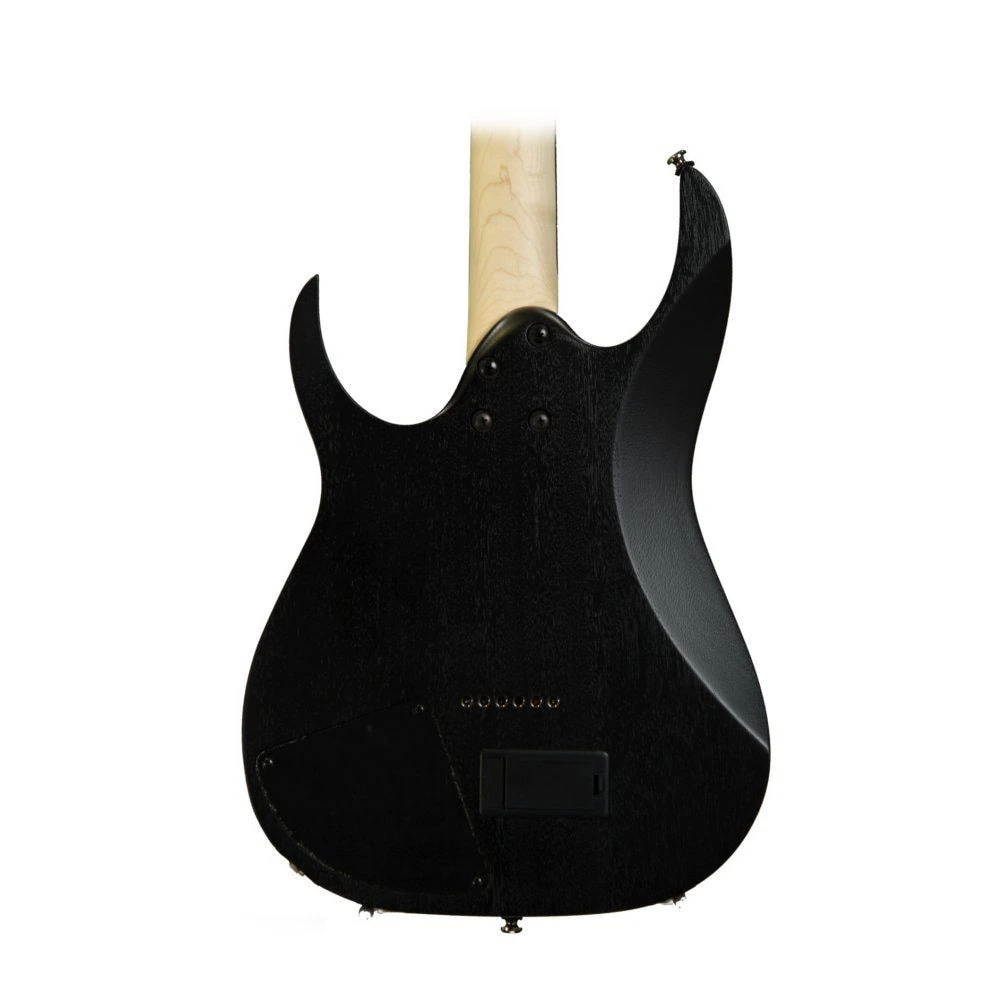

RGKP6 rear
Rear of body

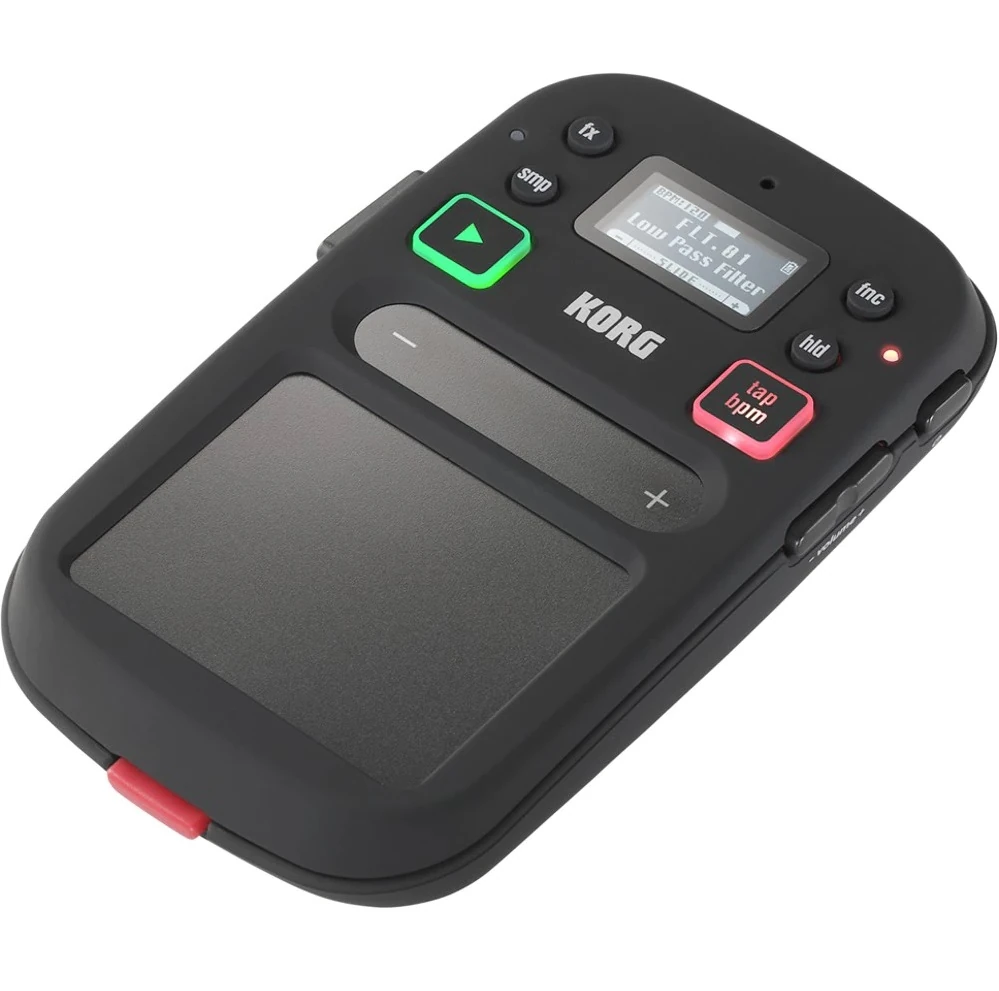

KORG mini kaoss pad 2
KORG mini kaoss pad 2

Videos[]

Ibanez RGKP6 equipped with Korg® mini kaoss pad 2S
Demo of the RGKP6 & SRKP4 with Hector Hellion
Ibanez RGKP6 ( Review & demo by Lee Wrathe )
