RGIR28FE BK

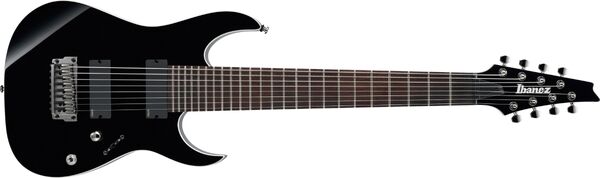

RGIR28FE Black (more images) Red copyright sprite

The RGIR28FE is an eight string RG series solid body electric guitar released in 2013. It was among the first guitars produced in the metal-focused Iron Label line. Like the other Iron Label models, the RGIR28FE is produced in Indonesia.

The RGIR28FE features a basswood body with contrasting binding bolted to a 27" scale maple and walnut Nitro Wizard-8 neck with a 24-fret rosewood fingerboard with no inlays. Components include a Gibraltar fixed bridge, dual EMG active 808 humbucking pickups and a kill switch.

For 2013 the neck contained titanium reinforcing rods, but this feature was omitted starting in 2014. Also for 2014, the Gibraltar Standard-8 bridge was replaced by the Gibraltar Standard II-8.

Variants also introduced in 2013 included six-string fixed and tremolo versions, the RGIR20FE and RGIR20E, and seven-string fixed and tremolo variants, the RGIR27FE and RGIR27E. A 28" scale length six-string, the RGIB6, was added the following year.

The RGIR28FE was discontinued after 2016, replaced by the RGIR38BFE.

Specifications

Specifications for RGIR28FE
Model name: RGIR28FE
Year(s) produced: 2013–2016
Sold in: Worldwide
Made in: Indonesia
Finish(es): Black (BK) / White (WH) 2014
Body
Body type:
Solid body
Body material:
Basswood w/ white binding
Neck joint:
AANJ
Bridge:
2013: Gibraltar Standard-8 fixed
2014–2016: Gibraltar Standard II-8 fixed
Hardware color:
Cosmo black
Neck
Neck type:
Nitro Wizard-8
Neck material:
2013: 5-piece maple/ walnut w/ KTS titanium rods
2014–2016: 5-piece maple/ walnut
Scale length:
686mm/ 27"
Fingerboard material:
Rosewood
Fingerboard inlays:
none
Frets:
24 / jumbo
Nut:
Black plastic (55mm)
Electronics/ Strings
Pickup configuration:
HH
Bridge pickup:
EMG 808 (H) active/ alnico
Neck pickup:
EMG 808 (H) active/ alnico
Controls:
Master volume / 3-way toggle / kill switch
String gauge (factory):
.009–.065
Factory tuning:
1D# 2A# 3F# 4C# 5G# 6D# 7A# 8F

Images

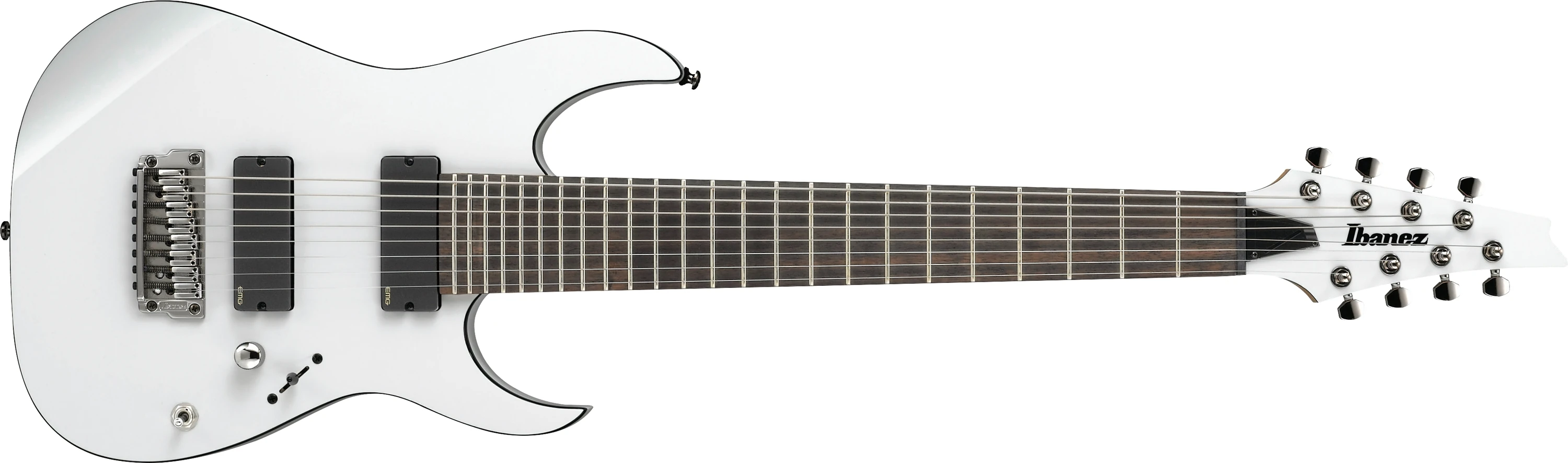

RGIR28FE WH
RGIR28FE White Red copyright sprite
