RGIF7 BKS
RGIF7 Black Stained (more images) Red copyright sprite

The RGIF7 is a seven string RG series solid body electric guitar model introduced by Ibanez in 2015. It was made in Indonesia as part of the metal-focused Iron Label line.

The RGIF7 is a multi scale model featuring fanned frets with a 27" (686mm) scale length at the seventh string and a 25.5" (628mm) scale length at the first string. The equalized string tension this design allows contributes to a more "alive" tone while the fanned fret layout provides an ergonomic platform for the player's hand as it moves up and down the neck facilitating speed and comfort.

In addition to the multi scale design the RGIF7 features an ash body bolted to a maple and bubinga neck with a 24-fret rosewood fingerboard with no inlays. Components include a fixed bridge and dual active EMG humbucking pickups.

The RGIF8 is a similar eight-string model. The RGIM7MH is a similar model with a mahogany body.

The RGIF7 was discontinued after 2017.

Specifications[]

Related content: Iron Label series | RG series | Models-icon
Specifications for RGIF7
Model name: RGIF7
Year(s) offered: 2015–2017
Sold in: Worldwide (Japan only in 2017)
Made in: Indonesia
Finish(es): Black Stained (BKS)
Body
Body type:
Solid body
Body material:
Ash
Neck joint:
AANJ
Bridge:
Mono-rail fixed
Knob style:
Knurled metal dome
Hardware color:
Black
Neck
Neck type:
Nitro Wizard-7 Multi Scale
Neck material:
5-piece maple/ bubinga
Scale length:
686mm/ 27" – 648mm/ 25½"
Fingerboard material:
Rosewood
Fingerboard inlays:
none
Frets:
24 / jumbo nickel silver
Nut:
Black plastic (48mm)
Machine heads:
Ibanez die-cast
Electronics/ Strings
Pickup configuration:
HH
Bridge pickup:
EMG 808 (H) active/ alnico
Neck pickup:
EMG 808 (H) active/ alnico
Controls:
Master volume / master tone / 3-way lever pickup selector
Battery:
9V
Output jack:
¼" stereo barrel (side mounted)
String gauge (factory):
.009/.011/.016/.024/.032/.042/.059
Factory tuning:
1E,2B,3G,4D,5A,6E,7B

Images[]

Additional details

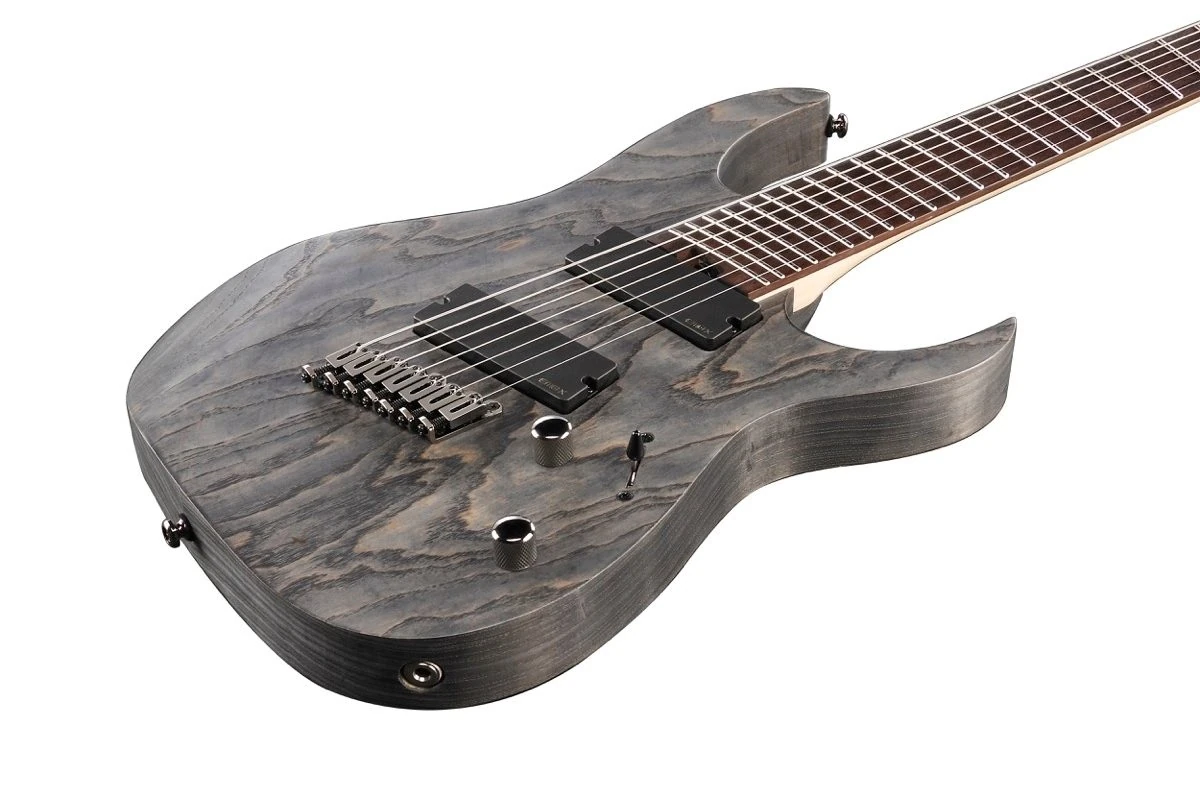

RGIF7 front
Front of body

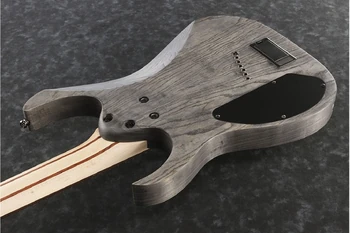

RGIF7 rear
Rear of body

Video[]

RGIF7 demo
