RGIB6 BK
RGIB6 Black Red copyright sprite

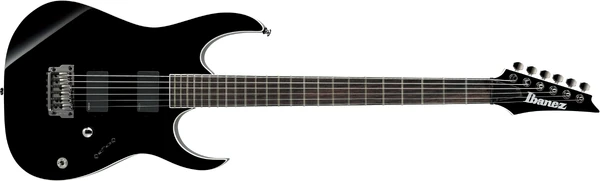

The RGIB6 is an RG series baritone solid body electric guitar introduced by Ibanez in 2014. It was made in Indonesia as part of the metal-focused Iron Label line.

The RGIB6 features a basswood body with white binding bolted to a maple and bubinga Nitro Baritone neck with a 28" scale and a 24-fret rosewood fingerboard with binding and no inlays. Components include dual EMG active humbucking pickups, a Gibraltar Standard II fixed bridge and a kill switch.

For 2018 the neck was replaced with a maple and purpleheart construction and the rosewood fingerboard was replaced with Jatoba.

The RGIB6 is essentially a baritone version of the RGIR20FE.

The RGIB6 was discontinued after 2019 and replaced with the similar RGIB21.

Specifications

Specifications for RGIB6
Year(s) produced: 2014–2019
Sold in: Asia & Africa / China / Europe / Japan / North & South America and Oceania / USA
Made in: Indonesia
Finish(es): Black (BK)
Body
Body type:
Solid body
Body material:
Basswood w/ binding
Neck joint:
AANJ
Bridge:
Gibraltar Standard II fixed (10.8mm string spacing)
Knob style:
Knurled metal dome
Hardware color:
Cosmo black
Neck
Neck type:
Nitro Baritone
Neck material:
2014–2017: 3-piece maple/ bubinga
2018–2019: 3-piece maple/ purpleheart
Scale length:
712mm/ 28"
Fingerboard material:
2014–2017: Rosewood w/ binding
2018–2019: Jatoba w/ binding
Frets:
24 / jumbo
Machine heads:
Ibanez die-cast
Electronics/ Strings
Pickup configuration:
HH
Bridge pickup:
EMG 81 (H) active/ ceramic
Neck pickup:
EMG 60 (H) active/ ceramic
Controls:
Master volume / 3-way lever / kill switch
String gauge (factory):
.014/.018/.026/.044/.056/.068
Factory tuning:
1B 2F# 3D 4A 5E 6B (B standard)

Images

Additional details
HH 3-way toggle
Pickup switching
Controls V3LK
Control layout
