RGDRB71

RGDRB71 Black Flat (more images)

The RGDRB71 is a seven string RGD series solid body electric guitar model introduced by Ibanez for 2025. It is produced in Indonesia as part of the Iron Label line.

The RGD series guitars have a body based on the RG series but with special bevels and deep scoop cuts in the horns. They also have extra long 26½" (673.5mm) scale necks.

The RGDRB71 features a nyatoh body bolted to a roasted maple neck with a a reverse headstock and a 24-fret ebony fingerboard with only luminescent side dot position markers. Components include a pair of DiMarzio D Activator 7 humbucking pickups, individually mounted Mono-rail fixed bridges, and Gotoh MG-T locking tuning machines.

Specifications

Related content: Iron Label series | RGD series | RG series |

Specifications for RGDRB71

Model name: RGDRB71 Year(s) offered: 2025 Sold in: Americas & Oceania / Asia & Africa / China / Europe / USA & Canada Made in: Indonesia Price: MSRP: US$1,377.76 (2025) / €999 (2025) • SMAP: US$999.99 (2025) Finish(es): Black Flat (BKF)
Body Body type: Solid body Body material: Nyatoh Neck joint: AANJ Bridge: Mono-rail fixed (10.3mm string spacing) Knob style: Gotoh VK1-19 (knurled metal dome) Hardware color: Black	Neck Neck type: Wizard II-7 Neck material: One-piece roasted maple w/ graphite reinforcement rods Scale length: 673.5mm/ 26½" Fingerboard material: Ebony Fingerboard inlays: Luminescent side dots Frets: 24 / jumbo nickel silver Nut: Graph Tech Black TUSQ XL (48mm) Machine heads: Gotoh SG381 MG-T locking String gauge (factory): .010/.013/.017/.026/.036/.046/.059 (D'Addario EXL110-7) Factory tuning: 1D,2A,3F,4C,5G,6D,7A	Electronics Pickup configuration: HH Bridge pickup: DiMarzio D Activator 7 bridge (H) passive/ceramic Neck pickup: DiMarzio D Activator 7 neck (H) passive/ceramic Controls: Single volume / 3-way toggle pickup selector Output jack: ¼" stereo barrel (side mounted)

About this table

Images

Additional details

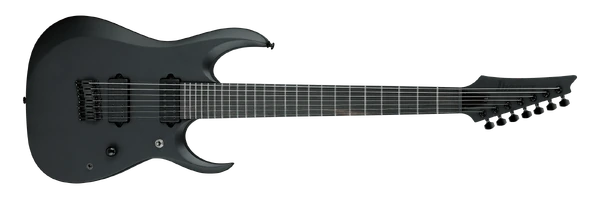

Body front

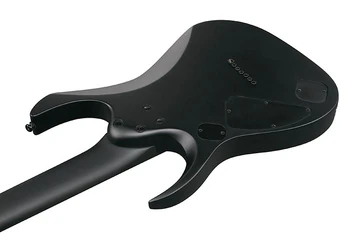

Body rear

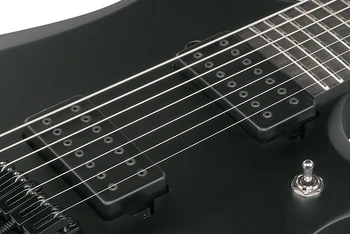

DiMarzio D Activator 7 pickups

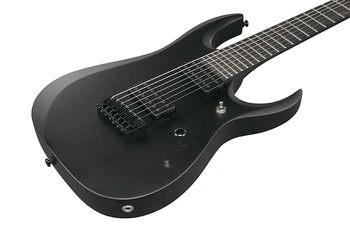

Front ¾ view

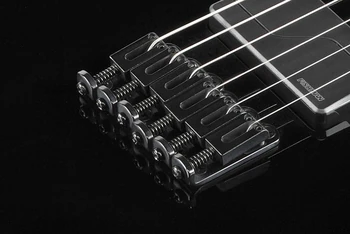

Mono rail bridge

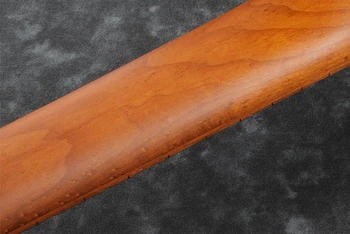

Roasted maple neck

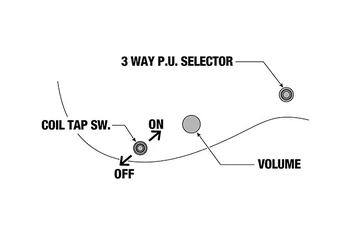

Controls layout

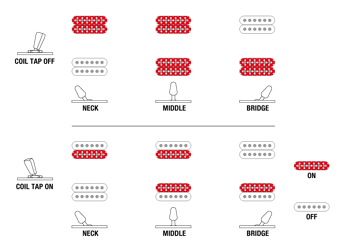

Pickup switching

Sources

• RGDRB71-BKF (1P01) parts list, Ibanez parts catalog, archived March 2025
• RGDRB71 product page, Ibanez Asia & Africa, archived January 2025
