2019 RGDR7UCS DYF

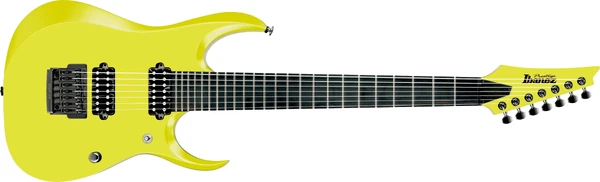

RGDR7UCS Desert Sun Yellow Flat (more images) Red copyright sprite

The RGDR7UCS is a seven string RGD series solid body electric guitar model introduced by Ibanez in 2019. It was made in Japan by FujiGen as part of the Prestige Uppercut line. It is a spot model made for sale exclusively by American retails The Axe Palace. ( Only 12 units was made )

In 2020 a second run of this model was offered in Road Flare Red Flat colour.

The RGDR7UCS features a basswood body bolted to a titanium reinforced 26½" scale maple and walnut Wizard-7 neck with a reversed headstock and an ebony fingerboard with 24 stainless steel frets and no inlays. Components include dual Bare Knuckle Aftermath humbucking pickups, a Tight-End R fixed bridge, and locking Gotoh tuning machines.

RGDR7UCS AxePalace ad
RGDR7USC announcement by Axe Palace (US retailer) Red copyright sprite

The RGD7UCS is a similar regular production with a standard headstock, basswood body and maple and wenge neck.

The RGDR7UCS was offered only in 2019 and 2020.

Specifications[]

Specifications for RGDR7UCS
Model name: RGDR7UCS
Year(s) offered: 2019–2020
Sold in: Worldwide
Made in: Japan
Finish(es): Desert Sun Yellow Flat (DYF) 2019–2020 / Road Flare Red Flat (RFF) 2020
Body
Body type:
Solid body
Body material:
Basswood
Neck joint:
AANJ
Bridge:
Tight-End R-7 fixed (¼" stereo barrel (side mounted) string spacing)
Knob style:
Gotoh VK1-19 knurled metal dome
Hardware color:
Cosmo black
Neck
Neck type:
Wizard-7 Prestige RGD
Neck material:
5-piece maple/ walnut w/ KTS titanium rods
Scale length:
673.5mm/ 26½"
Fingerboard material:
Ebony
Fingerboard inlays:
None
Frets:
24 / jumbo stainless steel (Prestige edge treatment)
Nut:
Graph Tech Black TUSQ XL
Machine heads:
Gotoh SG381 MG-T locking
Electronics/ Strings
Pickup configuration:
HH
Bridge pickup:
Bare Knuckle Aftermath 7 (H) passive/ ceramic
Neck pickup:
Bare Knuckle Aftermath 7 (H) passive/ alnico
Controls:
Single volume / 3-way toggle pickup selector
String gauge (factory):
.010/.013/.017/.026/.036/.046/.059
Factory tuning:
1D 2A 3F 4C 5G 6D 7A (D std.)

Images[]

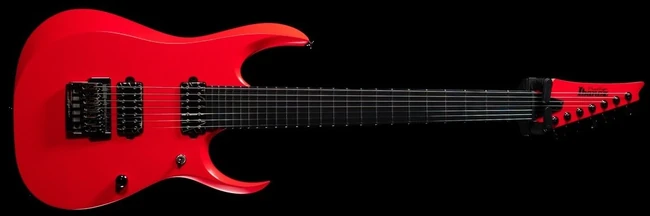

2020 RGDR7UCS RFF
2020 Ibanez RGDR7UCS Red Flare Red Flat Red copyright sprite

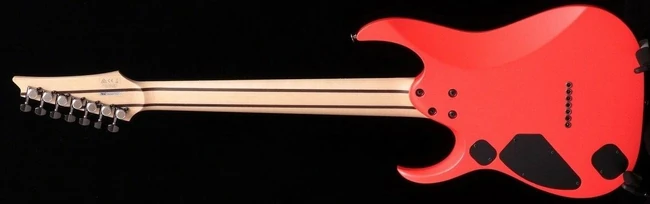

RGDR7UCS rear
2020 Ibanez RGDR7UCS Red Flare Red Flat ( Rear: Basswood body bolted to a 5-piece maple/ walnut Wizard-7 Prestige RGD neck and Gotoh SG381 MG-T locking machine heads ) Red copyright sprite
Additional details
2020 RGDR7UCS DY back
Rear of body
HH 3-way toggle
Pickup switching diagram
Controls V3 RGD
Control layout
