2018 RGDIR7M LBM 1P 01

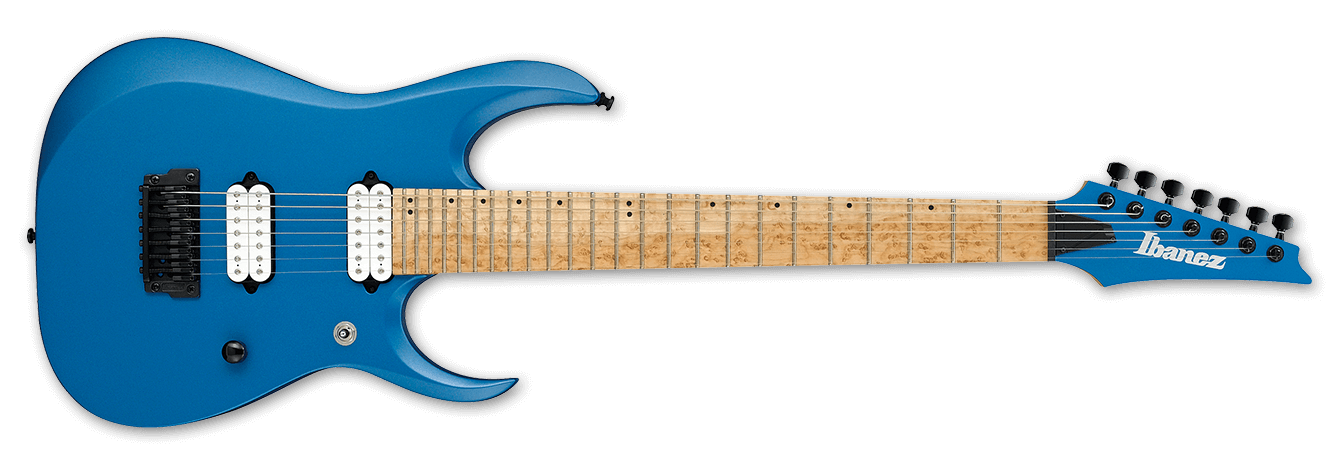

RGDIR7M Laser Blue Matte Red copyright sprite

The RGDIR7M is a seven string RGD series solid body electric guitar model introduced by Ibanez in 2018. It was produced in Indonesia as part of the metal-focused Iron Label line.

The RGDIR7M features a mahogany body bolted to a Nitro Wizard maple and purpleheart neck with a 24-fret birdseye maple fingerboard with offset black dot position markers and luminescent side dots. Components include a Gibraltar Standard II-7 fixed bridge, a pair of white DiMarzio Fusion Edge 7 humbucking pickups and Gotoh locking tuning machines.

For 2019 the mahogany body was replaced with nyatoh.

The RGDIR6M is a six string version. The RGDIX7MPB is a related model with a poplar burl top on an ash body.

The RGDIR7M was discontinued after 2019.

Specifications[]

Related content: Iron Label series | RGD series | RG series | Models-icon
Specifications for RGDIR7M
Year(s) offered: 2018–2019
Sold in: Europe 2019 / Japan / USA
Made in: Indonesia
Finish(es): Laser Blue Matte (LBM)
Body
Body type:
Solid body
Body material:
2018: Mahogany
2019: Nyatoh
Neck joint:
AANJ
Bridge:
Gibraltar Standard II-7 fixed
Hardware color:
Black
Neck
Neck type:
Nitro Wizard-7 RGD
Neck material:
3-piece maple/ purpleheart
Scale length:
673.5mm/ 26½"
Fingerboard material:
Birdseye maple
Fingerboard inlays:
Offset small black dot
Luminescent side dot
Frets:
24 / jumbo
Machine heads:
Gotoh SG381 MG-T locking
Electronics/ Strings
Pickup configuration:
HH
Bridge pickup:
DiMarzio Fusion Edge 7 (H) passive/ ceramic
Neck pickup:
DiMarzio Fusion Edge 7 (H) passive/ ceramic
Controls:
Single volume / 3-way toggle pickup selector
String gauge (factory):
.010/.013/.017/.026/.036/.046/.059
Factory tuning:
1D 2A 3F 4C 5G 6D 7A (D std.)

Images[]

Additional details
HH 3-way toggle
Pickup switching diagram
Controls V3 RGD
Control layout
