The RGD7521PB is a seven string RGD series solid body electric guitar model introduced by Ibanez for 2021. It is produced in Indonesia.

The RGD series guitars have a body based on the RG series but with special bevels and deep scoop cuts in the horns. They also have extra long 26½" scale necks.

The RGD7521PB features a poplar burl top on a nyatoh body bolted to a roasted maple neck with a 24-fret jatoba fingerboard with white dot position markers. Components include a pair of DiMarzio Fusion Edge 7 humbucking pickups, an Edge Zero II-7 double locking tremolo bridge, Gotoh tuning machines and Schaller S-Lock strap lock pins. It also has a luminescent Ibanez headstock logo.

Specifications

Specifications for RGD7521PB
Model name: RGD7521PB
Year(s) produced: 2021
Sold in: Asia & Africa / China / Europe / Japan / North & South America and Oceania / USA
Made in: Indonesia
Finish(es): Deep Seafloor Fade Flat (DSF)
Body
Body type:
Solid body
Body material:
Nyatoh w/ poplar burl top
Neck joint:
AANJ
Bridge:
Gibraltar Standard II-7 fixed (10.8mm string spacing)
Knob style:
Knurled metal dome
Hardware color:
Black
Neck
Neck type:
Wizard II-7 (RGD)
Neck material:
One-piece roasted maple
Scale length:
673.5mm/ 26½"
Fingerboard material:
Jatoba
Fingerboard inlays:
White dot
Frets:
24 / jumbo
Nut:
Black plastic (48mm)
Machine heads:
Ibanez die-cast
Electronics/ Strings
Pickup configuration:
HH
Bridge pickup:
DiMarzio PAF 7 bridge (H) passive/ ceramic
Neck pickup:
DiMarzio PAF 7 neck (H) passive/ ceramic
Controls:
Single volume / 3-way toggle pickup selector / coil-split toggle
String gauge (factory):
.010/.013/.017/.026/.036/.046/.059 (D'Addario EXL110-7)
Factory tuning:
1D,2A,3F,4C,5G,6D,7A

Images

Additional details
HH 3-way-toggle coil-split-toggle.png

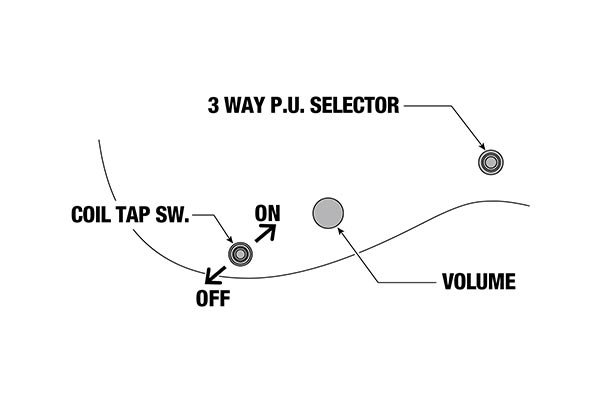

Pickup switching
Controls 3-way coil-split-toggle.jpg
Control layout
2021 RGD7521PB DSF 1P 01 back.jpg

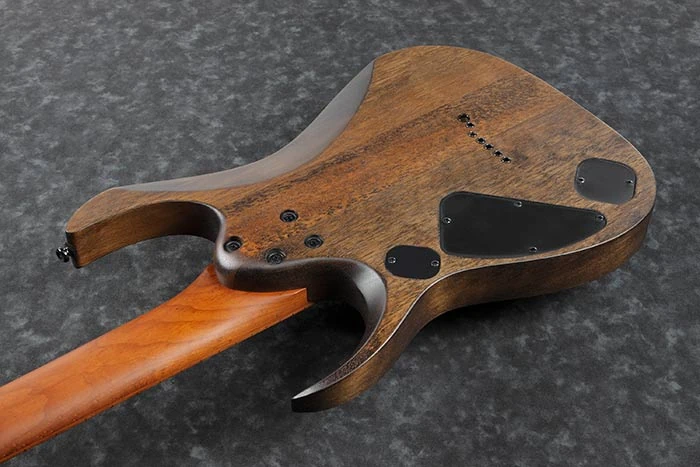

Rear of body

Video

Ibanez RGD7521PB-DSF featuring Sam Bell
