2019 RGD71ALMS BAM 1P 01
RGD71ALMS Black Aurora Burst Matte Red copyright sprite

The RGD71ALMS is a seven string multi-scale RGD series solid body electric guitar model introduced by Ibanez in 2019. It is produced in Indonesia as part of the metal focused Axion Label line.

The RGD series guitars have a body based on the RG series but with special bevels and deep scoop cuts in the horns. They also have extra long scale necks.

The RGD71ALMS features a nyatoh body bolted to a panga panga and walnut neck with a Macassar ebony fingerboard with 24 Sub Zero treated fanned frets and white step offset dot position markers. Components include a pair of Fishman Fluence Modern Ceramic humbucking pickups, a Mono-rail fixed bridge, Gotoh locking tuning machines and Schaller S-Lock strap lock pins. It also has luminescent side dots and Ibanez headstock logo.

The RGD71AL is a related model with a standard neck and a flamed maple top. The RGD61ALMS is a similar six string model with a flamed maple top.

Specifications

Specifications for RGD71ALMS
Year(s) produced: 2019–2020
Sold in: Asia & Africa / China / Europe / Japan / North & South America and Oceania / USA
Made in: Japan
Finish(es): Black Aurora Burst Matte (BAM)
Body
Body type:
Solid body
Body material:
Nyatoh
Neck joint:
AANJ
Bridge:
Mono-rail fixed
Strap buttons:
Schaller S-Lock
Knob style:
Knurled metal dome
Hardware color:
Black
Neck
Neck type:
Nitro Wizard-7 Multi Scale
Neck material:
5-piece panga panga/ walnut
Scale length:
686mm/ 27" – 648mm/ 25½"
Fingerboard material:
Macassar ebony
Fingerboard inlays:
White step offset dot
Luminescent side dots
Frets:
24 / jumbo Sub Zero treated
Nut:
Black plastic
Machine heads:
Gotoh SG381 MG-T locking
Electronics/ Strings
Pickup configuration:
HH
Bridge pickup:
Fishman Fluence Modern Humbucker Ceramic (H) active
Neck pickup:
Fishman Fluence Modern Humbucker Ceramic (H) active
Controls:
Master volume / 3-way toggle / push-pull Fishman Fluencing voicing switch on volume
Battery:
9V
Output jack:
¼" stereo barrel
String gauge (factory):
.009/.011/.016/.024/.032/.042/.059 (D'Addario EXL120+.059)
Factory tuning:
1D 2A 3F 4C 5G 6D 7A

Images

Additional details
HH 3-way toggle
Pickup switching diagram

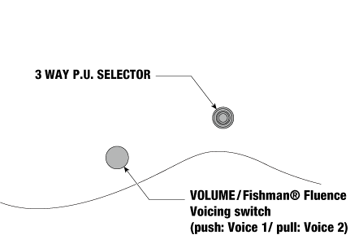

Controls V3 push-pull-Fluence
Control layout
