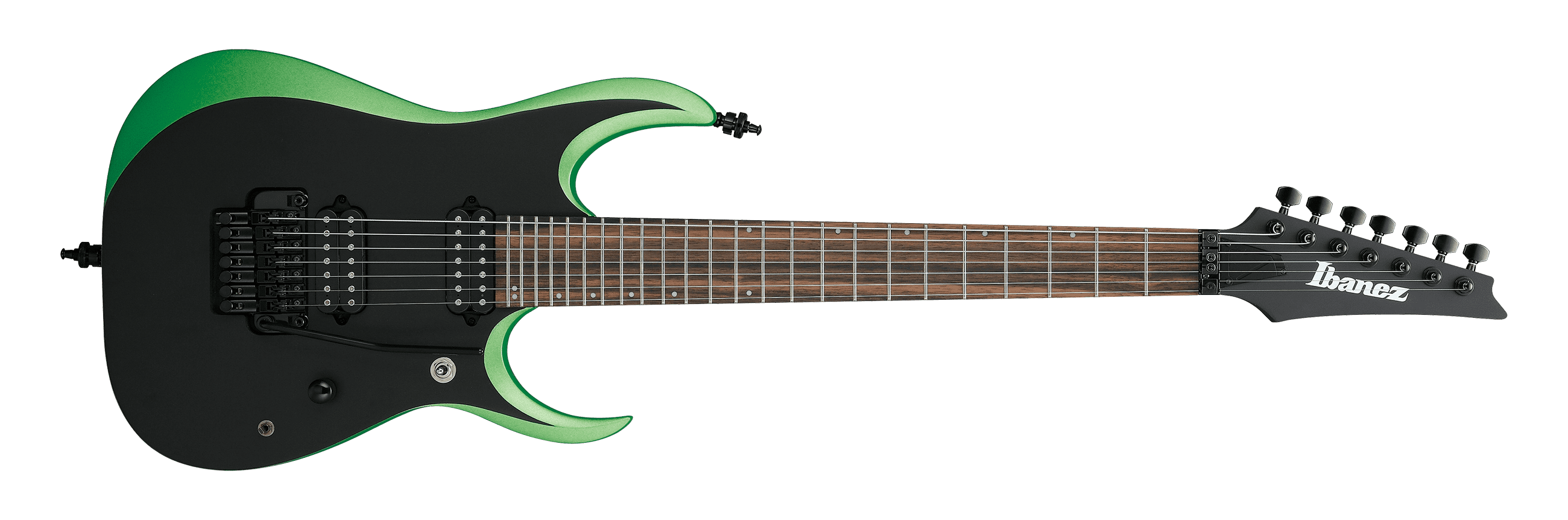

2021 RGD70ALNB EEM 1P 01.png
RGD70ALNB Metallic Green Eclipse Matte Red copyright sprite.png

The RGD70ALNB is a seven string RGD series solid body electric guitar model introduced by Ibanez for 2021. It is produced in Indonesia as part of the metal focused Axion Label line.

The RGD series guitars have a body based on the RG series but with special bevels and deep scoop cuts in the horns. They also have extra long 26½" scale necks.

The RGD70ALNB features a nyatoh body bolted to a panga panga and walnut neck with a Macassar ebony fingerboard with 24 Sub Zero treated frets, white step offset dot position markers and luminescent side dots. Components include a pair of DiMarzio Fusion Edge 7 humbucking pickups, an Edge Zero II-7 double locking tremolo bridge, Gotoh tuning machines and Schaller S-Lock strap lock pins. It also has a luminescent Ibanez headstock logo.

The RGD71ALPA is a related model with a poplar burl top, fixed bridge and Bare Knuckle pickups.

Specifications

Specifications for RGD70ALNB
Model name: RGD70ALNB
Year(s) produced: 2021
Sold in: USA
Made in: Indonesia
Finish(es): Metallic Green Eclipse Matte (EEM)
Body
Body type:
Solid body
Body material:
Nyatoh
Neck joint:
AANJ
Bridge:
Edge Zero II-7 tremolo (10.8mm string spacing)
Strap buttons:
Schaller S-Lock
Knob style:
Knurled metal dome
Hardware color:
Black
Neck
Neck type:
Nitro Wizard-7 RGD
Neck material:
5-piece panga panga/ walnut
Scale length:
673.5mm/ 26½"
Fingerboard material:
Macassar ebony
Fingerboard inlays:
White step offset dot
Luminescent side dots
Frets:
24 / jumbo Sub Zero treated
Nut:
Locking (barless) (48mm)
Machine heads:
Gotoh SG381
Electronics/ Strings
Pickup configuration:
HH
Bridge pickup:
DiMarzio Fusion Edge 7 bridge (H) passive/ ceramic
Neck pickup:
DiMarzio Fusion Edge 7 neck (H) passive/ ceramic
Controls:
Single volume / 3-way toggle pickup selector / coil-split toggle
Output jack:
¼" stereo barrel (side mounted)
String gauge (factory):
.010/.013/.017/.026/.036/.046/.059 (D'Addario EXL110-7)
Factory tuning:
1D,2A,3F,4C,5G,6D,7A

Images

Additional details
HH 3-way-toggle coil-split-toggle.png
Pickup switching

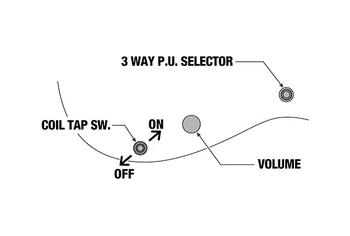

Controls 3-way coil-split-toggle.jpg
Control layout

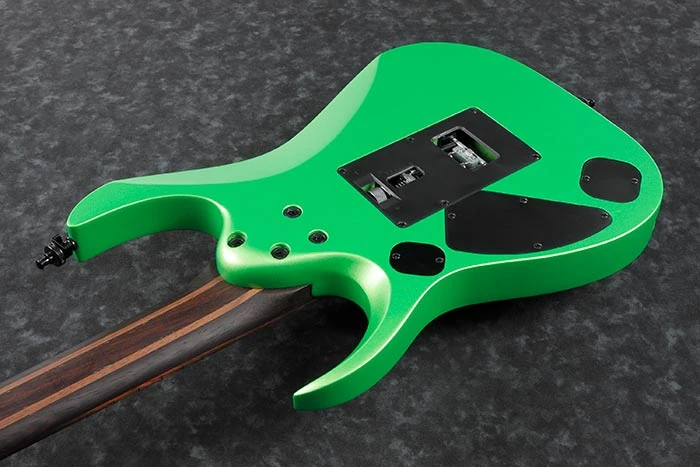

2021 RGD70ALNB EEM 1P 01 back.jpg
Rear of body
