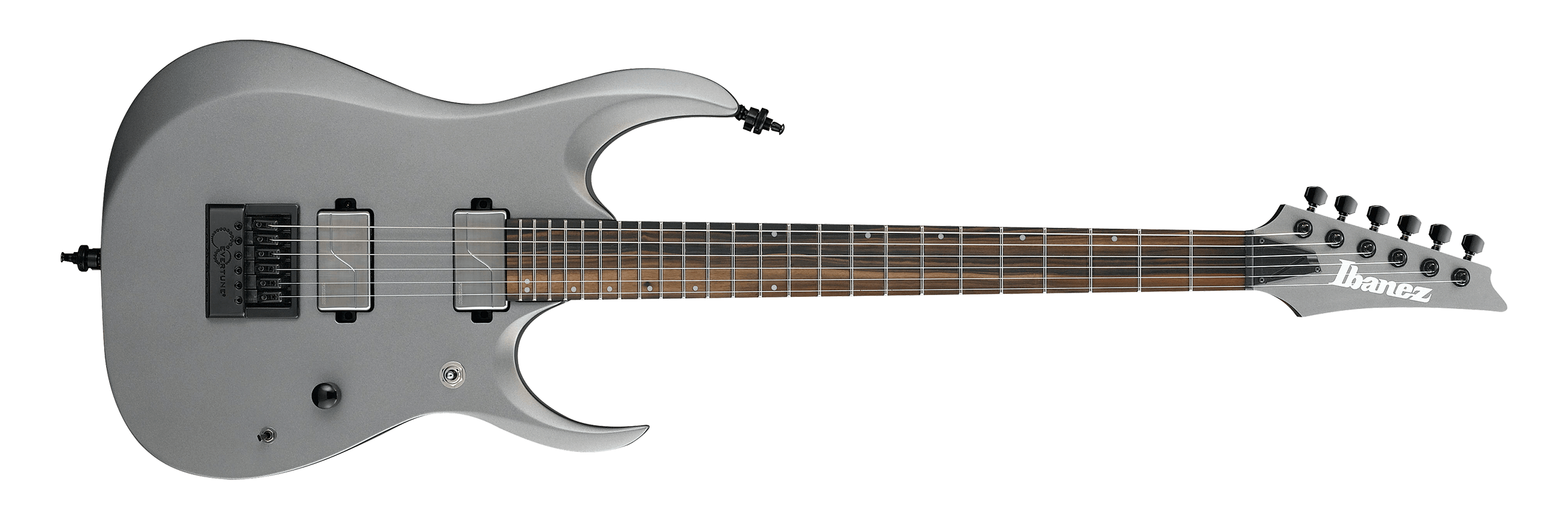

2020 RGD61ALET MGM 1P 01
RGD61ALET Metallic Gray Matte Red copyright sprite

The RGD61ALET is an RGD series solid body electric guitar model introduced by Ibanez for 2020. It is produced in Indonesia, initially as part of the metal focused Axion Label line, but starting in 2023 as one of the initial models in the Axe Design Lab series.

The RGD series guitars have a body based on the RG series but with special bevels and deep scoop cuts in the horns. They also have extra long 26½" scale necks.

The RGD61ALET features a maple top on a nyatoh body bolted to a panga panga and walnut neck with a luminescent headstock logo and a Macassar ebony fingerboard with 24 Sub Zero treated frets, white step offset dot position markers and luminescent side dots. Components include a pair of Fishman Fluence active humbucking pickups, an Evertune bridge, Gotoh locking tuning machines and Schaller S-Lock strap lock pins. It also has a luminescent Ibanez logo on the headstock.

The RGD61AL is a related model with a flamed maple topped ash body, a birdseye maple fretboard, DiMarzio pickups and a standard fixed bridge. The RGD61ALA is a related model with an ash body and without the Evertune bridge.

Specifications[]

Related content: Axe Design Lab series | Axion Label series | RGD series | Models-icon
Specifications for RGD61ALET
Model name: RGD61ALET
Year(s) offered: 2020–2024
Sold in: Americas & Oceania / Asia & Africa / China / Europe / USA
Made in: Indonesia
Finish(es): Metallic Gray Matte (MGM)
Body
Body type:
Solid body
Body material:
Nyatoh w/ maple top
Neck joint:
AANJ
Bridge:
Evertune fixed (10.3mm string spacing)
Strap buttons:
Schaller S-Lock
Knob style:
Knurled metal dome
Hardware color:
Black
Neck
Neck type:
Nitro Wizard RGD
Neck material:
5-piece panga panga/ walnut
Scale length:
673mm/ 26½"
Fingerboard material:
Macassar ebony
Fingerboard inlays:
White step offset dot/
Luminescent side dots
Frets:
24 / jumbo Sub Zero treated nickel silver
Nut:
Black plastic (43mm)
Machine heads:
Gotoh SG381 MG-T locking
Electronics/ Strings
Pickup configuration:
HH
Bridge pickup:
Fishman Fluence Modern Humbucker Ceramic bridge (H) active / ceramic
Neck pickup:
Fishman Fluence Modern Humbucker Ceramic neck (H) active/ ceramic
Controls:
Single volume / 3-way toggle pickup selector / push-pull Fluence voicing on volumne / coil split toggle
Battery:
9V
Output jack:
¼" stereo barrel (side mounted)
String gauge (factory):
.010/.013/.017/.026/.036/.046 (D'Addario EXL110)
Factory tuning:
1D 2A 3F 4C 5G 6D (D std.)

Images[]

Additional details

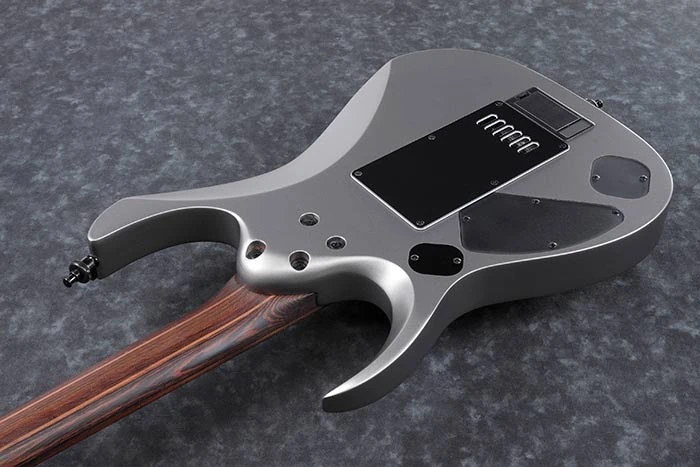

2021 RGD61ALET MGM 1P 01 back
Rear of body
HH 3-way-toggle coil-split-toggle
Pickup switching

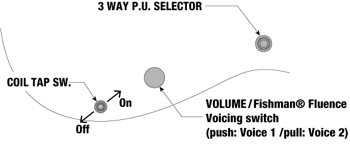

Controls V3 coil-split Fluence
Controls layout

Sources[]

  • RGD61ALET product page, Ibanez Europe, archived January 2020
  • RGD61ALET product page, Ibanez Asia & Africa, archived January 2021
  • RGD61ALET product page, Ibanez China, archived June 2022
  • RGD61ALET product page, Ibanez USA, archived January 2023
  • RGD61ALET product page, Ibanez Americas & Oceania, archived January 2024
