2019 RGD61AL SSB 1P 01

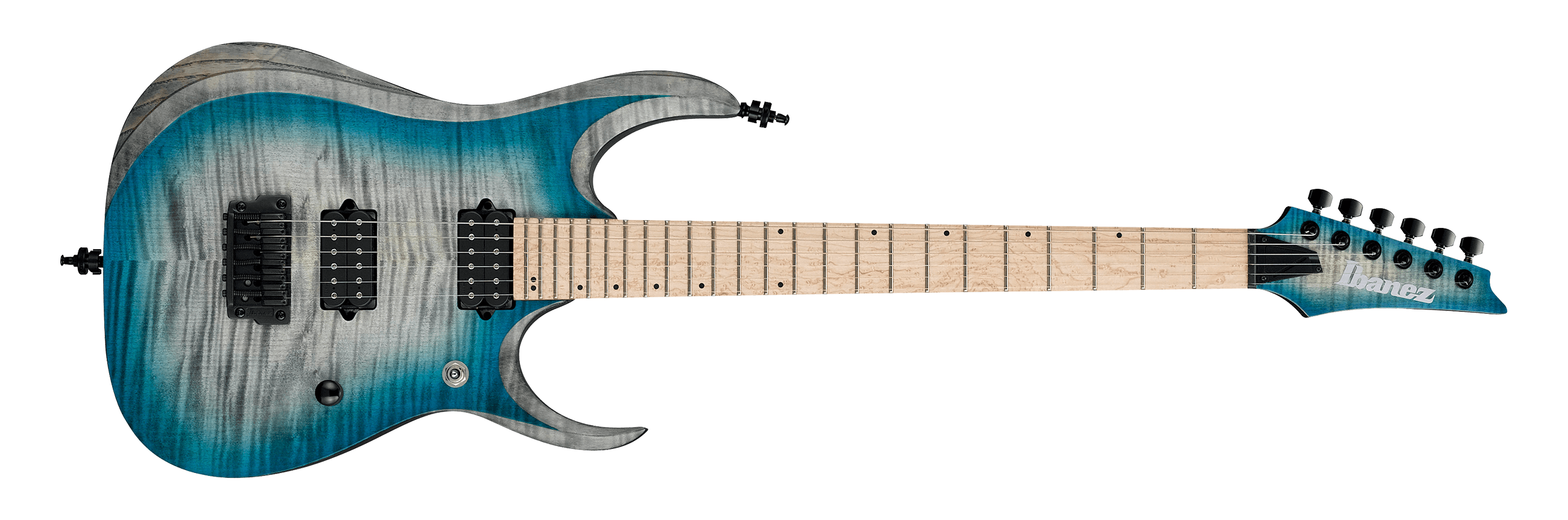

RGD61AL Stained Sapphire Blue Burst Red copyright sprite

The RGD61AL is an RGD series solid body electric guitar model introduced by Ibanez in 2019. It was produced in Indonesia as part of the metal focused Axion Label line.

The RGD series guitars have a body based on the RG series but with special bevels and deep scoop cuts in the horns. They also have extra long 26½" scale necks.

The RGD61AL features a 5mm thick flamed maple top on a layered ash body bolted to a panga panga and walnut neck with a birdseye maple fingerboard with 24 Sub Zero treated frets and black step offset dot position markers. Components include a pair of DiMarzio Fusion Edge humbuckers, a Gibraltar Standard II fixed bridge, Gotoh locking tuning machines and Schaller S-Lock strap lock pins. It also has luminescent side dots and Ibanez headstock logo.

The RGD71AL is a similar seven string model with a Macassar ebony fretboard. The RGD61ALA is a similar model with Fishman Fluence active pickups and without the flamed maple top. The RGD61ALET is a related model with a maple-topped nyatoh body, Fishman Fluence pickups and an Evertune bridge. The RGD61ALMS is a related model with a multi-scale neck.

The RGD61AL was discontinued after 2020.

Specifications[]

Related content: Axion Label series | RGD series | RG series | Models-icon
Specifications for RGD61AL
Model name: RGD61AL
Year(s) offered: 2019–2020
Sold in: Americas & Oceania / Asia & Africa / China / Europe / Japan / USA
Made in: Indonesia
Finish(es): Stained Sapphire Blue Burst (SBB)
Body
Body type:
Solid body
Body material:
Layered ash w/ 5mm flamed maple top
Neck joint:
AANJ
Bridge:
Gibraltar Standard II fixed (10.8mm string spacing)
Strap buttons:
Schaller S-Lock
Knob style:
Knurled metal dome
Hardware color:
Black
Neck
Neck type:
Nitro Wizard RGD
Neck material:
5-piece panga panga/ walnut
Scale length:
673.5mm/ 26½"
Fingerboard material:
Birdseye maple
Fingerboard inlays:
Black step offset dot
Luminescent side dots
Frets:
24 / jumbo Sub Zero treated
Nut:
Black plastic (43mm)
Machine heads:
Gotoh SG381 MG-T locking
Electronics/ Strings
Pickup configuration:
HH
Bridge pickup:
DiMarzio Fusion Edge (H) passive/ ceramic
Neck pickup:
DiMarzio Fusion Edge (H) passive/ ceramic
Controls:
Single volume / 3-way toggle pickup selector
Output jack:
¼" stereo barrel (side mounted)
String gauge (factory):
.010/.013/.017/.026/.036/.046 (D'Addario EXL110)
Factory tuning:
1D 2A 3F 4C 5G 6D (D std.)

Images[]

Additional details
HH 3-way toggle
Pickup switching diagram
Controls V3 RGD
Control layout

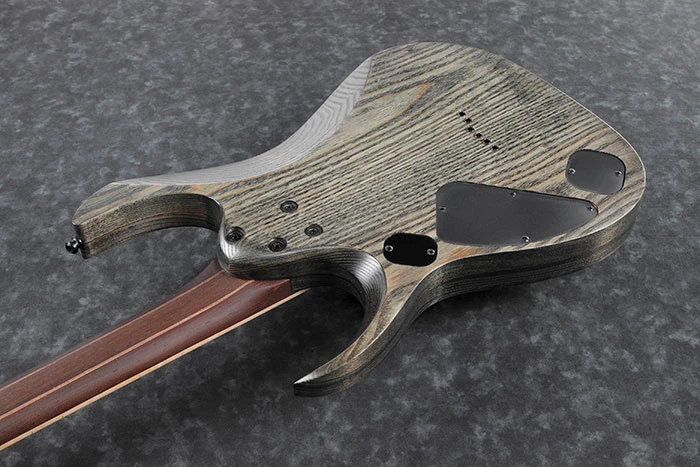

2020 RGD61AL SSB 1P 01 back
Rear of body
