For the similar 2010 model with the Edge III tremolo, see RGD320.
RGD320Z BK
RGD320Z Black (more images) Red copyright sprite

The RGD320Z is an RGD series solid body electric guitar model introduced by Ibanez in 2011. It replaced the RGD320, which is similar except for the tremolo. In the USA, this model was referred to as the RGD320; the Z suffix was ignored for some models in promotional material in that market. It was made in Indonesia.

The RGD320Z features the new Edge Zero II double locking tremolo bridge with removable ZPS3Fe tuning stabilizer. Other features include a basswood body bolted to an extended scale 26.5" maple Wizard III neck with a rosewood fingerboard with special Ibanez checkmark position markers. Pickups are a pair of Ibanez humbuckers specially equipped for down tuning.

The RGD7320Z is a similar seven string model.

The RGD320Z was offered only in 2011.

Specifications[]

Related content: RGD series | RG series | Models-icon
Specifications for RGD320Z / RGD320
Model name: RGD320Z / RGD320
Year(s) offered: 2011
Sold in: Worldwide (except Japan)
Made in: Indonesia
Finish(es): Black (BK) / Metallic Gray Sunburst (MGS) / White (WH)
Body
Body type:
Solid body
Body material:
Basswood
Neck joint:
AANJ
Bridge:
Edge Zero II tremolo w/ ZPS3Fe stabilizer
Knob style:
Knurled metal dome
Hardware color:
Black
Neck
Neck type:
Wizard III
Neck material:
3-piece maple
Scale length:
673.5mm/ 26½"
Fingerboard material:
Rosewood
Fingerboard inlays:
V Marks
Frets:
24 / jumbo
Nut:
Locking (barless)
Machine heads:
Ibanez die-cast
Electronics
Pickup configuration:
HH
Bridge pickup:
Ibanez CAP-VK2 (H)
Neck pickup:
Ibanez CAP-VK1 (H)
Controls:
Master volume / master tone / 5-way lever pickup selector

Images[]

Additional finishes/ details

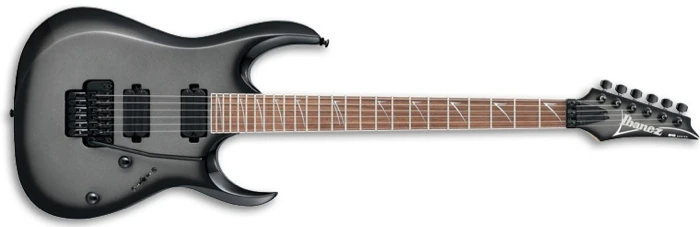

RGD320Z MGS
Metallic Gray Sunburst

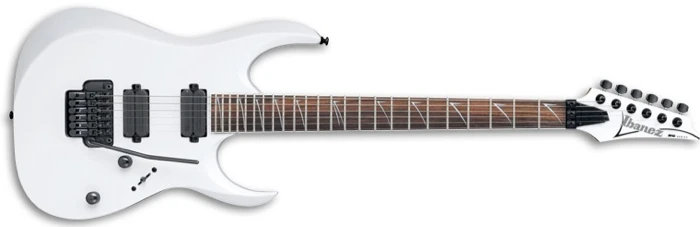

RGD320Z WH
White
HH 5-way parallel-neck
Pickup switching diagram
Controls VT5
Control layout
