For the similar 2011 model with the Edge Zero II tremolo, see RGD320Z.
RGD320 MGS

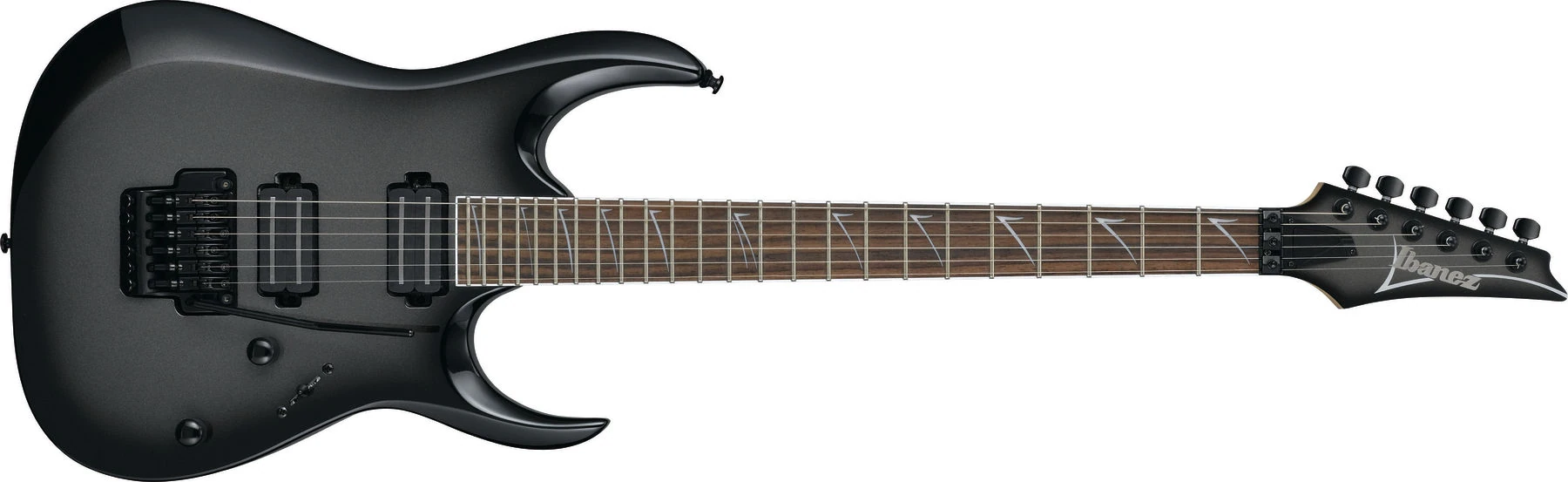

RGD320 Metallic Gray Sunburst (more images) Red copyright sprite

The RGD320 is an RGD series solid body electric guitar model introduced by Ibanez in 2010. The RGD series was new for 2010, and the RGD320 was the first non-Prestige RGD in the line.

Apart from the new RG-based shape with a beveled body cut and extra horn cut, the RGD320 features an extra long 26.5" scale neck. Other features include a basswood body and the Edge III double locking tremolo bridge. The two humbucking pickups are new versions of the VK1 and VK2 pickups previously featured on the 2007 Arondite series models.

For 2011, a hard-tail model based on the RGD320 was introduced as the RGD321. For 2011, the RGD320Z featuring the new Edge Zero II tremolo was introduced as a replacement.

Specifications

Specifications for RGD320
Model name: RGD320
Year(s) produced: 2010
Sold in: Worldwide
Made in: Indonesia
Finish(es): Metallic Gray Sunburst (MGS) / White (WH)
Body
Body type:
Solid body
Body material:
Basswood
Neck joint:
AANJ
Bridge:
Edge III tremolo
Knob style:
Knurled metal dome
Hardware color:
Black
Neck
Neck type:
Wizard II
Neck material:
3-piece maple
Scale length:
673.5mm/ 26½"
Fingerboard material:
Rosewood
Fingerboard inlays:
V Marks
Frets:
24 / jumbo
Nut:
Locking (barless)
Machine heads:
Ibanez die-cast
Electronics/ Strings
Pickup configuration:
HH
Bridge pickup:
Ibanez CAP-VK2 (H)
Neck pickup:
Ibanez CAP-VK1 (H)
Controls:
Master volume / master tone / 5-way lever
String gauge (factory):
.010–.046

Images

Additional details

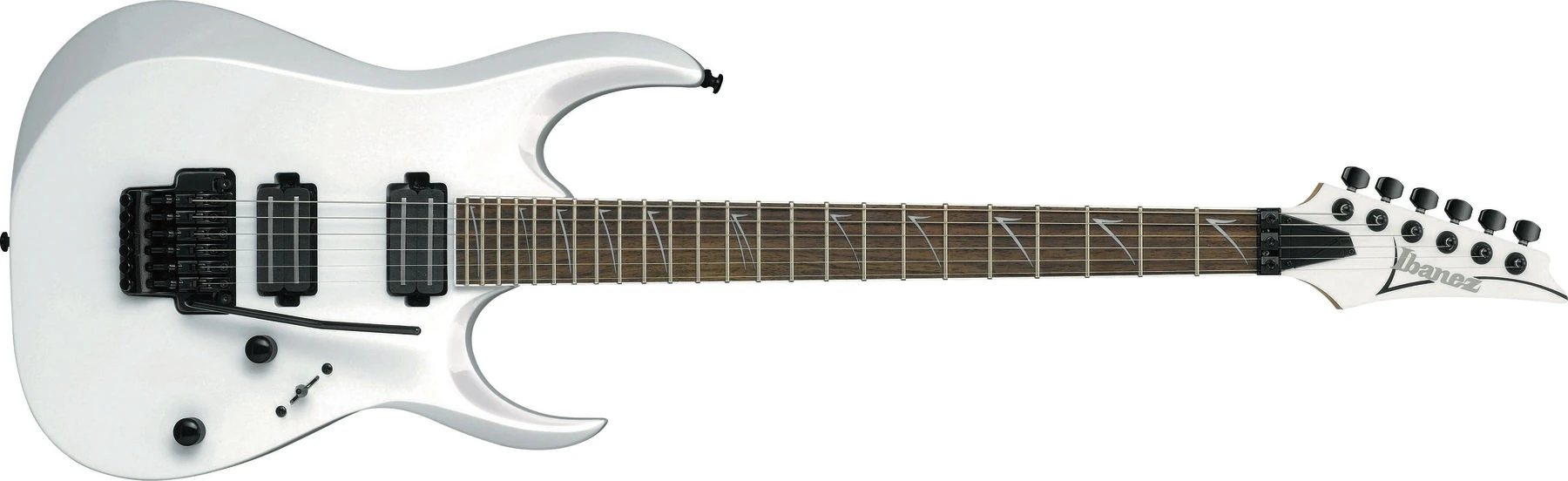

RGD320 WH
White
HH 5-way parallel-neck
Pickup switching diagram
Controls VT5
Control layout
